Plastic paper cup lid thermoforming machine

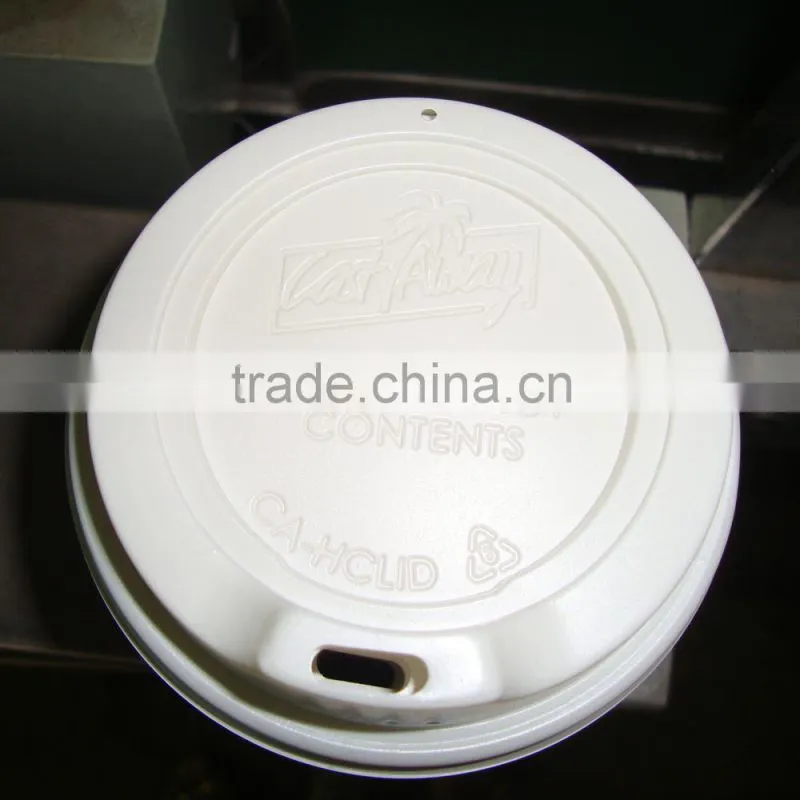

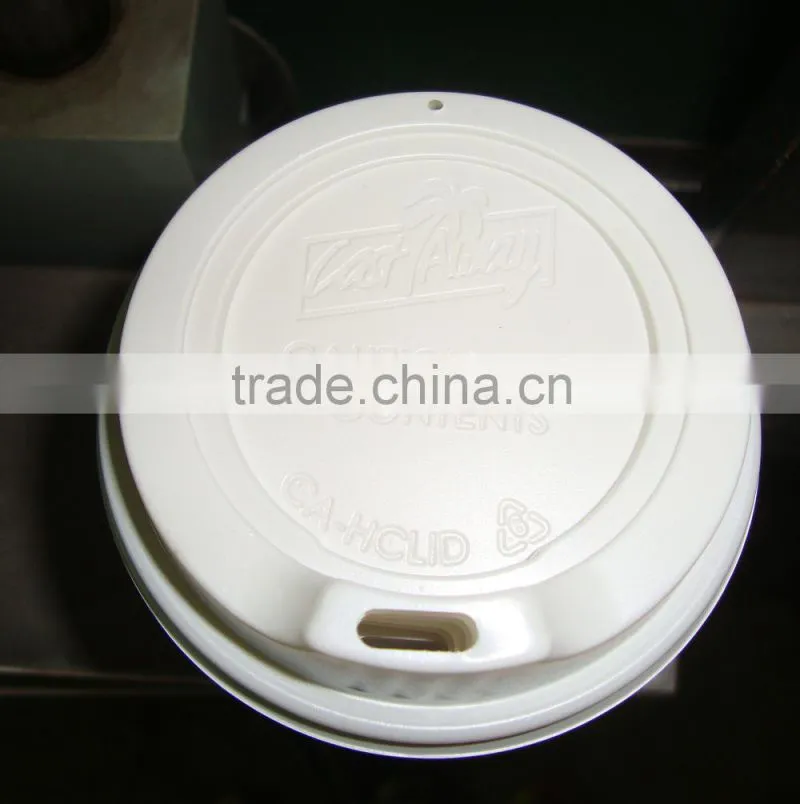

plastic paper cup lid thermforming machine can make about 30pcs lids one time.and one minute can make abouy 600pcs for 9 oz paper cup lid

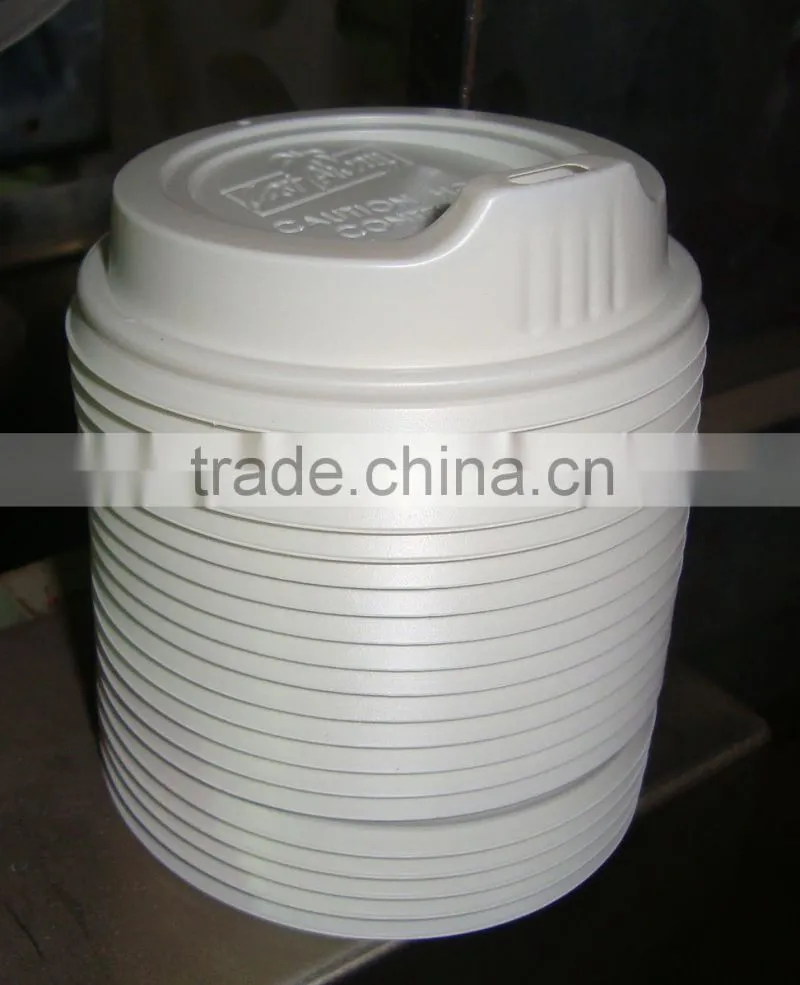

this machine is with heatering,forming,cutting ,punching and stacking in one machine,
it is not only make paper cup lids,but also can make diffrent shape lid for gelato containers,or bowls,portion cups,test cups and plates,and sandwish box,and lunch box,and susi box .
material request:PVC,PET,PP.PS.PC HDPE.;LDPE and more.
Special desing of my machines:
1. Heater adopts ceramic heating bricks.
2. Heater drives by cylinder to insure heater work fleetly and placidly.
3. The equipment with the safety and protection equipment.
4. Clamp unit, controlled by pneumatic solenoid valve. Clamping unit assembled synchronous unit for material pressing. This machine adopts iron clamp bracket, which can bear high temperature, avoid the clamp bracket metamorphosed and adjust width and length arbitrarily.
5. Complete vacuum system includes vacuum room, vacuum pump, vacuum storage gas pot, vacuum pipeline, adjustable air cleaner device and vacuum controlling unit.
6. Cooling system assemble air blower and spray gun. The spray gun could be adjusted according to different products making.
7. This machine controlled by PLC, touches screen control system and display and controls all the operation of equipment.
8. Automatic degassing before mold ejecting.
9. The front door is movable door; it’s convenient for changing mould.
1. Heater (controlled separately)
A. Heater separately: Set different temperature according material forming demand to insure product quality. Adjusted the voltage of heater by AC voltage meter which can insures the heater temperature steady and save power.
B. Change the heater units fleetly. And it is economical for maintain because it only need change part units.
2. Controlling the heater unit separately can short the heating time and economize energy and improve product quality and reduce cost.
3. Adjustable frame: The side size clamping is 20--50mm which can economize the material. And the total of economized material is a considerable amount.
4. Sheet sag control device: Prevented sheet sag after heating by pressure support system, and assembled photoelectric switch.
5. The machine with double heater, forming by vacuum and drove by pneumatic pressure system.
6. It is Suitable for forming ABS, PMMA/ABS, PMMA, PS, HIPS, PE, PP, PVC, PET plastic sheet which thickness within 8 mm.
7.Easy to change mold,it only needs 20mins. China siding panel forming machine
Plastic paper cup lid thermoforming machine
Main Technical Parameters:
Model: RHC6001100
Max. Forming Area: 500*1100mm
Max. Mold Height: 160mm
Power: Approx.224kw (Upper Oven) Approx.138kw (Lower Oven)
Power of vacuum pump motor: 6kw
Vacuum pump capacity: 200m3/h
Overall Dimensions: 11700*6400*5600mm
Weight: 18000kg

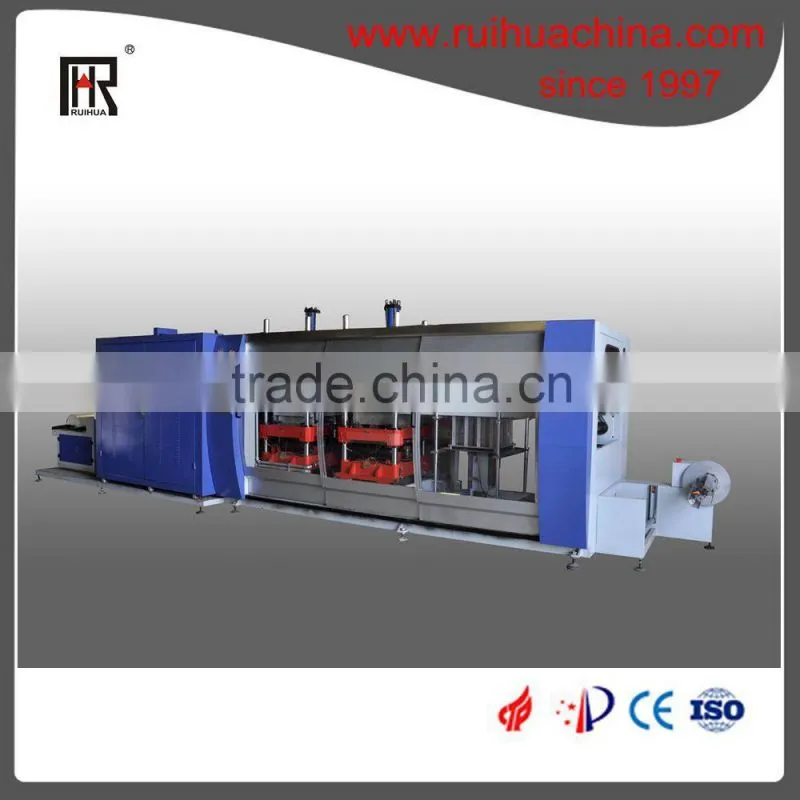

Machine photo
Ruian ruihua vacuum forming machinery co.,ltd located in Ruian city,Zhejiang,China.
our city is very near Shanghai,and it take one hour by air,take 5 hours by high speed train from Shanghai to Ruian.
more infomation in need,please visit our web
Contact person:Ms.Monica Zhang
A:Are you a trading company or manufacturer?
Q:We are a manufacturer,and we star thicker sheet vacuum forming machine making sing 1997
A:Where is your factory?
Q:Our factory located in lingsiyang Industrial Zone,Feiyun ,Ruian,Zhejiang,China
A:which country you did sale you machine?
Q:We sold our machine to America,Belgium,South Africa,Japna,India and home market.
