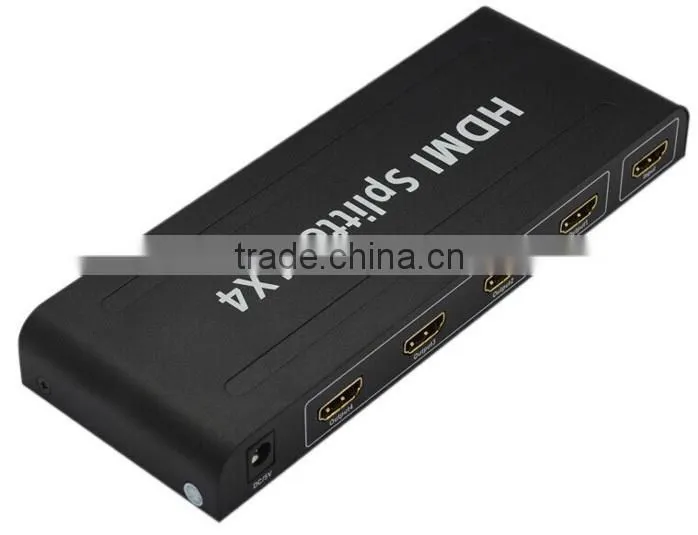

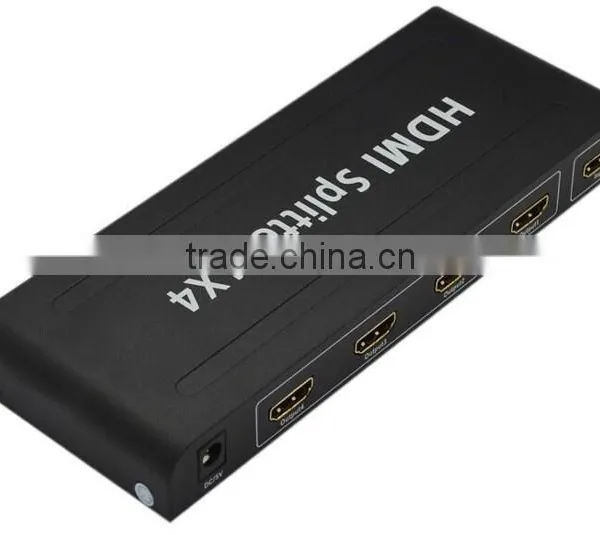

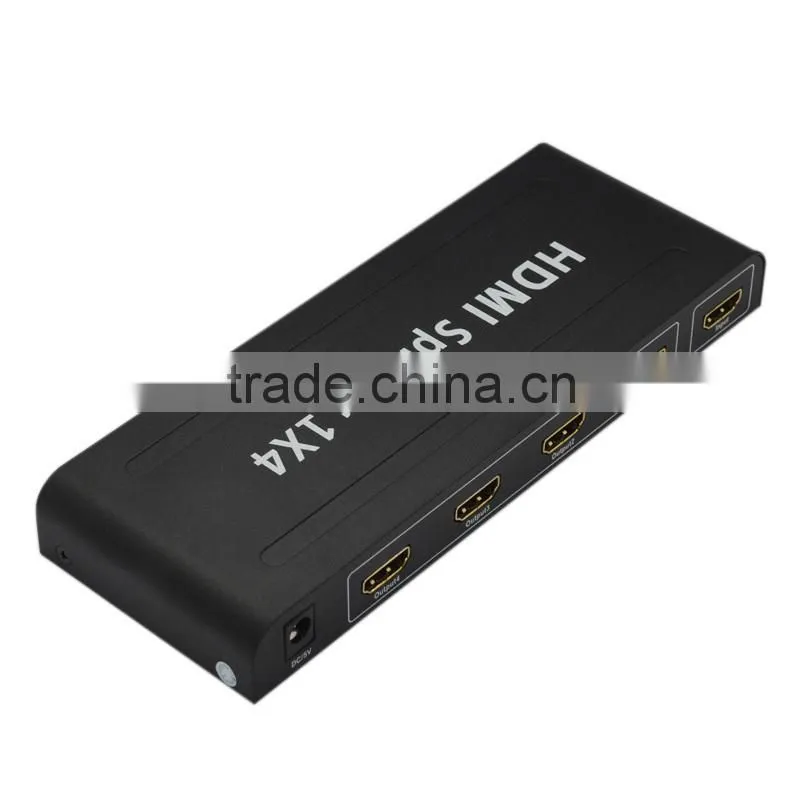

4way HDMI Splitter 1.4 for HDTV Support 4k*2k
US$ 5 - 9
MOQ: 1000 Pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Supply! 1 in 4 Out 4 Port Splitter Distributor Converter (HD Splitter 1in 4 Port for HDTV Support 4k*2k)US$ 7.9 - 8.5MOQ: 100 Pieces -
Best Price! Hdmi Splitter to Coaxial 1 in 4 Out 4Ports Splitter Distributor Converter (4way HD Splitter 1.4 for HDTV SupportUS$ 7.95 - 8.5MOQ: 100 Pieces
-
Good Quality 1x4HD Splitter 1 in 4 Out 4 Ports Hdmi Splitter to CoaxialUS$ 7.96 - 9MOQ: 100 Pieces
-
China Origin Best Portable 1x2HD Splitter 1 in 2 Out 3 Ports Hdmi Splitter to CoaxialUS$ 5.66 - 6.5MOQ: 100 Pieces
-
New Portable 1x4HD Splitter3 in 1Out 4 Ports Hdmi Splitter to CoaxialUS$ 1.75 - 2.5MOQ: 100 Pieces
Model Number
CZH-H012
1*4 HDMI splitter
The 1x4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
- One HDMI 1.3b input signal split to eight HDMI 1.4v sink devices
- HDCP 1.3 protocol compliant
- Support CEC
- Support deep color 30bit, 36bit,48bit
- Support Blue-Ray 24/50/60fs/120/fs HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support signal retiming
- Support input up to 15metres AWG26 HDMI 1.34standard cable length, output up to 25metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC5V/4A power supply
SPECIFICATIONS
- HDMI version: HDMI 1.4
- HDCP version: HDCP1.3
- HDMI resolution : 24/50/60fs/120/fs 4kx2k1080p/1080i/720p/576p/576i/480p/480i
- Support video color format : 24bit/deep color 30bit,36bit,48bit
- Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Max bandwidth: 334MHz
- Max baud rate: 10.2Gbps
- Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal : 5Volts p-p (TTL)
- Input cable distance: ≤15m AWG26 HDMI 1.4 standard cable
- Output cable distance: ≤25m AWG26 HDMI 1.4 standard cable
- Max working current : 1.4A
- Power adapter format..Input: AC (50HZ, 60HZ) :100V-240V; Output: DC5V/3A
- Operating Temperature range: (-15 to +55℃)
- Operating Humidity range: 5 to 90%RH (No Condensation)
Operating and Connecting
- Connect one cable from HDMI source devices into HDMI Splitter input.
- Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
- Connect 5V power supply to the HDMI 1x4 Splitter.
Package including
1 * HDMI Splitter
1 * User Manual
Notes
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
- The machine should be placed at the spot far from the Damp, HighTemperature, Dusty, Erosive, and oxidative environment.
- All parts will be free from the strong shake, hit, fall.
- Touching the power adaptor with the wet hands is prohibited.
- Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
- Pls turn the power off when the machines is not used for long time.
- Pls do not open the cover and do not touch the inside parts.
- Pls use the original factory power adptor.
