Help Center2200W Dual 12 Inch 3-way Passive Line Array Sound System L312
Related Products
-
Dual 10 Inch Line Array Speaker Box Q1 Line Array SystemUS$ 280 - 350MOQ: 1 Piece -
Line Array Speakers Q1 Line Array Speaker Stand 600 Watt SpeakersUS$ 115 - 330MOQ: 1 Piece
-
2015 Hot Sale Dual 10 Inch 2-way Passive Line Array Speakers for Outdoor Concert Meeting Party L210US$ 340 - 390MOQ: 1 Piece
-
932 Line Array Speakers Professional Dual 12" Speaker Box for VrxUS$ 290 - 340MOQ: 1 Piece
-
2015 Hot Sale Dual 8 Inch 2-way Passive Line Array Speakers L208US$ 340 - 390MOQ: 1 Piece
2400W dual 12 inch 3-way passive line array speakers sound system
sound system; 3-way line array speakers; speaker box line array system
Model: sound system, L312
| Speaker Type | DUAL 12” 3-way Passive Speaker |
| Frequency Response | 45-18k Hz |
| Sensitivity (1W/1m) | 101dB/m |
| Nominal Impedance | 8Ωx2 16Ωx2 |
| Rated Power | 1200W |
| Peak Power | 2200W |
| Nominal Coverage | 90°x 12°(HxV) |
| Crossover | NC |
| Low / Mid Woofer | 12” 75mm VC x2, 8Ω(16Ω)x2 |
| HF Driver | 75mm VC 1.5” throat x 2.8Ω |
| Low / Mid Woofer | 450W x2, 4Ω(16Ω) |
| Mid Driver | 150W x2, 4Ω(16Ω) |
| Hi Power | 120W x2, 4Ω(16Ω) |
| SPL | 136dB (142dB peak) |
| Recommended AMP | 1350W ~ 2400W |
| Input Connector | 2xNL4R, Spekon, Link+1-1 |
| Cabinet Construction | 15mm layer plywood |
| Dimension (WxHxD) | 435 x 1150 x 505 mm |
| Weight | 49KGS |

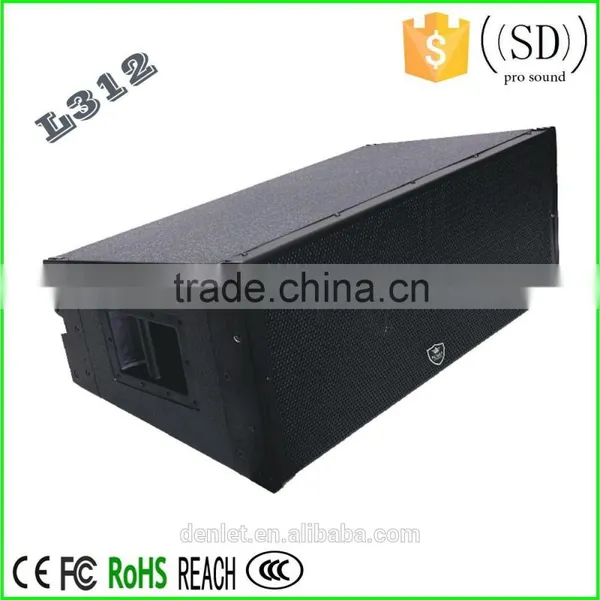

Picture of L312 sound system:
L-SERIES linear array speaker cabinet is trapezoidal structure, a unique way of hanging high density arrays can be used for placement, especially for a centralized system, pointing particularly strong, especially in the low frequency directivity there will be very greatly improved, greatly improved the sound field uniformity and clarity of the indicators.
L-SERIES linear array of speakers, from different angles since the abduction angle, far above components provide the required energy density listener States, while the lower seat assembly to close off the audience to achieve uniform coverage range, excluding the traditional flat Centralized horn sound field produced by an array of speakers interference.
L-SERIES linear array speaker components implemented in the whole band good acoustic coupling, so that the loss of interference generated by the speaker unit to minimize response to a combination of suspension from dual-component and a collection of far, L -SERIES line array to perform works to provide a more efficient and high-quality sound system, formed from near and far coverage solutions. L-SERIES linear array speaker cabinet is trapezoidal structure, a unique way of hanging high density arrays can be used for placement, especially for a centralized system, pointing particularly strong, especially in the low frequency directivity there will be very greatly improved, greatly improved the sound field uniformity and clarity of the indicators.
