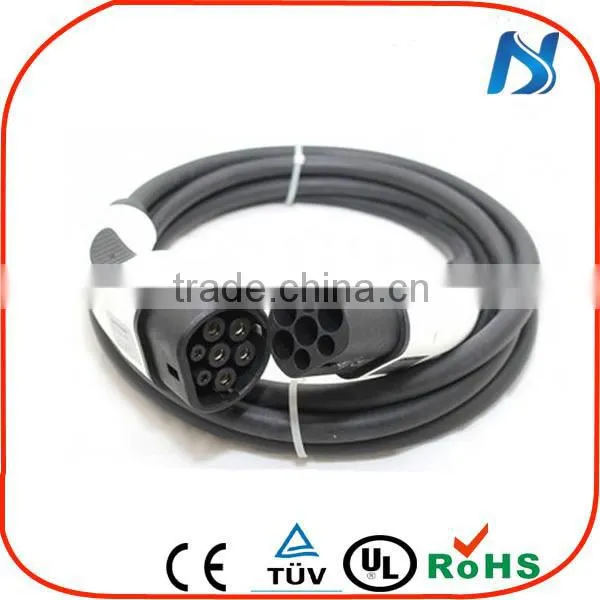

5m Single Phase cable ev charging cable type 1 -type 2
- 1000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card
Product Details
Brand Name: | KHONS, Khons EV Charging Cable | Model Number: | KHONS-EV16-70P | Warranty: | 1 Years |
Product Description
5m Single Phase cable ev charging cable type 1 -type 2
- Meet SAE J1772 2009 (Type 1) North American standard, UL Rated
- IP54 Rated Ergonomic Pistol Grip Style
- Impact Resistant ‘Run Over’ Proof
- 10,000 Mating Cycles
- Cable Strain Relief Feature
- Insulated Terminal Design
- Locking Feature for Padlock
- Dust Cap on Lanyard
- Custom Options on Cable Length and color
- CE & UL Approved
Parameters ( sae j1772 ac ev cable charge plug )
- Model: KHONS-EV16-70P
Type | KHONS-EV16-70P | Mating Force | ≤80N |
Colour | White | Mating Cycles | ≥10000 |
Rated Current | 16A/ 32A/ 70A | Flame Retardant | UL94 V-0 |
Rated Voltage | 500V | IP Rating | IP54 |
Test Voltage | 2000V | Operating Temperature | -30C to 60 C |
Insulation Resistance | 500MΩ | Cable Size | 13mm² - 2.5mm² |
Contact Resistance | 0.055±0.005Ω | Plug Material | PC/Copper Alloy |
| Series | Rated voltage | Rated current | Power | Cable size |
1 | KHONS-EV70P | 240V AC | 70 Amp | 16.8KW | 13mm² |
2 | KHONS-EV32P | 240V AC | 32 Amp | 7.6KW | 6mm² |
3 | KHONS-EV16P | 240V AC/120v AC | 16 Amp | 3.8KW | 2.5mm² |
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Detail pictures
Application
- Apply to vehicle
- Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf,
- Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton,
- Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...
- About KHONS:
- Chengdu Khons Technology Co., Ltd.
- We are dedicated in the electric car charger industry With Superior product quality,
- powerful factory support and valued foreign trade experience to Europe, America,South Africa, Southeast Asia, etc
- Our Advantage:
- 1.International approvals(UL,TUV,CE,ROHS)
- 2.Competitive price
- 3.Prompt Delivery time(7-10 days)
- 4.Guaranteed quality
- 5.OEM order is acceptable image
Looking for long term business relationship with you.
Here are some customer’s common questions about our sae j1772 ac ev cable charge plug :
1. What is your terms of payment?
We will recommend our customer to use different terms of payment based on difference in quantity of order.
Less than 1000 USD, generally sample order we could accept Paypal,west union,etc
More than 1000 USD, generally choose bank transfer or Alibaba
If you need the detailed terms of payment, pls contact us.
2. Do your products have quality certification?
All of our EV charging products posses with CE, TUV certifications, J1772 products posses with UL certification.
3. How do you deliver your goods to me? How long will it take?
We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight,
Ocean freight. the producing time of products will be varied from 7 days to 15 days due to the quantity of order,
the level of busyness in production line.
