Home > Products > J1772 EV charging > Newly design high performance Modern Cheapest type 1 charging cable 220v plug

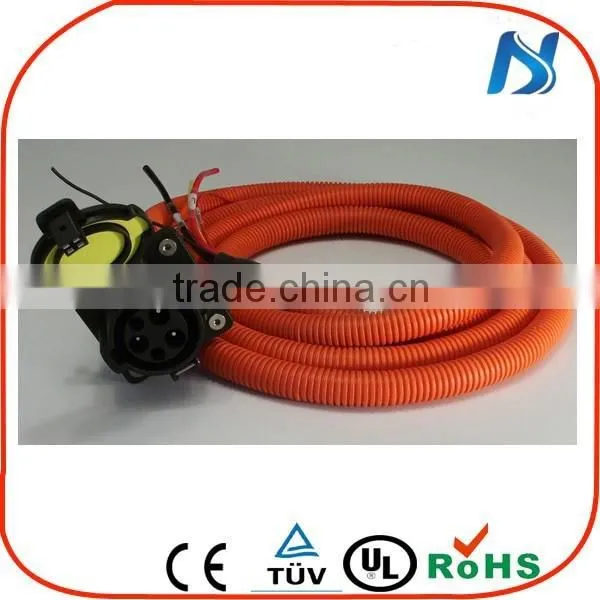

Newly design high performance Modern Cheapest type 1 charging cable 220v plug
- 4000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A PayPal
- 4holes RCA jack AV socket
- AV socket AV6 double-six-hole socket RCA jack video with metal
- Good quality single socket RCA as AV connector
- 4 holes jack socket RCA as AV connector
- Bluetooth 4.0 Wireless Anti lost alarm with Bluetooth Remote control for iPhone Samsung smartphone
- KDC-A04 Power Switch 4pin
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | khons | Model Number: | KHONS-EV-P-16 |
Type: | Electrical Plug | Grounding: | Standard Grounding | Rated Voltage: | 120V-240V AC |
Rated Current: | 8A/16A /32A, 16A/32A/70A | Application: | Industrial |
Product Description
Newly design high performance Modern Cheapest type 1 charging cable 220v plug
Product Features
1.Meet SAE J1772 standards;
2.Nice shape, hand-held ergonomic design, easy to use;
3.Protection class: IP54(in mated conditions);
4.Reliability of materials, nice appearance, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV
Electrical Performance
1.Rated current:16A/32A/70A;
2.Operating voltage: 120V-240V AC;
3.Insulation resistance:>1000MΩ(DC500V);
4.Terminal temperature rise:<50K;
5.Withstand voltage:2000V;
6.Contact impedance: 0.5mΩ Max
7.Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.
Mechanical properties
1.Mechanical life: no-load plug in/pull out >10000 times
2.coupled insertion force: 45N<F<80N;
3.Operating temperature: -30°C ~ +50°C
Materials
1.Shell material: Thermoplastic (Insulator inflammability UL94 V-0);
2.Contact Pin: Copper alloy, silver or nickel plating;
3.Sealing gasket: rubber or silicon rubber;
Product parameters | |||
Type | V3Khons-EV-S | Plug the power | ≤160N |
Color | Grey | Patch life | ≥10000 |
Rated Current | 16A/32A/70A | Fire rating | UL94 V-0 |
Rated Voltage | 120~240V | Waterproof rating | Cutoff:IP54,Charge:IP67
|
Resistance Voltage | 2000V | Operating Temperature | -30°Cto60°C |
Insulation resistance | >1000M(DC500V) | Cable Specifications | 2.5mm2 -13.3mm2 |
The main material | PC/Copper Alloy |
Charging Mode | |||||
Mode | Type | Rated voltage | Rated Current | AWG | Number of insert |
1 | V3Khons-EV16S | 120V/240V AC | 16A | 3*2.5mm2+2*0.5mm2 | 5 |
2 | V3-Khons-EV32S | 240V AC | 32A | 3*6mm2+2*0.5mm2 | 5 |
3 | V3-Khons-EV70S | 240V AC | 70A | 3*13.3mm2+2*0.5mm2 | 5 |
Remark | The length of the cable can be customized |
Detailed pictures
Application
Apply to vehicle
Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...
Shipment:FOB shanghai,by sea,by air.Fedex,TNT,DHL,UPS
Packaging Details: bubbles wrap over products.strong heavy carboard carton.
Production line
Main Service:
1 Type 1 & Type 2 Electrice Vehicle Charging plugs
2 Electric charging connectors;
3 EV portable charger;
4 Wall-mounted EV charging etc
About KHONS:
Chengdu Khons Technology Co., Ltd.
We are dedicated in the electric car charger industry With Superior product quality, powerful factory support and valued foreign trade experience to Europe, America,South Africa, Southeast Asia, etc
Our Advantage:
1.International approvals(UL,TUV,CE,ROHS)
2.Competitive price
3.Prompt Delivery time(7-10 days)
4.Guaranteed quality
5.OEM order is acceptable image
Looking for long term business relationship with you.
Contact Information
Chengdu Khons Technology Co., Ltd.
Skype: sira-khons
E-mail: sira-khons(at)
Tel: +86-13215734637/+86-28-83128852
QQ: 2239309555
Whatsapp/Wechat: +8613215734637
Trade manager: cn1510158314
Address: Room1-2-909, No.27,South Renmin Rd, Chengdu City,Sichuan Province,China
RFQ:
Here are some customer’s common questions about our sae j1772 ac ev cable charge plug :
1. What is your terms of payment?
We will recommend our customer to use different terms of payment based on difference in quantity of order.
Less than 1000 USD, generally sample order we could accept Paypal,west union,etc
More than 1000 USD, generally choose bank transfer or Alibaba
If you need the detailed terms of payment, pls contact us.
2. Do your products have quality certification?
All of our EV charging products posses with CE, TUV certifications, J1772 products posses with UL certification.
3. How do you deliver your goods to me? How long will it take?
We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 7 days to 15 days due to the quantity of order, the level of busyness in production line.
