Home > Lights & Lighting > LED Interior Lighting > LED Bulb Light > Aluminiium SMD2835 Led Lamp E14 220v 5W Led R50 Reflector Lamps

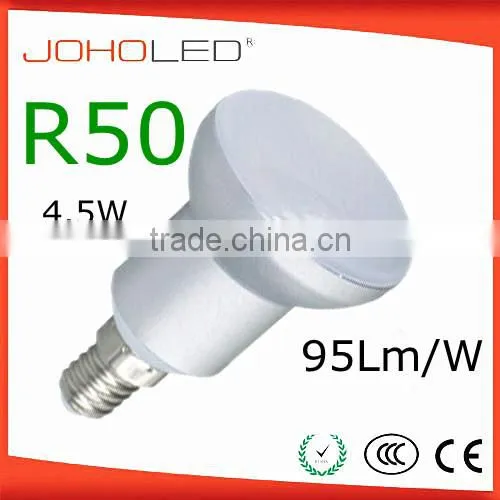

Aluminiium SMD2835 Led Lamp E14 220v 5W Led R50 Reflector Lamps

Aluminiium SMD2835 Led Lamp E14 220v 5W Led R50 Reflector Lamps thumbnail-1
Aluminiium SMD2835 Led Lamp E14 220v 5W Led R50 Reflector Lamps photo-1
US$ 2 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Type:
Other, bulb
Input Voltage(V):
AC100-240V
Contact Supplier Request Quote Chat Now
Shenzhen Joho LED Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar
Type Other, bulb
Input Voltage(V) AC100-240V
Lamp Power(W) 4.5
Lamp Luminous Flux(lm) 380
Lamp Luminous Efficiency(lm/w) 92
Color Temperature(CCT) Other, White/Warmwhite
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum
Certification BV, CE, EMC, FCC, LVD, VDE
Base Type E14
Place of Origin Guangdong, China
Brand Name OEM
Model Number R50 lamp

Specifications

r50 reflector lamps
1.5630 8leds,2835 25pcs
2.380lm 4.5W
3.D50mm*H87mm
4.CE,ROHS

SMD5630 2835  E14 5W  R50 reflector lamps



 Features of  r50 reflector lamp

1.8pcs SMD2835 LED as lighting source.

2.No glare, no noise,over CE.

3.Aluminium  material  housing with excellent heat conduction.

4.Life span up to 25,000hours, the LED efficiently protected by constant current power.

5.As a replacement of traditional bulb.

6.Environmental protection, no mercury and hazardous substances.

7.Widely used for indoor lighting, such as hotel, restaurant farm and home lighting, etc



 Electric parameter:  of r50 reflector lamps

Item Number :                                     R50-SMD08C

Power Consumption :                              4.5W±10%

Input Voltage :                                AC100-240V/50-60HZ

Input AC Current :                       0.066A @ AC100V/50HZ

                                                  0.030A @AC240V/50HZ

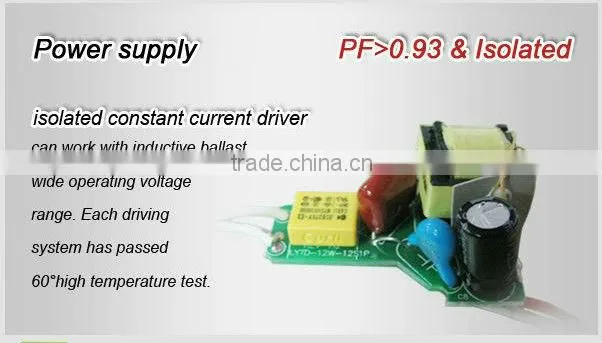

Drive Mode  :                                  Constant current  driver

Start Time   :                                           ≤500ms

Short Circuit Protection :                           Yes

Open Circuit Protection  :                           Yes

Reverse Polarity Protection (RPP)  :             Yes



 Structure parameters:  of  r50 reflector lamps

Lamp base:                                                E14

Lamp body type:                                   Led Bulb

Sheel Structure material:                  Aluminium lamp body

Net Weight/Lamp:                                   50g





R Series led bulb  of r50 reflector lamps



Modle Power   Led Source Lumen Input Voltage CRI Base
R39 2W SMD3528 30PCS 125Lm AC230V >75 E14
R50 4.5W SMD5630 8PCS 380Lm AC100V-240V >75 E14
R63 7W SMD5630 12PCS 610Lm AC100V-240V >75 E27
R80 8W SMD2835 45PCS 800Lm AC220V-240V >75 E27




Aluminiium SMD2835 led lamp e14 220v 5W led R50 reflector lamps

Demension  of  r50 reflector lamps

Aluminiium SMD2835 led lamp e14 220v 5W led R50 reflector lamps

Aluminiium SMD2835 led lamp e14 220v 5W led R50 reflector lamps Aluminiium SMD2835 led lamp e14 220v 5W led R50 reflector lamps

Application  of  220 volt led lights



Aluminiium SMD2835 led lamp e14 220v 5W led R50 reflector lamps

Packaging of  r50 reflector lamps



  1pc/gift box   70pcs/carton
  NW: 3.5 kg   GW: 5.0 kg

 Carton Size:41*31*27CM



  Engraving the logo on the lights and OEM color box with printed logo also available.



Delivery for led r50



   3-5 days for the samples, and 12-18 days for the mass order(depending on the quantity)



Warranty



    Most of our products are 2 yrs warranty.within the warranty, any question, pls call us.we will find the problem and solve it, replace with a new one.



About JOHOLED

Founded in : 2006

Employee: 230 staff, including 20 engineers, 17 QA, 146 technicians



Attended Trade Fair:



1.Guangzhou Fair , 15-19 October 2012   Booth :13.2 C02-03



2.HK International Lighting Fair,  27-30 October 2012  Booth :5E-D34



3.Lighting Japan,  16-18 January 2013   Booth :W9-58



4.Guangzhou International LED Fair,  1-4 March 2013   Booth :11.3-E11



5.HK International Lighting Fair(Spring Edition),  6-9 April 2013  Booth:  1D-E07,E09



6.Guangzhou International Lighting Exhibition,  9-12 June 2013   Booth: 11.3 A09



7.HK International Lighting Fair(Spring Edition),  6-9 April 2013  Booth:  1D-E07,E09



8.HK International Lighting Fair(Autumn Edition),  27-30 October 2013  Booth:  5E-G02



Waiting you at:



Brazil Sao Paulo EXPOLUX 24-28 April 2014
