Vacuum Rubber Gasket Cutting Machine/Rubber Ring Cutting Machine/Rubber Sleeve Cutting Machine

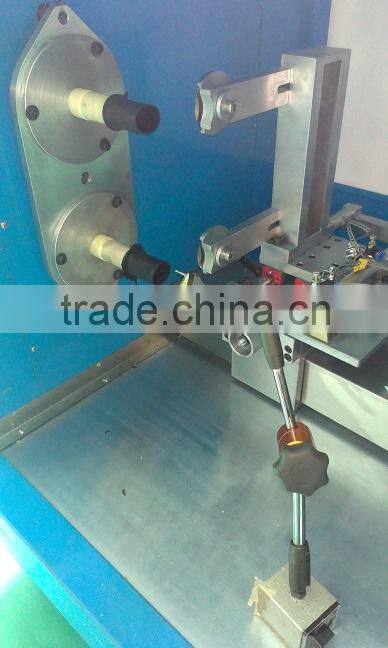

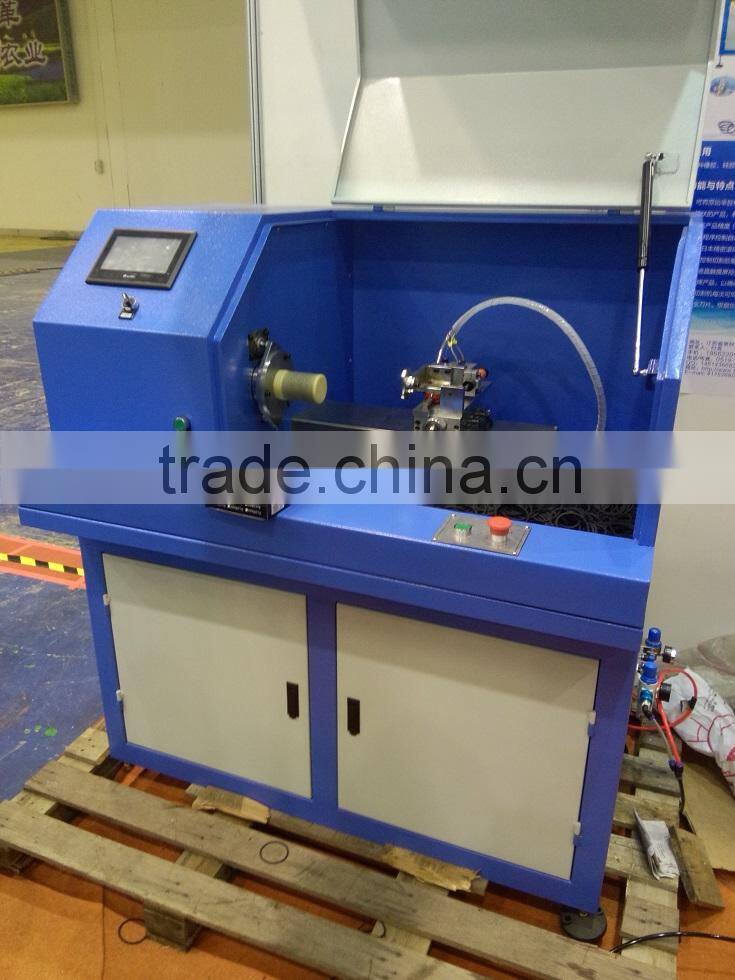

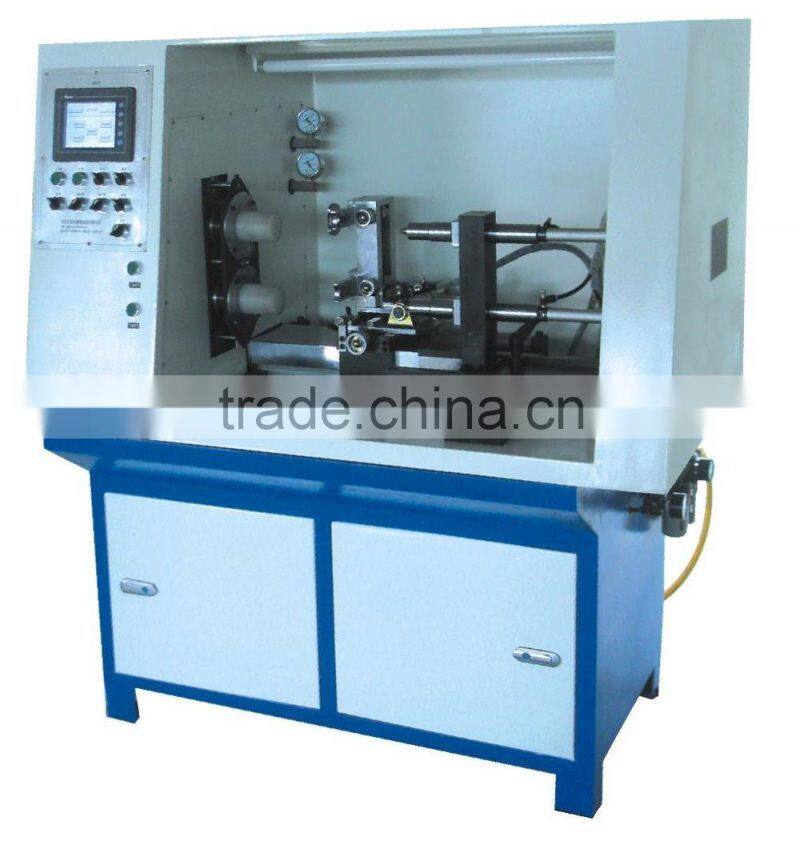

Vacuum Rubber Gasket Cutting Machine/Rubber Ring Cutting Machine/Rubber Sleeve Cutting Machine photo-1

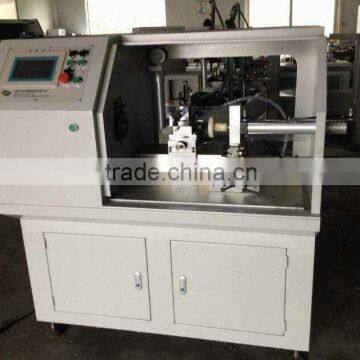

Vacuum Rubber Gasket Cutting Machine/Rubber Ring Cutting Machine/Rubber Sleeve Cutting Machine photo-2

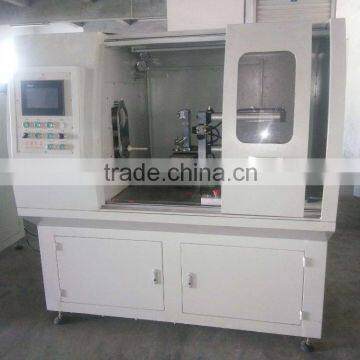

Vacuum Rubber Gasket Cutting Machine/Rubber Ring Cutting Machine/Rubber Sleeve Cutting Machine photo-3

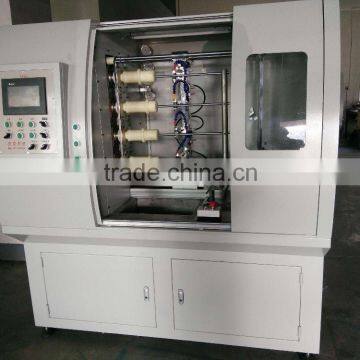

Vacuum Rubber Gasket Cutting Machine/Rubber Ring Cutting Machine/Rubber Sleeve Cutting Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
MIXER
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name MIXER
Model Number JCM200-1
Voltage 220V/380V
Power(W) 1.4KW
Dimension(L*W*H) 1200x800x1210mm
Weight 280kg
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Application:

Fast cut of all kinds of rubber, silicone gaskets/ washer, ring-shaped tubular products.

Features:

1. When the cut is finished, materials take off automatically, and through the collection boxes to gather the cut products.

2. Vacuum absorption of the cut product, so ensuring the finished product more precise.

3. Automatic air blowing function makes loading and unloading more convenient , greatly improve the product cutting efficiency;

4. Using color LCD touch screen control, operation is simple.

5. All electrical components, pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.

6.  According to customer requirements, choose to install a round blade or strip blade, ensuring cost saving on the blade.

7.There are single shaft ,double shafts,4 shafts for options.

Specification



Model

JCM200-1

JCM200-2

cutting efficiency

≥60 times /min

≥60 times /min

Working rotation speed

0-3000rpm

0-3000rpm

Cut precision

≤±0.05 mm

≤±0.05 mm

                 Cut range

(1)     Rubber diameter:10-150mm

(2)Cut length (standard): 140mm; Lengthened type 350

(3)Rubber wall thickness: 18mm

(2)     Rubber diameter:10-150mm

(2)Cut length (standard): 140mm; Lengthened type 350

(3)Rubber wall thickness: 20mm

Specification of blade

1.Round disc blade:60*25.4x0.3

2.Strip shape 3x3x60mm

1.Round disc blade:60*25.4x0.3

2.Strip shape 3x3x60mm

consumption of compressed air

20L/min

30L/min

           Air pressure

0.5Mpa-0.8Mpa

0.5Mpa-0.8Mpa

Vacuum degree

≤-0.035Mpa

≤-0.035Mpa

               Power source

AC220V±5%

AC220V±5%

               Total power

1.4 KW

3 KW

Total weight

280kg

550kg

Dimension

1200×800×1210mm

1600×900×1650mm

Finished Products

 Vacuum Rubber Gasket Cutting Machine/Rubber Ring Cutting Machine/Rubber Sleeve Cutting MachineVacuum Rubber Gasket Cutting Machine/Rubber Ring Cutting Machine/Rubber Sleeve Cutting Machine

Vacuum Rubber Gasket Cutting Machine/Rubber Ring Cutting Machine/Rubber Sleeve Cutting Machine
