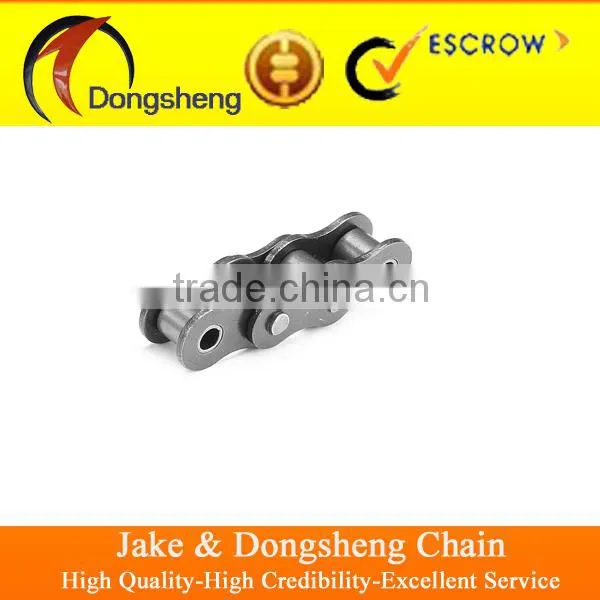

Rice Harvester Chains
US$ 0.1 - 500
MOQ: 100 Meters
Key Specifications
Get Latest Price
Use:
Harvesters
Place of Origin:
Zhejiang, China
Brand Name:
dongsheng, huangli
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rice Harvester ChainsUS$ 0.1 - 500MOQ: 100 Meters -
Agricultural Chain With Special Attachment for TransmissionUS$ 1.12 - 50.65MOQ: 500 Meters
-
All Kinds of Attachment Roller ChainUS$ 1.35 - 50.98MOQ: 500 Meters
-
S Type Steel Agricultural Chain S32US$ 1.35 - 50.98MOQ: 500 Meters
-
S Type Steel Agricultural Chain S55US$ 1.35 - 50.98MOQ: 500 Meters
Use
Harvesters
Place of Origin
Zhejiang, China
Brand Name
dongsheng, huangli
Model Number
A
Product Description
High quality alloy material ensure the harden of hole-making model, we change the model very often no matter whether the model attrite or not , so we can make sure the bright area of roller chain plate inner hole. Its known to all that good bright area of inner hole good for anti fatigue.
Our Dongsheng chains fit standard of ISO, ANSI, DIN, and JIS, its heat treatment is advanced and material is selected alloy steel. The products have been sold to the whole country and Europe, American, Middle-east and South-East Asia.
The Chain technic treatment is as below:
Shot peening
Bluing
Phosphating
Nickel-plated
Zincing
Heat treatment
Carburizing
Quenching
Tempering
Oiling
Greasing
| Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Tooth angle | Inner Plate depth | Piate thickness | Aver age tensile strength | Ultimate tensile strength | Type form | ||||
| Chain No. | P | d1 max | b1 min | d2 max | L max | L c max | a | h1 | h2 max | H | T max | Q min | Q0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | kn | kn | |||||
| 3318.5-B1.60-70 | 33 | 10.1 | 18.5 | 7.0 | 29.0 | 31.0 | 70 | 10 | 13 | 38 | 1.60 | 19.60 | 22.50 | B |
| 3325-B2.03-90 | 33 | 10.1 | 25.0 | 7.0 | 37.0 | 39.5 | 90 | 10 | 13 | 38 | 2.03 | 19.60 | 24.00 | B |
| 3325-B1.70-70 | 33 | 10.1 | 25.0 | 7.0 | 35.6 | 37.6 | 70 | 10 | 13 | 38 | 1.70 | 19.60 | 22.50 | B |
| 3325-B2.0/1.6-70 | 33 | 10.1 | 25.0 | 7.0 | 36.8 | 39.0 | 70 | 10 | 13 | 38 | 2.0/1.6 | 19.60 | 23.00 | B |
| 3325-B2.0/1.6-90 | 33 | 10.1 | 25.0 | 7.0 | 36.8 | 39.0 | 90 | 10 | 13 | 38 | 2.0/1.6 | 19.60 | 23.00 | B |
| 3325-A1.6-60 | 33 | 10.1 | 25.0 | 7.0 | 35.5 | 37.7 | 60 | 10 | 13 | 43 | 1.60 | 19.60 | 22.50 | A |
| 3325-A1.6-90 | 33 | 10.1 | 25.0 | 7.0 | 35.5 | 37.7 | 90 | 10 | 13 | 38 | 1.60 | 19.60 | 22.50 | A |
| 3325-A1.6-70 | 33 | 10.1 | 25.0 | 7.0 | 35.5 | 37.7 | 70 | 10 | 13 | 38 | 1.60 | 19.60 | 22.50 | A |
| 3330-B1.7-60 | 33 | 10.1 | 30.0 | 7.0 | 40.3 | 42.7 | 60 | 10 | 13 | 43 | 1.70 | 19.60 | 22.50 | B |
| 3330-B1.7-70 | 33 | 10.1 | 30.0 | 7.0 | 40.5 | 42.8 | 70 | 10 | 13 | 38 | 1.60 | 19.60 | 22.50 | A |
| 3330-A1.6-60 | 33 | 10.1 | 30.0 | 7.0 | 40.5 | 42.8 | 60 | 10 | 13 | 43 | 1.60 | 19.60 | 22.50 | A |
| 3340-B2.0/1.6-70 | 33 | 10.1 | 40.0 | 7.0 | 51.8 | 54.0 | 70 | 10 | 13 | 38 | 2.0/1.6 | 19.60 | 23.00 | B |
| 3340-B1.6/1.2-90 | 33 | 10.1 | 40.0 | 7.0 | 49.2 | 52.5 | 90 | 10 | 13 | 38 | 1.6/1.2 | 19.60 | 22.00 | A |
| 3350-B1.6-70 | 33 | 10.1 | 50.0 | 7.0 | 60.2 | 62.5 | 70 | 18 | 10 | 43 | 1.60 | 19.60 | 22.50 | A |
| 3358-B1.6-90 | 33 | 10.1 | 58.0 | 7.0 | 72.2 | 72.2 | 90 | 18 | 10 | 38 | 1.60 | 19.60 | 22.50 | B |
| 3540-B1.6-70I | 35 | 10.1 | 40.0 | 7.0 | 52.5 | 52.2 | 70 | 18 | 10 | 43 | 1.60 | 19.60 | 22.50 | B |
| 3540-B1.6-70II | 35 | 10.1 | 40.0 | 7.0 | 52.5 | 52.5 | 70 | 18 | 10 | 35 | 1.60 | 19.60 | 22.50 | B |
| 3558-B2.03-90 | 35 | 13.2 | 58.0 | 9.4 | 70.0 | 72.3 | 90 | 15 | 18 | 47 | 2.03 | 22.54 | 27.10 | B |
