Uchen 50A 175A 350A power connector battery connector two pole power connectors
- 2000 Piece / Pieces per Month
- shanghai/chengdu
- Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | electric connector | Model Number: | power connector |
Type: | DIN | Application: | Power | Gender: | Other |
Product Description
Product Features
Rating Current:50/175/350A
Rating Voltage:600V
Specification:
1.Silver-plated contact
2.Different contact barrel size for choice(10/12AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG,2/0AWG,3/0AWG,4/0AWG e.g.)
to reduce the stocking
4.Difference color recommended different voltage code
5.Quick connect/disconnect
6.Operating temperature: -20°C ~ +105°C
7.Withstand voltage:2200V
8.Mechanical life: 10000 times
Standards
ISO International International Standardization Organization
UL USA U.S. safety standard certification
ROHS EU Restriction of Hazardous Substances
| SC50 | SC175 | SC350 |
UL Rating Voltage | 50amps/600vdc | 175amps/600vdc | 350amps/600vdc |
Rating Current | 50amps on 6awg wire produces 30°C rise | 175amps on 1/0awg wire produces 30°C rise | 350amps on 750mcm wire produces 35°C rise |
Maximum Wire Insulation Diameter | 0.44"/11mm | 0.75"/19mm | 1.10"/28mm |
average terminal holding force | About 50lbs | About 300lbs | About 500lbs |
average contact resistance | With 11/4" (32mm) of 6awg wire 200 micro-ohms | With 13/4" (45mm) of 1/0awg wire 100 micro-ohms | With 21/2" (64mm) of 300mcm wire 50 micro-ohms |
average insertion force | 15lbs (6.75kg) | 25lbs (11.25kg) | 30lbs (13.50kg) |
Adapt type : SC50/175/350
Our Advantage:
1.The products series completely,from multi pole to single pole,from low amps to high amps

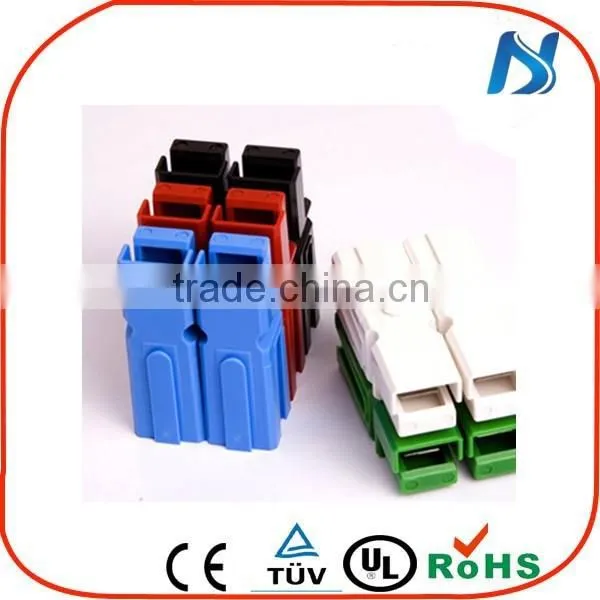

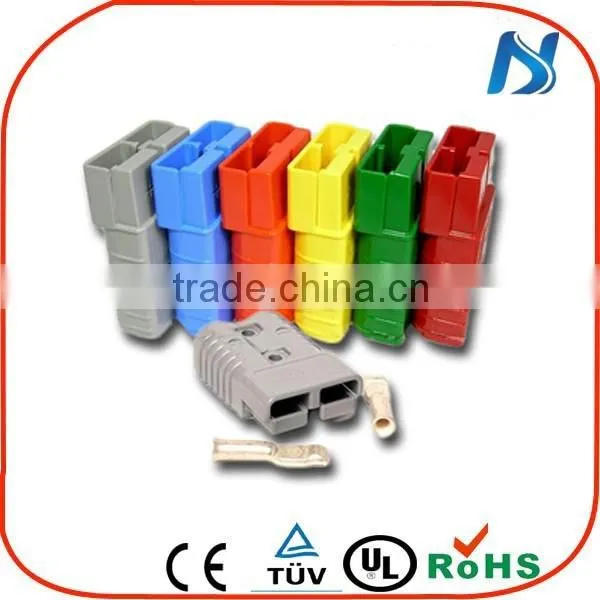

2.Different color housing is available
3.Different contact barrel size for choice
4.International approvals(UL,CE,ROHS)
5.Competitive price
6.Prompt Delivery time(7-10 days)
7.Guaranteed quality
8.OEM order is acceptable

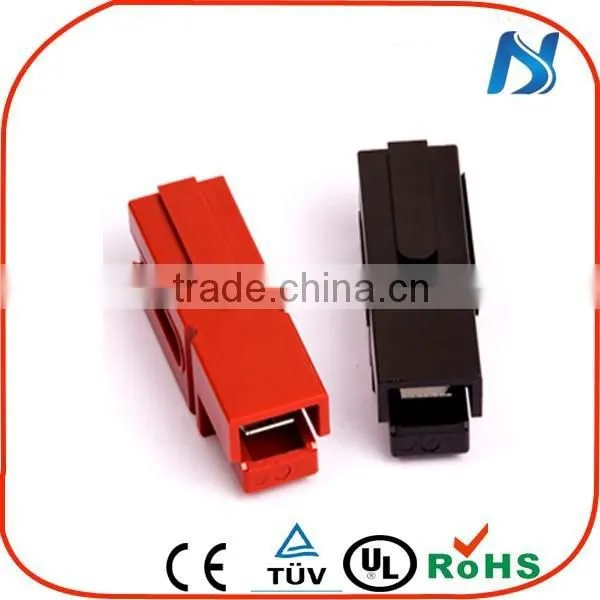

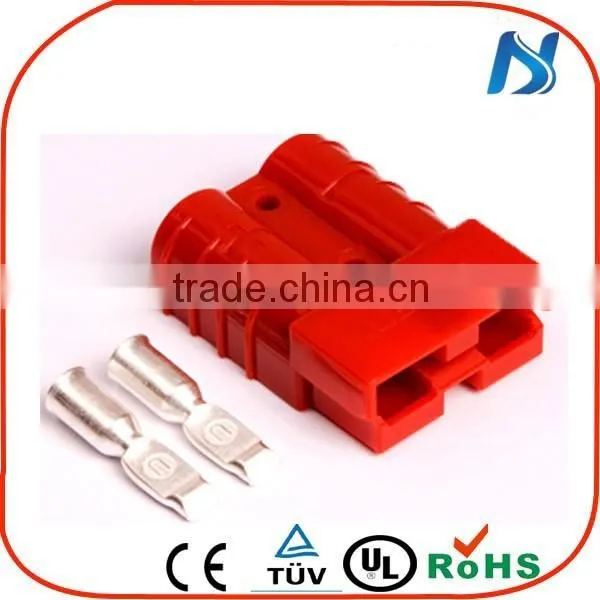

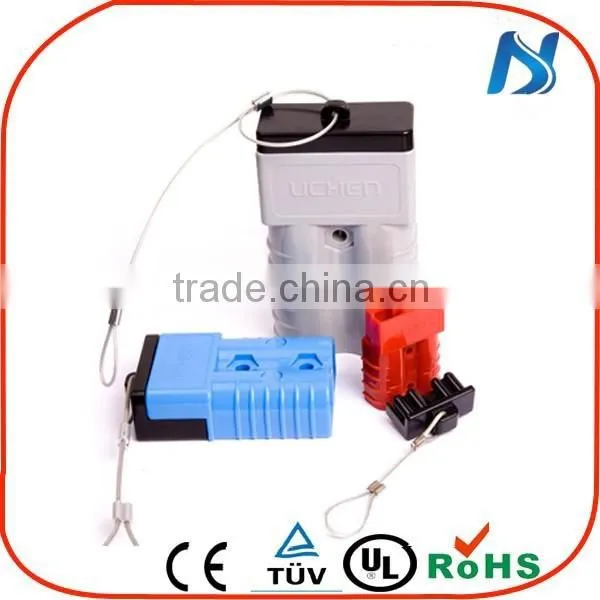

Detailed pictures

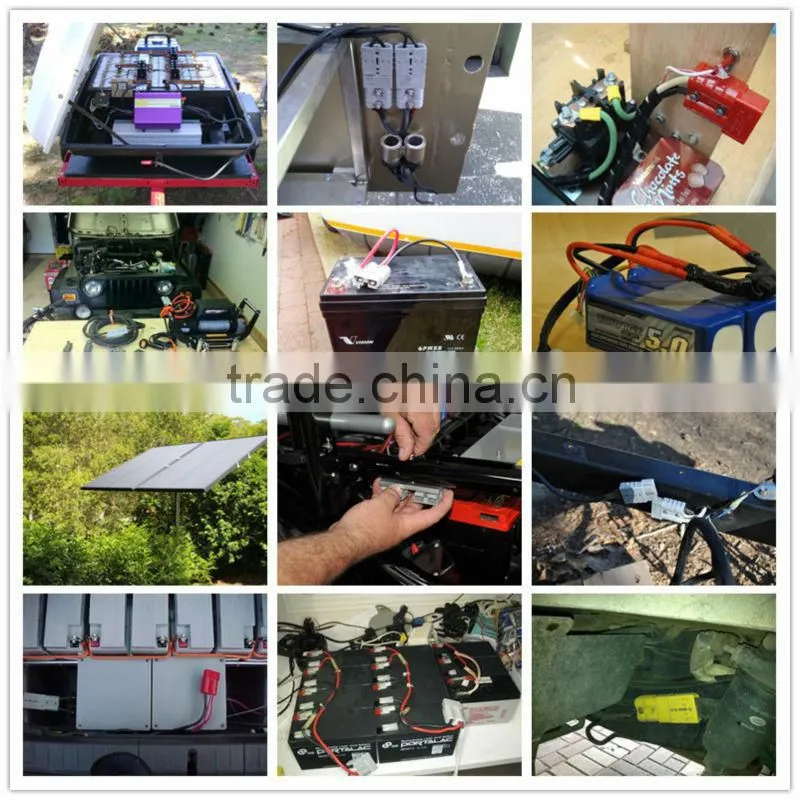

Installation

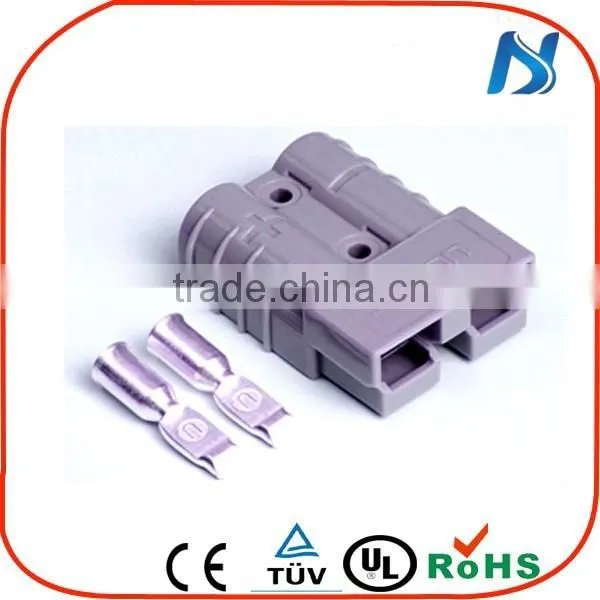

Terminal Size
Packing and shipping
Shipment:FOB shanghai,by sea,by air.Fedex,TNT,DHL,UPS
Packaging Details: bubbles wrap over products.strong heavy carboard carton.
About us
Chengdu Khons Technology Co., Ltd.
We are dedicated in the electric car charger industry With Superior product quality,
powerful factory support and valued foreign trade experience to Europe, America,
South Africa, Southeast Asia, etc
Chengdu Khons Technology Co., Ltd. |
Skype: josie09w(at) |
E-mail: sales09(at) |
Tel: +86-182 8031 0759/+86-28-83128852 |
Whatsapp/Wechat: +8618280310759 |
Trade manager: cn1518049363wmdw |
Website: |
Address: Room1-2-909, No.27,South Renmin Rd, Chengdu City,Sichuan Province,China |
