Magnetic Strip Extrusion Machine for Refrigerator Door Gasket ON SALE With GOOD PRICE
US$ 1 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
MIXER
Model Number:
MD-60
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
the Window Seal Extruder/rubber Gasket Extruder MachineUS$ 1 - 99,999MOQ: 1 Set -
Calendered Magnetic Sheets/magnetic CalendersUS$ 1 - 99,999MOQ: 1 Set
-
Refrigerator Gasket Extrusion Machine/refrigerator Gasket Extrusion Line/refrigerator Door Gasket Extrusion MachineUS$ 1 - 99,999MOQ: 1 Set
-
Door Gasket Extrusion Line/gasket Making Machine/magnetic Refrigerator Door GasketUS$ 1 - 99,999MOQ: 1 Set
-
Door Gasket Extrusion Machine/magnet Gasket Extrusion Line/refrigerator Gasket Welding MachineUS$ 1 - 99,999MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
MIXER
Model Number
MD-60
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

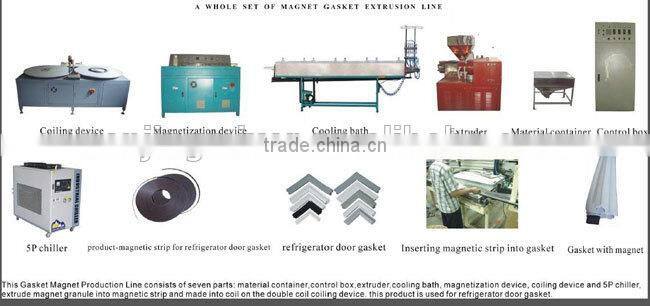

Refrigerator Magnet Door Strip Extruder Machine Line/refrigerator door strip extrusion line/ Magnetic Strip Extrusion machine for refrigerator door gasket :
This magnet strip extruder line for producing magnetic strip used as refrigerator door gasket. The machine is newly designed, easy to maintain, it has suitable structure, work reliable. The production is automatic, productivity, and high quality, especially, the new machine is equipped with double roll machine and magnetizing system. By this machine, 10,000m2 magnetic strip (section 9x2mm2) can be produced per day. The production process is entirely automatic, extruding, magnetizing and rolling can be done at the same time.
Specification
No. | Technical parameters: | |
1 | Screw diameter | Ø60mm |
2 | Barrel material | Alloy steel |
3 | Length/Diameter | 9 |
4 | Compression ratio | 1.7 |
5 | Screw speed | 0-24 r/min |
6 | Extruder motor power | 15kw |
7 | Pulling motor power | 0.55kw |
8 | Coiling motor power | 0.37kw |
9 | Material hopper stirring power | 0.37 |
10 | Heating power | 2.9kw |
11 | Water displacement | 1.8m3/h |
12 | Cooling bath length | 3 m |
13 | screw barrel temperature under normal working condition | 20-30℃ |
14 | Installed gross capacity | 25kw |
15 | Magnetize capacitance | 6000UF |
16 | Magnetizing Voltage | 500V |
17 | Magnetizing power | 5KW |
18 | Normal extrusion capacity | 6-10m/min |
19 | Magnetizing strength | 600--700 GS |
20 | Water chiller power | 5 HP |
21 | Weight | 3000 kgs approx. |
