Hot Sale Vacuum Rubber Platen Vulcanizing Press/Machine
US$ 1 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
MIXER
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Rubber Plate Curing Press/Rubber Vacuum Hot Press/ Rubber Compression PressUS$ 1 - 99,999MOQ: 1 Set -
Rubber Vacuum Compression Molding Machine/ Curing PressUS$ 1 - 99,999MOQ: 1 Set
-
Rubber Injection Molding(moulding) Press/machine SiliconeUS$ 1 - 99,999MOQ: 1 Set
-
Rubber Injection Press/Rubber Injection Moulding Machine/Rubber Injection Curing PressUS$ 1 - 99,999MOQ: 1 Set
-
Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing MachineUS$ 1 - 99,999MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
MIXER
Model Number
YH-HV250T-2
Voltage
220V/380V/415V/440V/480V
Power(W)
11KW
Dimension(L*W*H)
3650x1800x3090
Weight
11000 KG
Certification
CE,ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

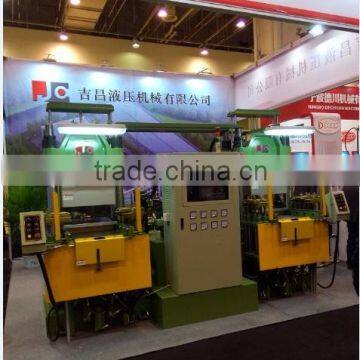

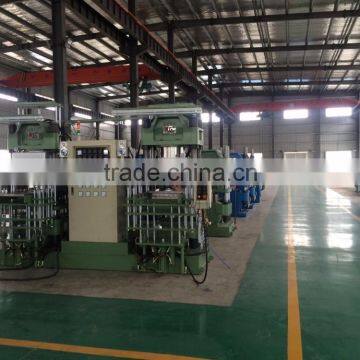

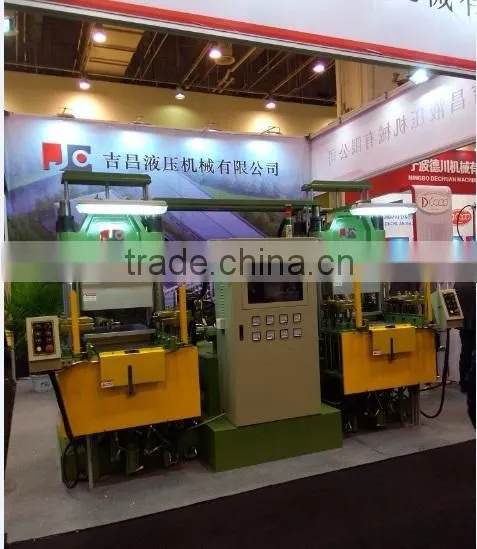

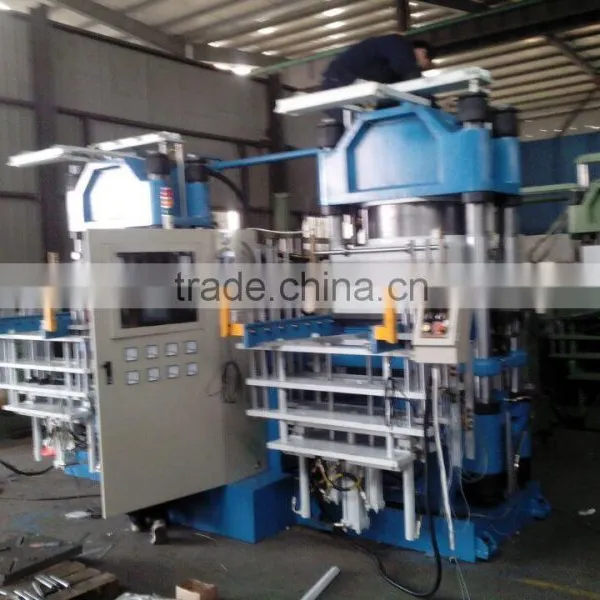

hot sale Vacuum Rubber Platen Vulcanizing Press/Machine
APPLICATIONS:
Ideal for the production of making rubber O-rings,keyboards,rubber medical products,etc.
REMARKABLE FEATURES:
· The vacuum suction hood provides highly efficient vacuum suction effect for the entire mold inside the working platen, suction speed of 700HG/2 sec. The unit offers simplified construction, easy to operate and maintain, with fast mold change.

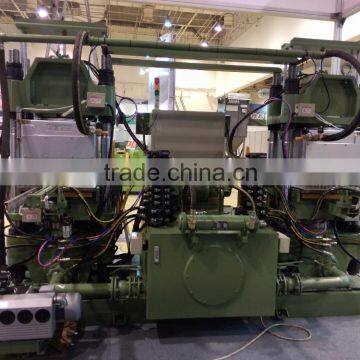

· Integrated hydraulic circuit provide various pipe functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valve.
· The motion time, traverse and number of motions can be conveniently set on the control panel to meet product variations, ensuring production quality.
· Combines two molding units in one machine, which can be operated separately.
· While in vulcanization molding operations, the hydraulic pump motor can be set for running, or stopped for power saving.
· The electric system is controlled by the PLC controller, allowing for easy operation and accurate adjustment. An emergency switch provides added safety for the mold and the operator.
Specification
Model | YH-HV80T-2 | YH-HV150T-2 | YH-HL200T-2 | YH-HV250T-2 | YH-HV300T-2 | |
Clamping Force | TON | 80 | 150 | 200 | 250 | 300 |
Plate Size | mm | 380×420 | 450×450 | 500×550 | 550×550 | 650×650 |
Piston Stroke | mm | 380 | 345 | 380 | 380 | 380 |
Heating Capacity | kw | 9 | 9 | 13.5 | 20.4 | 20.4 |
Pump Motor | kw | 5.5 | 7.5 | 7.5 | 11 | 15 |
Piston Diameter | mm | 230 | 356 | 495 | 406 | 430 |
Max Mold Size L×W×H | mm | 340×380 ×180 | 410×410 ×120 | 510×510 ×200 | 510×510 ×200 | 610×610 ×175 |
Machine Dimensions | mm | 2850×1625 ×2610 | 3150×1640×2550 | 3650×1800×3090 | 3650×1800×3090 | 3830×2450×2990 |
Machine Weight | kg | 6500 | 7200 | 9300 | 11000 | 9000 |
Model | YH-HV80T | YH-HV150T | YM-HL200T | YM-HV250T | YM-HV300T | YM-HV400T | YM-HV600T | |
Clamping Force | TON | 80 | 150 | 200 | 250 | 300 | 400 | 600 |
Plate Size | mm | 380×420 | 450×450 | 500×550 | 500×550 | 650×650 | 800×800 | 1000×1000 |
Piston Stroke | mm | 380 | 345 | 380 | 380 | 380 | 450 | 520 |
Heating Capacity | kw | 9 | 9 | 13.5 | 20.4 | 20.4 | 24 | 42 |
Pump Motor | kw | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 18.5 |
Piston Diameter | mm | 230 | 305 | 356 | 406 | 430 | 500 | 610 |
Max Mold Size L×W×H | mm | 340×380 ×180 | 410×410 ×200 | 510×510 ×200 | 510×510 ×200 | 610×610 ×175 | 760×760 ×200 | 960×960 ×305 |
Machine Dimensions | mm | 1720×1625 ×2610 | 1875×1640 ×2550 | 2120×1800 ×3090 | 2120×1800 ×3090 | 2210×2200 ×2990 | 2440×2190 ×3430 | 3100×2450 ×4060 |
Machine Weight | kg | 3000 | 3200 | 5200 | 6200 | 6800 | 12500 | 14000 |
