EVA/PE Foam Sheet Making Machine/EVA&PE Foam Plate Vulcanizing Press
US$ 20,000 - 60,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Money Gram Credit Card
You May Like
-
Platen Vulcanizing Press for Making Eva/pe Foam Sheet/EVA Roll Production Line
-
Hydraulic Vulcanizing Press for Rubber Tile/ Plate Vulcanizing Press for Rubber Tile
-
PVC Floor Hydraulic Vulcanizing Press/plate Vulcanizing Press for Rubber Mat
-
Rubber Mat Making Machine/Rubber Mat Press/rubber Mat Hydraulic Vulcanizing Machine
-
PVC Floor Vulcanizing Machine/anti-static Floor Vulcanizing Machine/PVC Floor Vulcanizng Press
-
Rubber Sole Molding Press/Rubber Sole Making Machine/Rubber Sole Hydraulic Press/Vulcanizing Press for Rubber Sole
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | MIXER | Model Number | MXF-500T | |
| Voltage | 380V | Power(W) | 11KW | |
| Dimension(L*W*H) | according to model | Weight | 18000 KG | |
| Certification | CE,ISO | Warranty | 1 year after shipment | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Vulcanizing Press/ EVA/PE Foaming Machine/ EVA/PE Vulcanizing Machine;
EVA/PE foam sheet making machine/EVA&PE foam plate vulcanizing press :
The EVA/PE foam Vulcanizing press is used for foaming EVA, PE rubber, which is widely used in shoe material manufacturing, foaming floor glue, thermal keeping material, luggage liner, sporting prevention material, diving dress material and life vest material, etc.
Specification
Item | Model | Total pressure | Cylinder diameter | Platen size | Daylight | Layers | Column Span | Motor power |
Ton | mm | mm | mm | mm | kw | |||
1 | MXF-250T | 250 | 380 | 800*1000 | 140 | 4 | 1000 | 7.5 |
2 | MXF-300T | 300 | 450 | 900*1100 | 150 | 4 | 1000 | 7.5 |
3 | MXF-500T | 500 | 560 | 1000*1200 | 150 | 4 | 1300 | 11 |
4 | MXF-650T | 650 | 650 | 1100*1350 | 150 | 6 | 1400 | 11 |
5 | MXF-850T | 850 | 762 | 1200*1500 | 150 | 6 | 1600 | 15 |
6 | MXF-1000T-A | 1000 | 813 | 1350*1700 | 150 | 6 | 1800 | 22 |
7 | MXF-1000T-B | 1000 | 813 | 1200*1500 | 150 | 6 | 1500 | 22 |
8 | MXF-1100T | 1100 | 838 | 1350*1700 | 150 | 6 | 1800 | 22 |
9 | MXF-1350T-A | 1350 | 915 | 1350*1800 | 180 | 6 | 1800 | 22 |
10 | MXF-1350T-B | 1350 | 915 | 1350*1500 | 150 | 6 | 1500 | 22 |
11 | MXF-1650T-A | 1650 | 1016 | 1400*2200 | 180 | 6 | 1800 | 30 |
12 | MXF-1650T-B | 1650 | 1016 | 1500*2400 | 200 | 9 | 2200 | 30 |

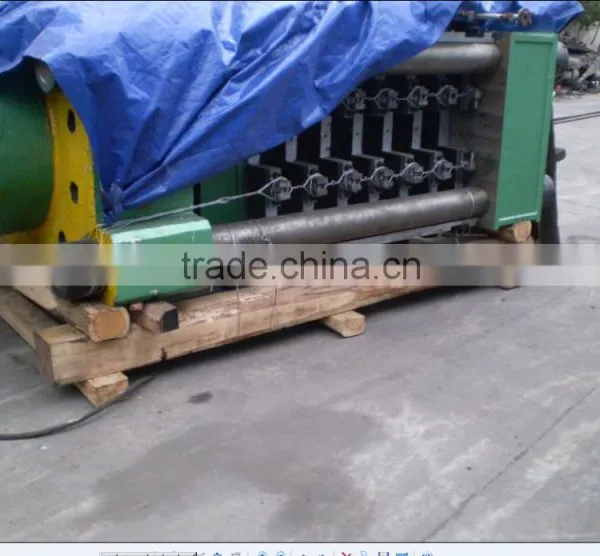

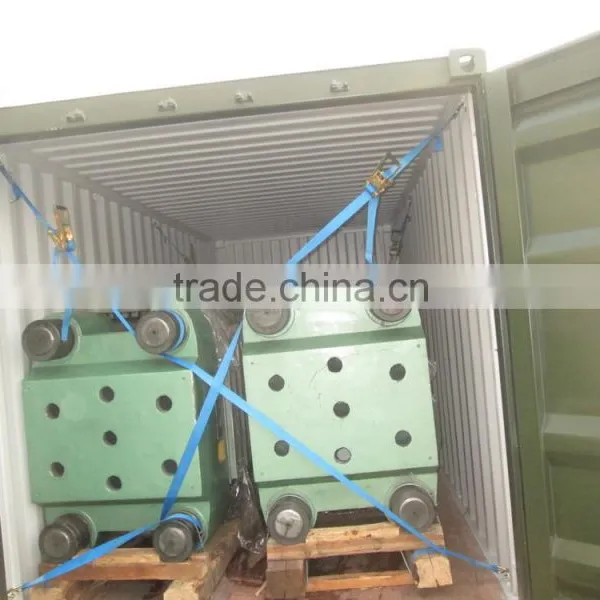

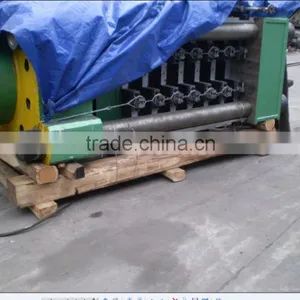

Packaging & Shipping
