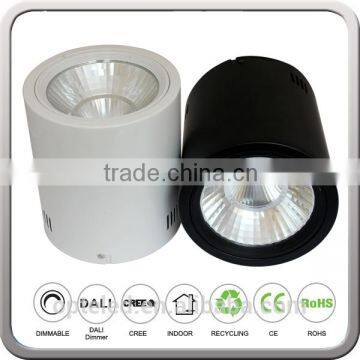

LED Surface Mount Downlight 15W 20W 30W 40W 50W
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
LED Suface Mounted Down Ligh 30W Downlight
-
Surface Mounted Corridor LED Downlight IP54
-
Anti-glare Surface Mounted LED Downlight White and Black Finished Housing
-
Cylinder LED Downlight 30W Surface Mounted Open Cut out 15-50W
-
Cylinder-shaped Down Light Surface Mounted Round LED Downlight
-
Cutout free Cylinder LED Downlight Surface Mounted 30W 40W 50W
Product Details
| LED Light Source | CREE COB | Warranty(Years) | 3 | |
| Input Voltage(V) | AC85~265V | Lamp Power(W) | 30 | |
| Lamp Luminous Flux(lm) | 2700 | Lamp Luminous Efficiency(lm/w) | 90 | |
| Color Temperature(CCT) | Other, Warm White Neutral White Cold White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP33 | Certification | C-tick, CCC, CE, EMC, Energy Star, ETL, SAA, UL | |
| Model Number | OP-SMCON0230 | Place of Origin | Guangdong, China | |
| Brand Name | OPTE |
Product Description
LED Surface Mount Downlight with wide range of power 15W 20W 30W 40W 50W
bined with perfect parameter and performance of OPTE COB Downlight and Independent appearance of surface mounted led downlight.
2.Surface mounted and suspended installation available, and widely used in different places.
3.Succinct and beautiful design of lamp body, a perfect combination of decoration and lighting.
4.Flexible separate design makes installation simpler, faster, safer and more effective.
5.Multiple safety protection design can make sure that it is absolutely safe, before hanging the lamp, you can insert stainless steel rope(SUS 304) into flexible &safety rope slot to ensure there will be no safe hidden trouble even if the lamp wasn’t suspended correctly.
6.All-aluminum housing design makes sure the Antioxidant life of lamp housing.
Warning :
1.This lamp cannot be suspended or direct mounted on the fragile objects,such as gypsum board ceiling,fire-barrier ceiling;
1 .It’s best to be hung under solid objects, like concrete ceiling, brick wall, wood or any other solid objects.
Name | Surface Mounted LED Downlight |
Related wattge: | 30W |
Input voltage: | 85-265 VAC |
Operating frequency: | 50/60 Hz |
Power factor | 0.9 |
Beam angle | 38 ° |
LED brand | CREE / Epistar COB |
LED Qty | 1 pcs |
Luminous flux | 2700 lm |
Light color | warm white/ nature white/ cool white |
CRI | ≥85/90 |
Diameter | Φ 171*192mm |
Shell Housing | White/Black |
Driver | Built-in High Quality |
Dimmable | Optional |
Main material | Aluminum alloy |
Working temperature | -10~45 °C |
Storage temperature | -20~80 °C |
Lifespan | 50000 h |
Certificates & standard | CE, ROHS, TUV SAA |
Warranty | 3 years |
Q1 How do you evaluate LED Surface downlight products?
Lumen output is only part of the story and can be misleading. To fully evaluate an LED product one needs to review the overall system efficiency,optical control, thermal management of the LEDs, and know at what point in time the fixture will reach 30 percent lumen depreciation. Products with good optical efficiency and thermal management will be able to deliver more lumens, on average, than traditional HID products.
Q2 How long will my LED Light last?
LEDS last up to 8 times longer than CFL and Incandescent lamps and you can expect at least 35,000 hours of use from your LED Lamp.
Q3 How should i choose the color temperature ?
3000K, warm and appealing, for leisure atmosphere and accent lighting
4000K, natural effect, ideal application on public places.
6000K, bright and efficient, for pleasant and healthy office environment.
LED Downlight is popular for store,hotel,shopping malls,gellery, museum,office
Q4 Does OPTE have ability to do OEM products?
In the past years OPTE has gained a lot of work on OEM of LED lighting and LED strip lighting. And thanks to these works, we gained a lot of valuable OEM experience. We will still strictly follow the principal that we won’t disclose or sell customer’s unique designs to any other third party.
Q5 How your company control the cost of the lights ?
We have a industrial chain which involve a completed system like Housing Die-Coasting , LED encapsulation and Driver R&D Departments , to make sure you our lights in competitive and high quality
Q6 What should i do if any lights not good in quality
Each lights under strictly quality inspection and 24 Hrs aging test before sending to you , we make sure the reject ratio under 3‰ , unfortunately , if any light failures in quality within warranty period , please offer the proof (Picture Video) to us ,we will replace & fix free of charge and bear the freight cost
Q7 Is there any cheap shipping cost to our country ?
We have long term cooperation forwarder in DHL FedEx ,Air freight sad Sea freight, we will try our best to get the best freight rate for you
