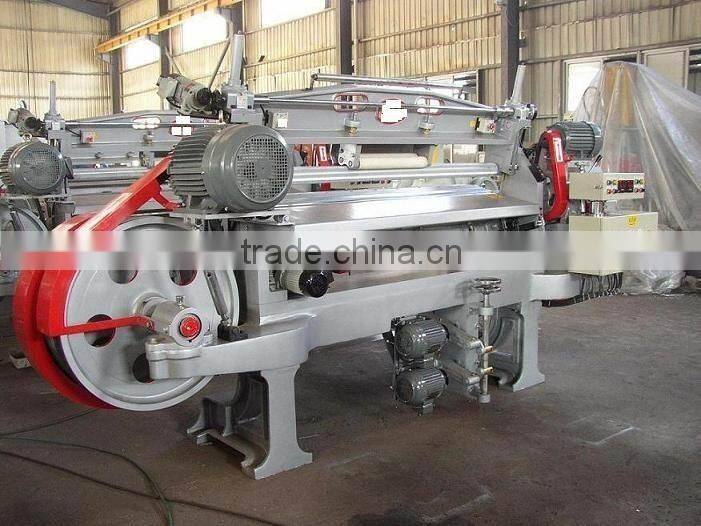

Foam Rubber Sheet Bandknife Splitting Machine/bandknife Blades
US$ 10,000 - 20,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Bandknife Eva Splitting Machine/eva Machine/eva Cutter
-
Eva Splitting Machine Foam Slicing Machine/cr Splitting Machine/splicing Machine
-
Foam Bandknife Splitting Machines/foam Skiving Machine/skiving Machine
-
Long Foam Sheet Bandknife Splitting Machines
-
Cutting Sponges/vertical Cutter/vertical Foam Cutter
-
pe Foam Vertical Cutting Machine/vertical Saw for Cutting Foam/sponge Vertical Cutting Machine
Product Details
| Condition | New | Type | Other, Bandknife Splitting Machine | |
| Place of Origin | Jiangsu, China | Brand Name | MIXER | |
| Model Number | LS-180 | Voltage | 380V,220V,480V | |
| Power(W) | 11KW | Dimension(L*W*H) | 3900x1150x2100mm | |
| Weight | 3200 | Certification | CE | |
| Warranty | 1 year after shipment | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
bandknife splitting machine/bandknife blades/foam rubber sheet splitting
Application:
The machine is applied to splitting the foamed rubber cork, foamed EVA, PE, etc. at a high speed and precision.
Features:
1. Cutter with holder plate is spray welded with tingsten, featuring abrasion resistant, non-deformation and it doesn’t clamp the cutter.
2. The speed is controlled through a powerful mechanic gearbox, featuring speedy change without reducing the power, lower failure rate.
3. The splitting thickness is set by the digital switch, featuring high precision.
4. The splitting thickness is set by the digital switch, featuring high precision. The main components, like motor, gear box, drive bearing, electric elements, are all made from Taiwan or Japan brand, with reliable and stable performance, making sure the machine with longer service life.
Specification
Item | Contents | Data |
1 | Slicing width | 1800 mm |
2 | Slicing Thickness | 0.3-120 mm |
3 | Slicing Hardness | 10°-80° |
4 | Slicing Speed | 10M-40 M/min |
5 | Slicing Precision | ±0.05 m/m Or ±5% |
6 | Drive Power | 11KW |
7 | Band knife Dimension | 1.0×90×8100m/m |
8 | Machine Dimension | 3900×1150×2100 mm |
9 | Equipment Weight | 3200KG |
