12 Voltage Fire Alarm System Batteries Deep Cycle High Capacity Lead Acid Battery

12 Voltage Fire Alarm System Batteries Deep Cycle High Capacity Lead Acid Battery photo-1
12 Voltage Fire Alarm System Batteries Deep Cycle High Capacity Lead Acid Battery photo-2

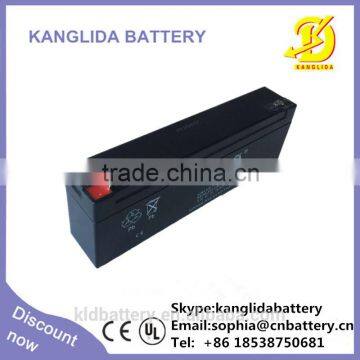

12 Voltage Fire Alarm System Batteries Deep Cycle High Capacity Lead Acid Battery photo-3

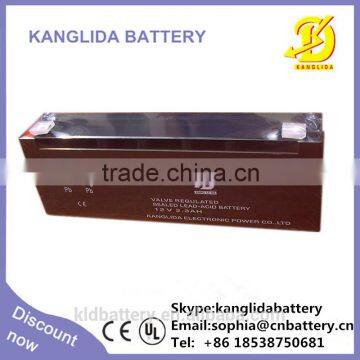

12 Voltage Fire Alarm System Batteries Deep Cycle High Capacity Lead Acid Battery photo-4

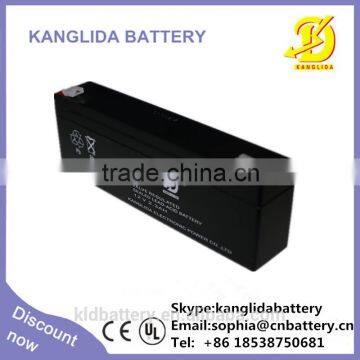

12 Voltage Fire Alarm System Batteries Deep Cycle High Capacity Lead Acid Battery photo-5
US$ 5 - 7 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
kang li da, KANGLIDA
Model Number:
KLD1223
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name kang li da, KANGLIDA
Model Number KLD1223
Usage Other, fire alarm system, Alarm system
Voltage Other, 12v
Sealed Type Sealed
Maintenance Type Free
Size 178*34*60mm, 178*34*60mm
Weight 0.898kg, 0.898kg
Nominal Capacity 2.3ah

Application

Maintenance free storage battery 12V2.3ah is used for fire alarm system, automatic door and so on.



Advantage

1. The battery is full of power when it’s out of factory, no need to use liquid charge;

2. no memory, no need to discharge battery use, suitable for circuit design;

3. by high partition, adsorption and strong;

4. there is no flowing liquid (poor liquid), does not leak acid and free Upside down,

5. comply with environmental requirements, ease of use,

6. the use of lead-calcium alloys, battery self-discharge is very low,

7. easy storage, less maintenance;

8. using ABS plastic shell and valve technology for safe use.



battery characteristic

Nominal voltage

12V

Nominal capacity(20h rate)

2.3Ah

Size

Total height

62mm

length

178mm

width

34mm

height

60mm

Weight

0.898kg

Rated capacity                       25°C(77°F)

20 hour rate(0.115A)

2.30Ah

10 hour rate(0.21A)

2.10Ah

5 hour rate(0.39A)

1.95Ah

1 hour rate(1.38A)

1.38Ah

Internal resistance

in full charge status 25°C(77°F)

50mΩ

Capacity at different temperature(10h)

40°C(104°F)

102%

25°C(77°F)

100%

0°C(32°F)

85%

-15°C(5°F)

65%

Self discharge     25°C(77°F)

capacity after 3 months

91%

capacity after 6 months

82%

capacity after 12 months

64%

Mode of charge (constant voltage)       25°C(77°F)

cycle-use

initial charging current less than0.92A ,                    voltage14.10-14.40V

float-use

Initial charging current less than 0.35A voltage13.50-13.80V



Notice

  1. Don’t near the hot source and don’t under the sunshine.
  2. Don’t charge in the sealed container.
  3. No short circuit. It should be addition charge if you don’t use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
  4. Don’t store in the space of acid gas.
  5. You should be careful and regular check when use the battery. To avoid the battery don’t work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
  6. Don’t put the battery in the fire, or it will explode.
  7. Please use cotton cloth to clean, if the battery is broken down and leak electrolyte. Please wash your skin when touch the electrolyte.
  8. Don’t clean the battery by using the organic solution. (e.g. petrol)
