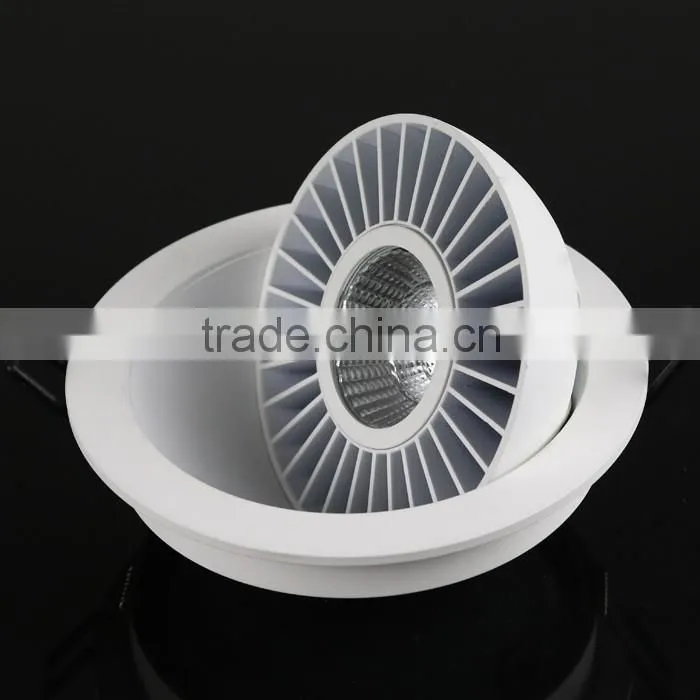

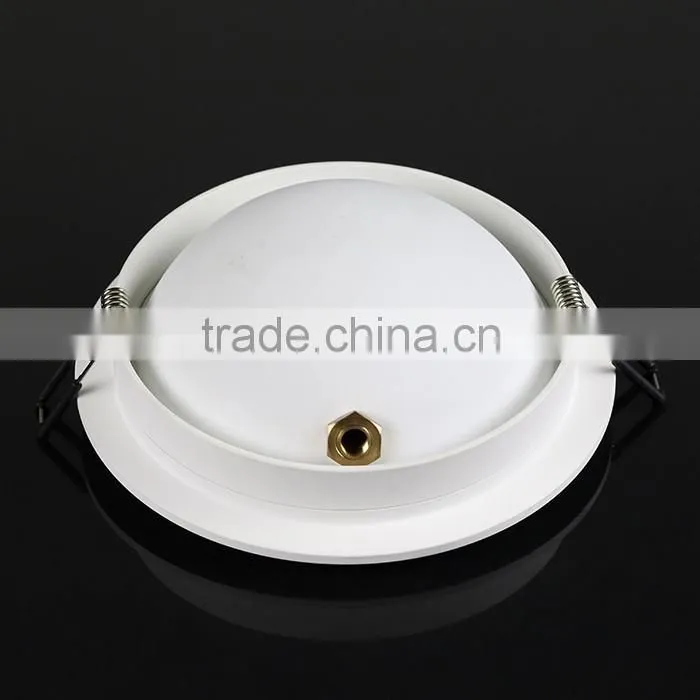

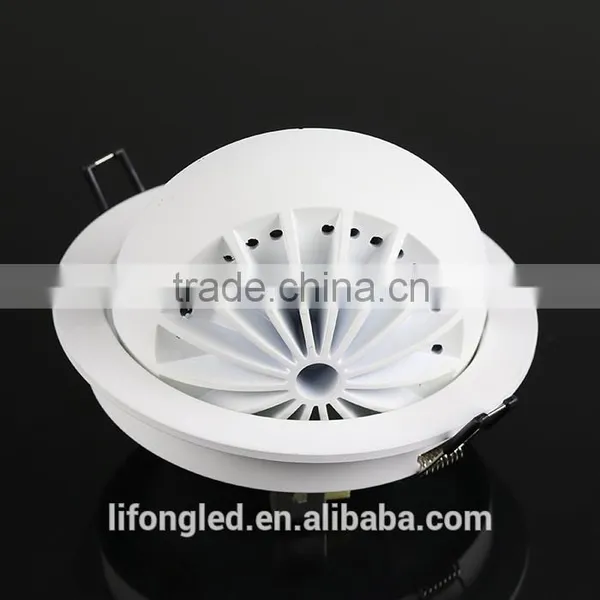

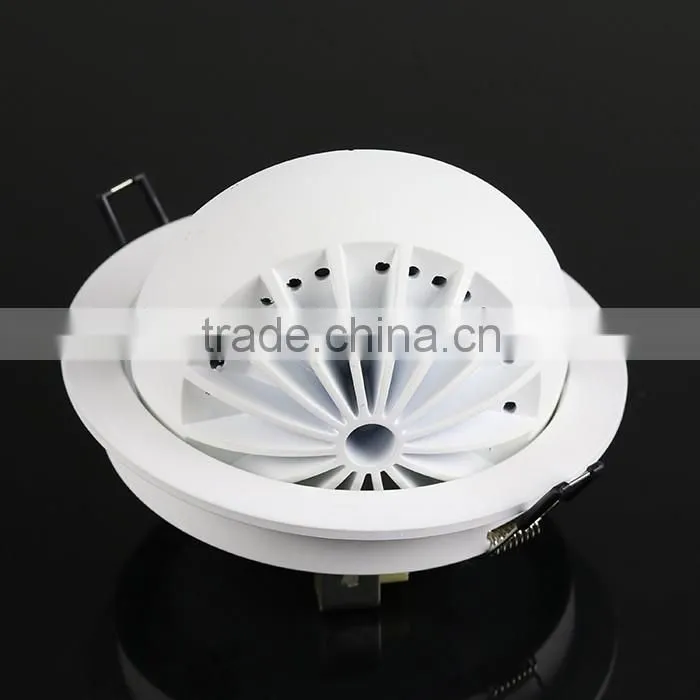

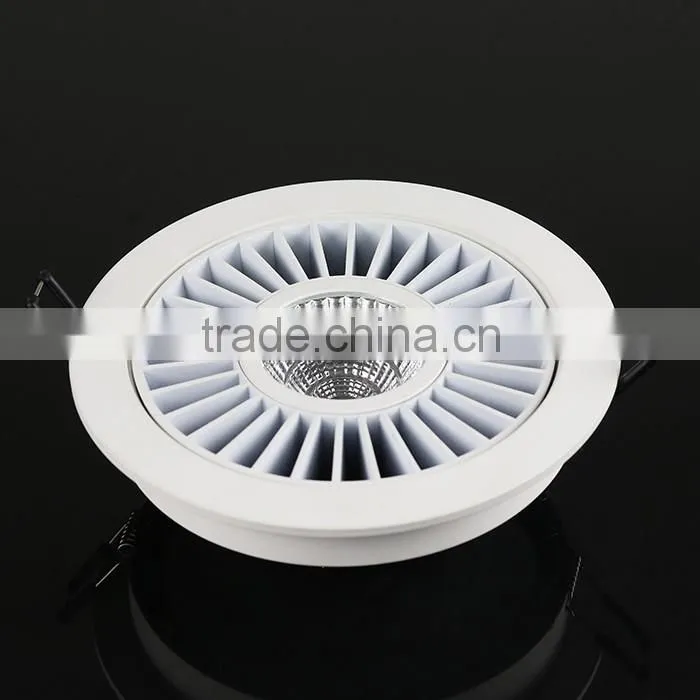

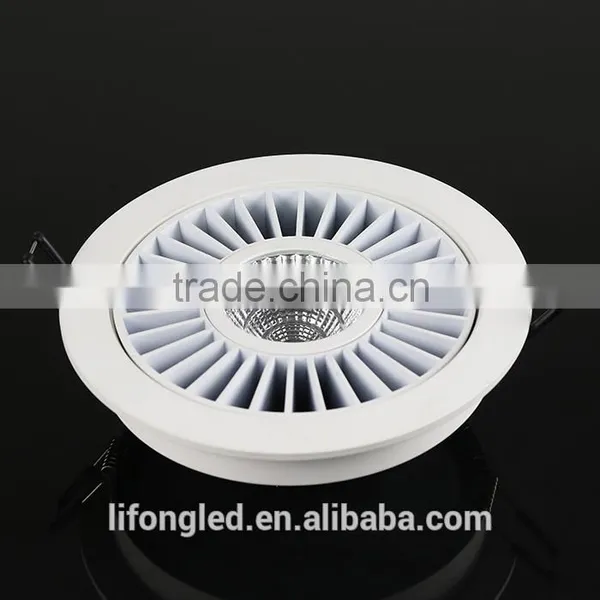

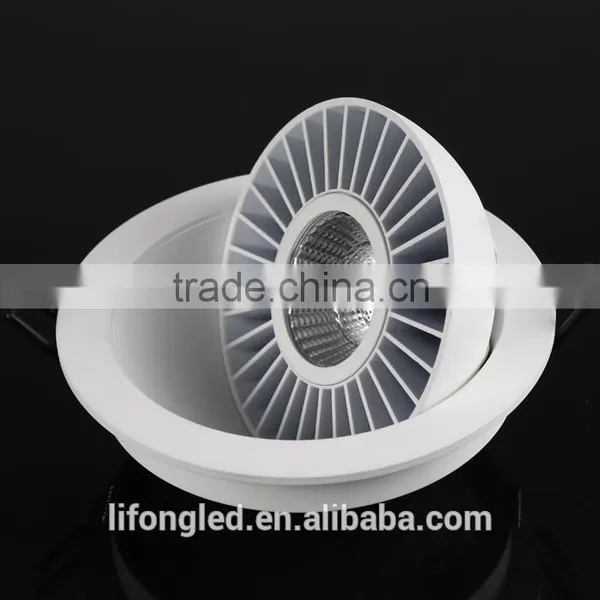

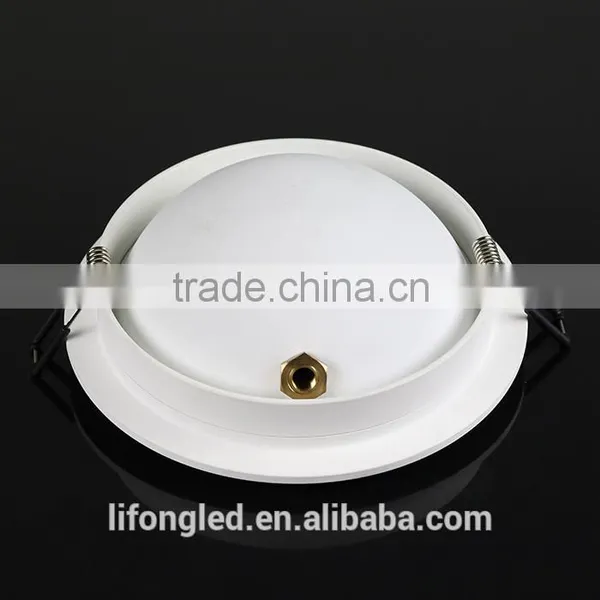

Dimmable LED COB Downlight 7w 12w 15w Gimbal downlights
| Model | Wattage | LED brand | Luminous Flux | Beam Angle | Size | Cut out | CCT | CRI | LED Driver |
| CF0101-25A | 7W/9W | CREE1507 | 580~620LM | 24°, 38° | φ105XH55mm | 90mm | 3000K 4000K 5000K | >80 / >90 | Tridonic Dirver |
| CF0101-30A | 12W | CREE1507 | 1020~1060LM | 24°, 38° | φ120XH70mm | 105mm | Tridonic Dirver | ||
| CF0101-40A | 15W | CREE1512 | 1300~1360LM | 24°, 38° | φ150XH55mm | 140mm | Tridonic Dirver |
Features:
1. Long Lifetime 50,000H;
2. Surface finish: Aluminum alloy+glass;
3. Input voltage: AC85-265V;Luminous Efficiency reach up to 80~85lm/w;
4. Colors: Cool white, Nature white ,Warm white, other color is available;
5. Better thermal-dissipation structure;
6. Light source: COB;
7. Luminous flux: Warm White 2700-3300K, Nature white 3700K-4300K, White 370lm 5000-5500K;
8. Beam angle:24,38 degrees;
9. Body temperature: Less than 53 degrees Celsius;
10. LED working temperature: Less than 62 degrees Celsius ;
11. Temperature: -40 ~ 70 degrees Celsius;
12. Brightness degradation: 1% - 3%1kh;
13. Lifespan: 50, 000 hours;
14. No UV or IR radiation;
15. Pass EMC &CE&Rohs test;
16. Use Aluminum alloy+glass socket for better insulation and heat dissipation instead of iron socket common on the market;
Advantages:
1. Energy-saving, Environment friendly.
2. Lead free, Mercury free, Eco-friendly, Recyclable.
3. Start without delay, No glare, No strobe light.
4. Excellent heat sink, low light decay.
5. Long lifetime >50, 000 hours.
Application:
1. Living room, Bedroom, Kitchen, Washroom.
2. Office, Department store, Restaurant,Hospital, School, Supermarket.
