Home > Products > LED Downlight > 3-5 years warranty 90mm cutout 15W cob led downlight with cree chip

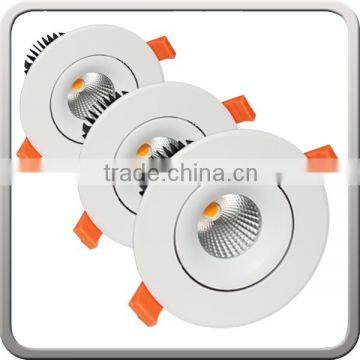

3-5 years warranty 90mm cutout 15W cob led downlight with cree chip
- 100000 Piece / Pieces per Month
- Yantian (Shenzhen )
- T/T Credit Card PayPal
You May Like
-
warm white 2700K 3000K 12 Watts LED cob downlight with 3.5 inch cuthole size
-
high bright 12 Watt cob led ceiling down lamp CCT changing dimmable for store
-
rotatable 12W LED downlight cob commercial lighting with 3 inch 80mm cuthole
-
Flexible Dimmable 9 watt LED Round ceiling Down light for Indoors use
-
100LM/W round recessed mounted 9w cob led down light with narrow beam angle 15 30 degree
-
high quality LED retrofit cob downlight 9 wats wtith 240V 12V voltage for hotel lighting
Product Details
| LED Light Source | CREE COB | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100-240V | Lamp Power(W) | 15 | |
| Lamp Luminous Flux(lm) | 1275 | Lamp Luminous Efficiency(lm/w) | 85 | |
| Color Temperature(CCT) | Other, Warm White Neutral White Cold White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP33 | Certification | C-tick, CCC, CE, EMC, Energy Star, ETL, SAA, UL | |
| Model Number | OP-DLC15W | Place of Origin | Guangdong, China | |
| Brand Name | OPTE |
Product Description
3-5 years warranty 90mm cutout 15W cob led downlight with cree chip
6W 9W LED Downlight Front View
6W 9W LED Downlight Back View
Cree LED Chip
Driver
Downlight radiator
Light distribution
1 Using Standard high quality of Cree COB LED
2. High color rendering., In excess of CRI:90
3.Uniform light beam angle and anti-glare ensuring the lighting requirements of commercial application
4.High efficiency means energy savings in excess of 80%(compared to 50W/75W halogen)
5.Optimal Thermal Design ensures longer life average life projection 40,000 hours at LM80
6.Dimmable available – Clipsal, Lumex,HPM, Smart recommended
7.Fully assembled, including down lights fittings and Australia flex and plug also can be provide
8.Gimable angle with 45 degree
9.Full European Australian Approvals:CE SAA,C-tick
10.5 years warranty for LED lamps,3 years warranty for external drivers.
Part No. | OP-DLC15W |
Related wattage: | 15W |
Input voltage: | 85-265 VAC |
Usage | Accent lighting |
Operating frequency: | 50/60 Hz |
Power factor | 0.9 |
Beam angle | 30° |
LED brand | CREE COB |
LED Qty | 1 pcs |
Luminous flux | 510lm / 765lm |
Light color | Warm white/ Pure white/ Cold white |
CRI | ≥85/90 |
Diameter/ Cutout | Φ95*63mm / 68mm |
Shell Housing | White/Black |
Driver | External |
Dimmable | Optional |
Main material | Aluminum alloy |
Working temperature | -20~45 °C |
Storage temperature | -20~80 °C |
Lifespan | 50000 h |
Certificates & standard | CE, ROHS, TUV SAA |
Warranty | 3 years |
Other watts we have
Model No. | Power | Power Factor | LED | Lumen | CRI | Beam Angle | Cut-out | Dimension | |
OP-DLCOB0106W | 6W | >0.95 | Cree | 510LM | ≥90 | 30° | 68mm | Φ95mm*63mm | |
OP-DLCOB0109W | 9W | >0.95 | Cree | 765LM | ≥90 | 30° | 68mm | Φ95mm*63mm | |
OP-DLCOB0112W | 12W | >0.95 | Cree | 1020LM | ≥90 | 24°36° | 80mm | Φ111mm*86mm | |
OP-DLCOB0115W | 15W | >0.95 | Cree | 1275LM | ≥90 | 15°24°38°60° | 90mm | Φ119mm*103mm | |
OP-DLCOB0120W | 20W | >0.95 | Cree | 1700LM | ≥90 | 24°60° | 110mm | Φ142mm*122mm | |
OP-DLCOB0125W | 25W | >0.95 | Cree | 2125LM | ≥90 | 24°60° | 110mm | Φ142mm*122mm | |
OP-DLCOB0130W | 30W | >0.95 | Cree | 2550LM | ≥90 | 15°24°38°60 | 145mm | Φ180mm*133mm | |
OP-DLCOB0135W | 35W | >0.95 | Cree | 2975LM | ≥90 | 15°24°38°60 | 145mm | Φ180mm*133mm | |
OP-DLCOB0140W | 40W | >0.95 | Cree | 2400LM | ≥90 | 15°24°38°60 | 145mm | Φ180mm*133mm | |
OP-DLCOB0145W | 45W | >0.95 | Cree | 3820LM | ≥90 | 24°60° | 158mm | Φ193mm*134mm | |
OP-DLCOB0150W | 50W | >0.95 | Cree | 4250LM | ≥90 | 24°60° | 158mm | Φ193mm*134mm | |
Q1 How do you evaluate LED products?
Lumen output is only part of the story and can be misleading. To fully evaluate an LED product one needs to review the overall system efficiency,optical control, thermal management of the LEDs, and know at what point in time the fixture will reach 30 percent lumen depreciation. Products with good optical efficiency and thermal management will be able to deliver more lumens, on average, than traditional HID products.
Q2 How long will my LED Light last?
LEDS last up to 8 times longer than CFL and Incandescent lamps and you can expect at least 35,000 hours of use from your LED Lamp.
Q3 How should i choose the color temperature ?
3000K, warm and appealing, for leisure atmosphere and accent lighting
4000K, natural effect, ideal application on public places.
6000K, bright and efficient, for pleasant and healthy office environment.
LED Downlight is popular for store,hotel,shopping malls,gellery, museum,office
Q4 Does OPTE have ability to do OEM products?
In the past years OPTE has gained a lot of work on OEM of LED lighting and LED strip lighting. And thanks to these works, we gained a lot of valuable OEM experience. We will still strictly follow the principal that we won’t disclose or sell customer’s unique designs to any other third party.
Q5 How your company control the cost of the lights ?
We have a industrial chain which involve a completed system like Housing Die-Coasting , LED encapsulation and Driver R&D Departments , to make sure you our lights in competitive and high quality
Q6 What should i do if any lights not good in quality
Each lights under strictly quality inspection and 24 Hrs aging test before sending to you , we make sure the reject ratio under 3‰ , unfortunately , if any light failures in quality within warranty period , please offer the proof (Picture Video) to us ,we will replace & fix free of charge and bear the freight cost
Q7 Is there any cheap shipping cost to our country ?
We have long term cooperation forwarder in DHL FedEx ,Air freight sad Sea freight, we will try our best to get the best freight rate for you
