High Brightness 7W 9W LED COB Downlights CE ROHS SAA

High Brightness 7W 9W LED COB Downlights CE ROHS SAA thumbnail-1
High Brightness 7W 9W LED COB Downlights CE ROHS SAA thumbnail-2
High Brightness 7W 9W LED COB Downlights CE ROHS SAA thumbnail-3
High Brightness 7W 9W LED COB Downlights CE ROHS SAA photo-1
High Brightness 7W 9W LED COB Downlights CE ROHS SAA photo-2
High Brightness 7W 9W LED COB Downlights CE ROHS SAA photo-3
US$ 8 - 14 MOQ: 200 Pieces
Key Specifications
Get Latest Price
LED Light Source:
CREE 1507 / CITIZEN
Warranty(Years):
3 years
Input Voltage(V):
AC100-240V
Contact Supplier Request Quote Chat Now
Shenzhen Lifong Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source CREE 1507 / CITIZEN
Warranty(Years) 3 years
Input Voltage(V) AC100-240V
Lamp Power(W) 9
Lamp Luminous Flux(lm) 780
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, +40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification CE, EMC, FCC, LVD, SAA
Model Number CS0304-A1
Place of Origin Guangdong, China
Brand Name Lifong
Product Description



7w/9w  Led cob downlight
1.Power:7W,9W,12W is options
2.Size: DIA 85XH45mm  Cut-out: 70mm
            DIA 85XH58mm   Cut-out: 70mm
3.Mounting hole:DIA70mm
CE RoHs

   Best Low Price,LED Downlight 7w/9w Led cob downlight



  CREE 1507 7w/9w/12w cob led down light kit specs;



CS0301-A1
PRODUCT SPECS
Model number CS0301-A1 -5W CS0301-A1 -7W CS0301-A1 -9W
LED Origin CREE COB (1 PCS) CREE COB (1 PCS) CREE COB (1 PCS)
Lumens 5W  425lm 7W 600lm 9W  780lm
Beam Angle 24D/38D 24D/38D 24D/38D
Color temperature 3000K/4000K/5000K 3000K/4000K/5000K 3000K/4000K/5000K
Power consumption 5W 7W 9W
PFC 0.9 0.9 0.9
Input voltage AC85-265V AC85-265V AC85-265V
Working temperature  -20~+40  -20~+40  -20~+40
CRI 80/95 80/95 80/95
Dimmable mode Triac/PWM Triac/PWM Triac/PWM
Dimension φ 85XH45mm φ  85XH58mm φ  85XH58mm
Mounting hole 70mm 70mm 70mm



COB 7w/9w cob led down light

Lumens Decline

 3%  in  the  first 1000hours

 Feature
  • Long lifetime, Super Energy & Bills Saving, Eco LED Downlights

Environmentally Friendly, no UV & IR Radiation

Electricity Bills is almost save up to 75 - 80%

A popular and Nice stylish LED Item



 Application
  • Home and office lighting
  • Shopping mall lighting
  • Display case lighting
  • Under cabinet lighting
  • Art lighting
  • Board lighting

Step lighting, light boxes

Cabinet and under counter lighting





Installation

1. Make a Hole, MAKE SURE the hole drilling size is correct

2. Connect the Power Wire with the Product Wire

3. Push Spring and fix the clip

4. Put the Lamp into the Hole

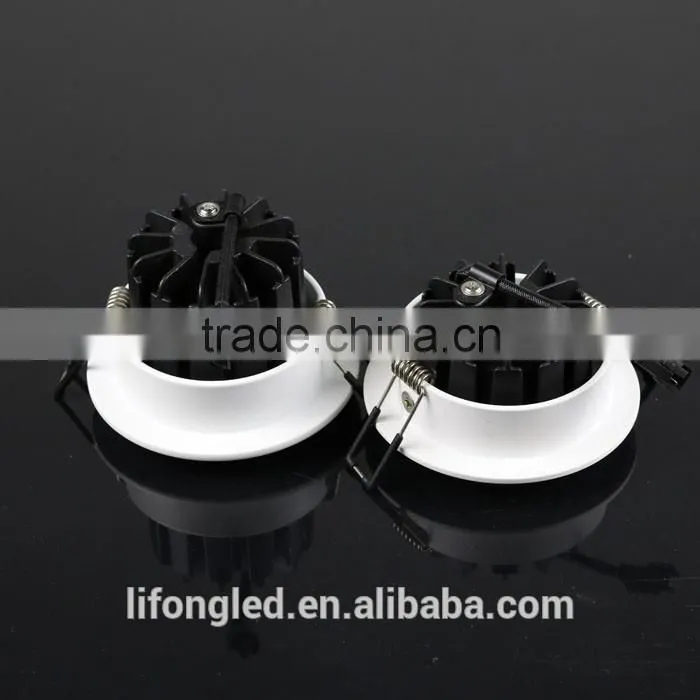

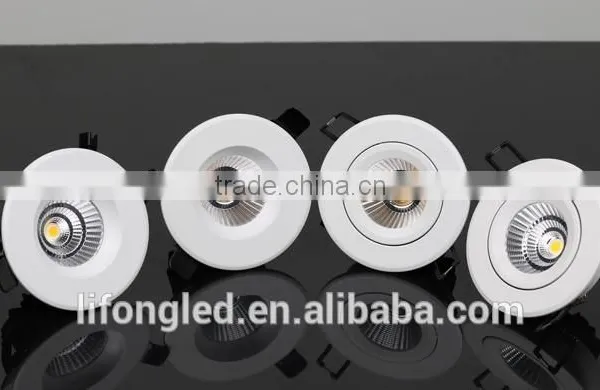

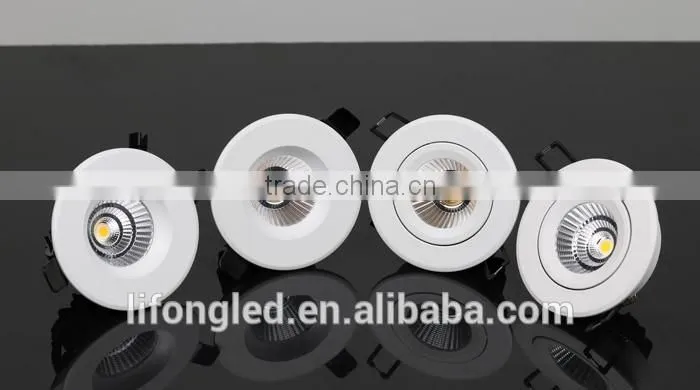

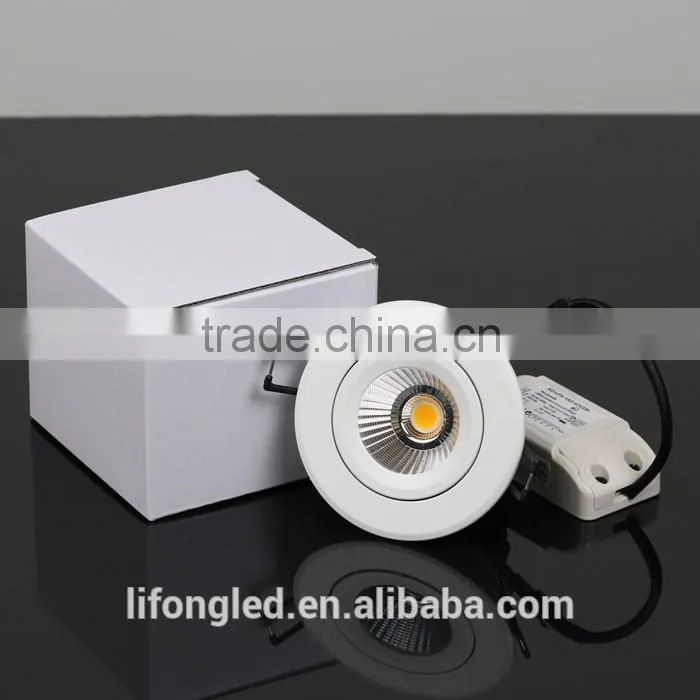

Detailed Images

 High brightness 7W 9W LED COB downlights CE ROHS SAA



High brightness 7W 9W LED COB downlights CE ROHS SAA



High brightness 7W 9W LED COB downlights CE ROHS SAA





Company Information

 High brightness 7W 9W LED COB downlights CE ROHS SAA

 High brightness 7W 9W LED COB downlights CE ROHS SAAHigh brightness 7W 9W LED COB downlights CE ROHS SAA







Packaging & Shipping

 High brightness 7W 9W LED COB downlights CE ROHS SAAHigh brightness 7W 9W LED COB downlights CE ROHS SAA

Certifications



Trade Terms



1. Payment: 1>Paypal is very welcome.2>T/T 50% deposits, 50%balance to be paid before deliver

2. Production Lead Time for 100~500pcs: 10~15days

3. Sample can be delivered in 3-7days

4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities;

Our Services



1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information

Welcome to contact us for more style and sizes with the datas and better price!
