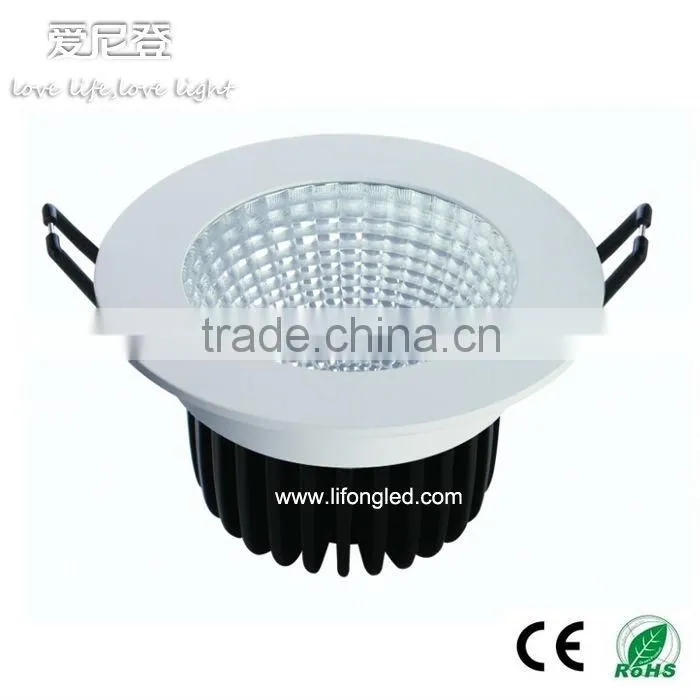

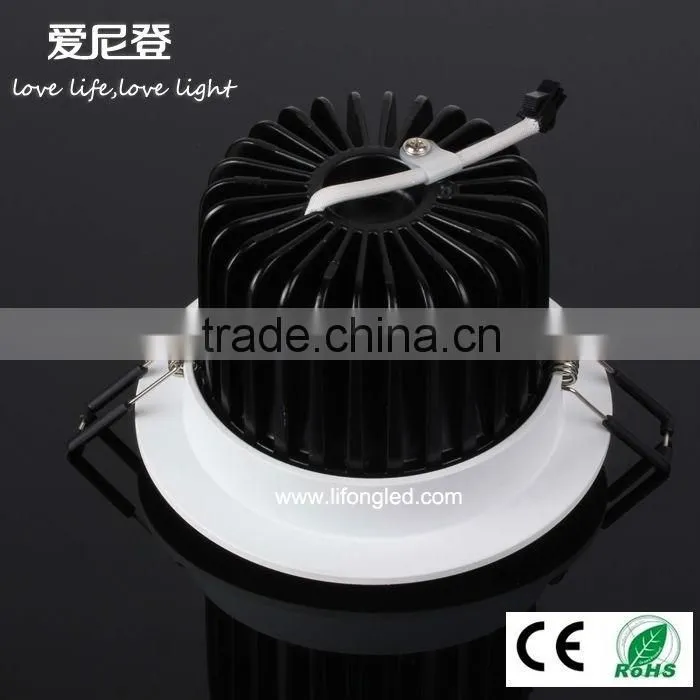

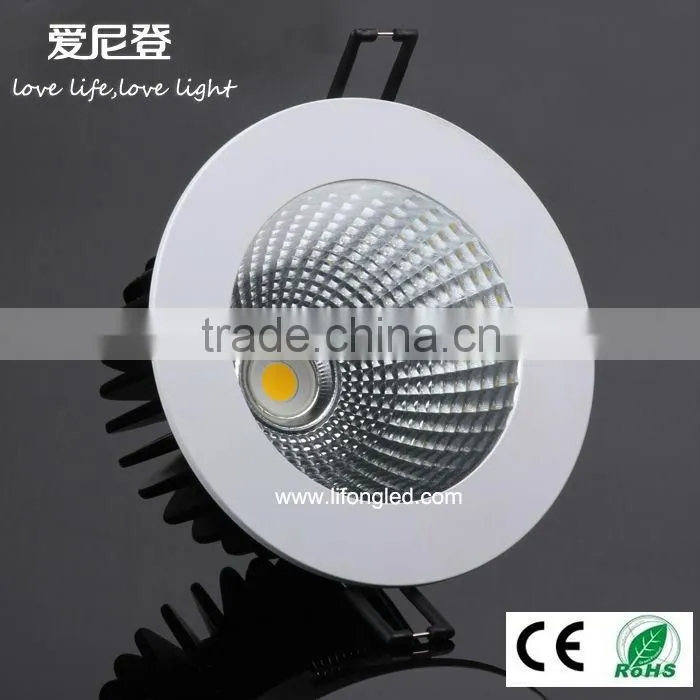

Help Center3 Inch Dimmable 12W COB LED Ceiling Downlight for Recessed Installation
Related Products
-
Round Design With Rotation and Gimbal Housing 20W 30w Dimmable Led Downlight Ajustable Led Downlights BlackUS$ 10 - 50MOQ: 100 Pieces -
High Bright High Quality Dimmable COB Led Downlight Ceiling 9w 12w 15wUS$ 11 - 12.5MOQ: 10 Pieces
-
Aluminum Lamp Body Material and Downlights Item Type Dimmable 12w 15w Led Cob DownlightUS$ 13 - 37MOQ: 50 Pieces
-
6 Inch COB LED Downlight 30W With Triac Dimmable LED DriverUS$ 20 - 40MOQ: 50 Pieces
-
Led Downlight Cob 30w/35w/50w Led Downlight 8inch Fashion Home LightingNegotiableMOQ: 10 Pieces
Specifications
9w/12w/18w Led Cob down Light
1.Power:9W,12W,18W is options
2.Size: DIA120XH70mm
3.Mounting hole:DIA105-115mm
4. Input voltage:AC85-265v
5.CCT:3000K/4000K/5000K
6.CRI:>80
7.Beam angle:38D
8.Light Source:CREE
9.Dimming mode: Triac/PWM
CE RoHs
Best Low Price,LED Downlight 9w/12w/18w Led Cob ceiling Light
CREE 1507 9w/12w/18w cob led down light kit specs;
Model number |
CT0101-30A-9W |
CT0101-30A-12W |
CT0101-30A-18W |
|
LED |
Origin |
CREE COB(1pcs) |
CREE COB(1pcs) |
CREE COB(1pcs) |
Lumens |
1507 9W 820lm |
1507 12W 950lm |
1512 18W 1500lm |
|
Beam Angle |
38 |
38 |
38 |
|
Color temperature |
3000K/4000K/5000K |
3000K/4000K/5000K |
3000K/4000K/5000K |
|
Power consumption |
9W |
12W |
18W |
|
PFC |
0.9 |
0.9 |
0.9 |
|
Input voltage |
100-240V AC |
100-240V AC |
100-240V AC |
|
Working temperature |
-5~+35 |
-5~+35 |
-5~+35 |
|
CRI |
>85 |
>85 |
>85 |
|
Dimension |
Φ120xH70MM |
Φ120xH70MM |
Φ120xH70MM |
|
Mounting hole |
Φ105-115MM |
Φ105-115MM |
Φ105-115MM |
|
COB 7w/9w/12w cob led down light
Lumens Decline |
3% in the first 1000hours |
Feature |
Environmentally Friendly, no UV & IR Radiation Electricity Bills is almost save up to 75 - 80% A popular and Nice stylish LED Item
|
Application |
Step lighting, light boxes Cabinet and under counter lighting
|
Installation
1. Make a Hole, MAKE SURE the hole drilling size is correct
2. Connect the Power Wire with the Product Wire
3. Push Spring and fix the clip
4. Put the Lamp into the Hole
1. Payment: 1>Paypal is very welcome.2>T/T 50% deposits, 50%balance to be paid before deliver
2. Production Lead Time for 100~500pcs: 10~15days
3. Sample can be delivered in 3-7days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.Discounts are offered based on order quantities; 7.MOQ:10Pieces
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
Welcome to contact us for more style and sizes with the datas and better price!
