Packaging 1, Waterproofing packing;
2, Corrosion resistant packing ;
Shipping 15 working days after payment

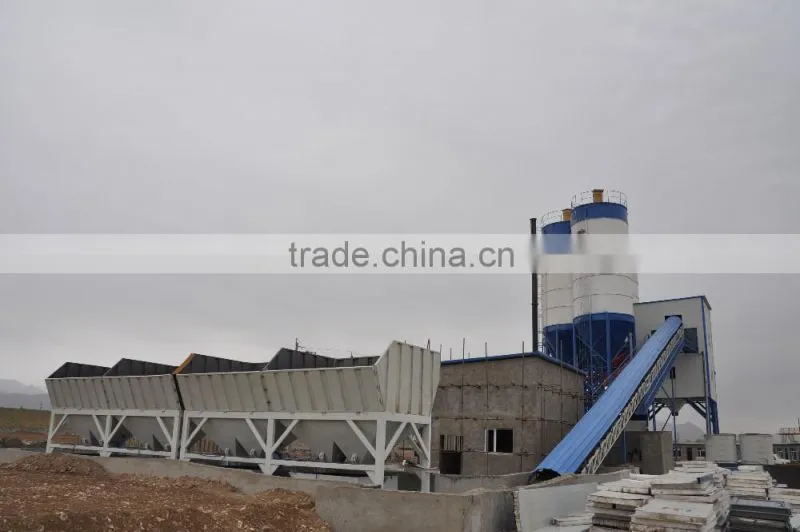

Hebei PLD 2400 concrete batching machine for sale
PLD series concrete batching machine is the automatic device of the concrete batching equipment. It can finish the materials batching process by itself according to the concrete matching, such as sand and gravel cement, etc.
It is consist of storage hopper,weighing system, feeding system, electronic control system and suitable for different working place.
And we use the pneumatic valve and belt conveyor to transport to loading.

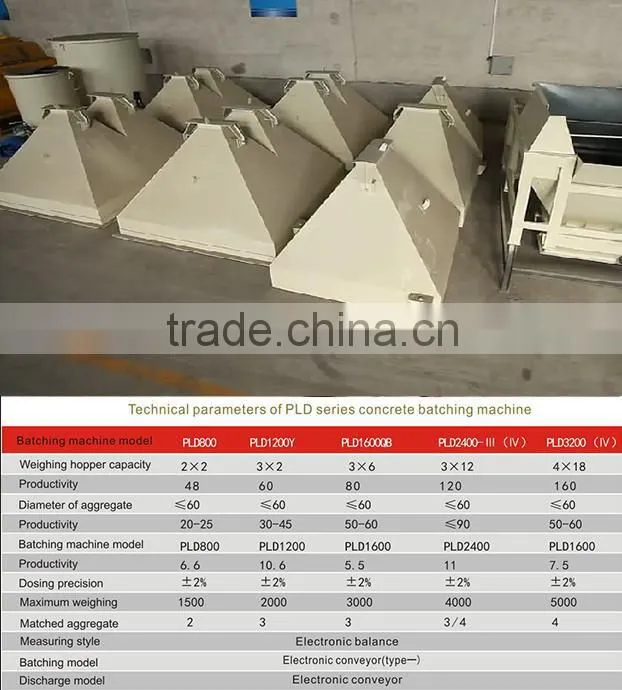

Technical Parameters
Type |
PLD800 |
PLD1600QB |
PLD2400-III(IV) |
Nominal volume of weigh bucket(m²) |
2*2 |
3*6 |
3*12 |
Productivity(m2/h) |
48 |
80 |
120 |
Aggregate particle size(mm) |
≤60 |
≤60 |
≤60 |
Productivity(KW) |
20-25 |
50-60 |
≤90 |
Batching machine model |
PLD800 |
PLD1600 |
PLD2400 |
Power(kw) |
6.6 |
5.5 |
11 |
Batching precision |
±2% |
±2% |
±2% |
Maximum weight value(kg) |
1500 |
3000 |
4000 |
Aggregate species |
2 |
3 |
3/4 |
Measuring style |
electric balance |
electric balance |
electric balance |
Batching style |
Electric belt machine |
Electric belt machine |
Electric belt machine |
Discharge style |
electric balance |
electric balance |
electric balance |
Machine quality |
2350 |
7000 |
9000 |
dimensions |
5600*1560*2760 |
9600*2300*3600 |
1000*3000*4860 |
Hebei Double Star Machinery Manufacturing Co., Ltd established in XingTai Hebei, covering over 99960 square meters area. We have more than 300 staff members, which more than 40 are engineers and technicians. We are the professional producer of concrete machinery equipment which incorporate scientific research, produce, before-sale service and after-sale service as a whole. Our leading products are concrete batching plant, concrete mixer, concrete batching machine, screw conveyor, cement silo and so on.
