Specifications
58.4v electric scooter battery charger ,lifepo4 battery charger1. AC 90~264V world wide input .
2. Three stage charge model
180w 48v electric scooter battery charger , 58.4v lifepo4 battery charger , with ce and rohs
DataSheet
| No. | Volts | Constant Voltage | Constant Current | Float Current (Lead Acid Only) |
Cut-Off Current | Dimenson (mm) | |||
| Lead Acid | Lithium Ion | Lifepo4 | Max(A) | Lead Acid | Li | ||||
| 1 | 12V | 14.7V | 16.8V | 14.6V | 8A | 13.8V | 1.6A | 0.4A | 150x90x50 |
| 2 | 24V | 29.4V | 29.4V | 29.2V | 5A | 27.6V | 1A | 0.25A | |
| 3 | 36V | 44.1V | 42V | 43.8V | 4A | 41.4V | 0.6A | 0.2A | |
| 4 | 48V | 58.8V | 54.6V | 58.4V | 3A | 55.2V | 0.45A | 0.15A | |
| 5 | 60V | 73.5V | 71.4V | 73V | 2 | 69V | 0.3A | 0.1A | |
| Features | 1 | Full automatic transition of CC, CV and Float/cut-off | |||||||
| 2 | Precise limit of voltage & current, guarantee fully charged and avoid over charge | ||||||||
| 3 | Protections: over current, over voltage, short circuit and reverse polarity | ||||||||
| 4 | Reliability:mean time between failures 30,000 power-on-hours or greater |
||||||||
| 5 | Two LED indicators, Aluminium, elegant and reliable | ||||||||
| 6 | CE & ROHS Certified, Safety and High Quality | ||||||||
| Note: Voltages and Currents can be customized by Customers' requirement. | |||||||||
Features:
1.short-circuit protection,charger o/p current automatically when short-circuit.
2.overload protection:charger o/p current limited automatically when overload.
3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
4.3-stage charging mode: CC(constant current), CV(constant voltage) and float / trickle.
5.Reliable, elegant,Small size, light,
6.charging state:two LED display.
7.all kinds of production has passed the CE certification.
8.Efficiency: ≥85 %( full capacity)
Operate Condition:
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
Apply to:
1. Electrical bicycle
2. Electrical scooter
Warranty :
We provide 2 years warranty for all our chargers.
Product Pictures:

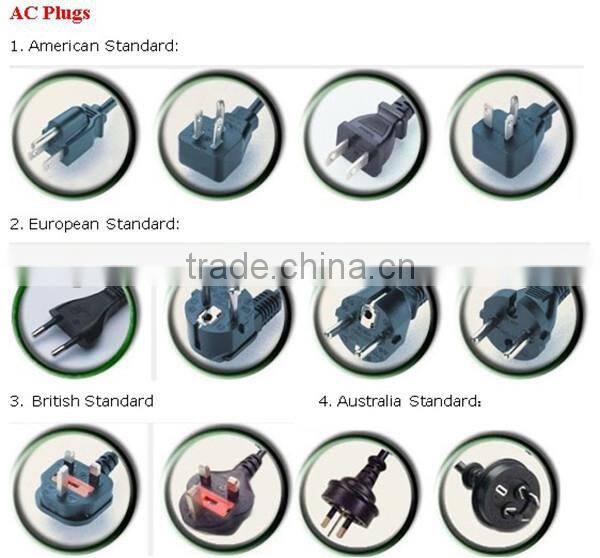

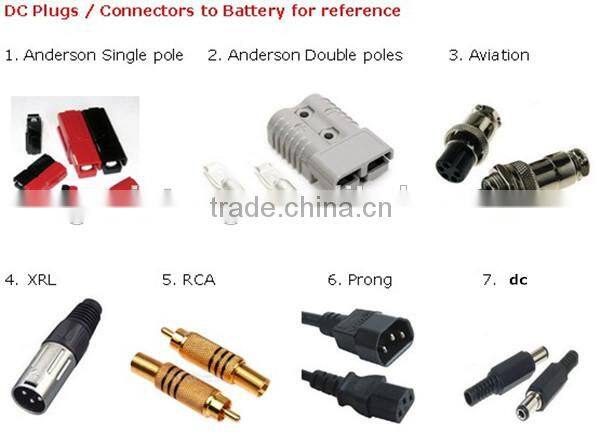

Connectors :
