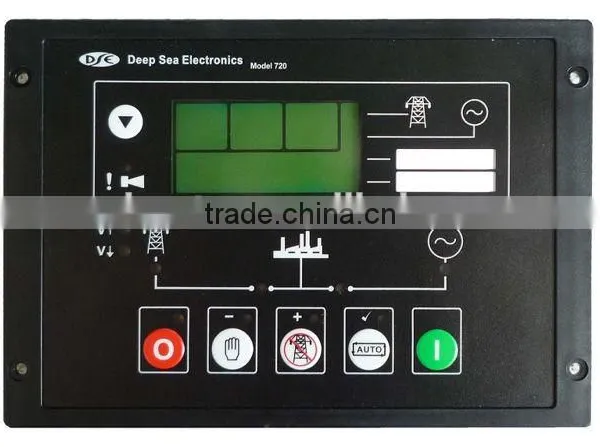

DSE720 710 diesel generator controller
Sample Order On Line : Please Click
The DSE710 is an Automatic Start Control Module that offers an advanced range of engine monitoring and protection features. The module has been designed to monitor generator frequency, generator volts, generator current, engine oil pressure, engine coolant temperature, engine running hours and battery volts. The module also displays the engine speed. When the module detects a fault condition it automatically shuts down the engine and indicates the exact fault on the modules LCD display or relevant LED indicator. The module can be configured using the front panel or via the DSE810 interface and a PC. The module can also be controlled from a PC that is located up to 100 meters away
|
Power Supply |
9 to 33 Vdc Continuous |
| Cranking Dropouts: | Able to survive voltage dips during cranking. Without the need for internal batteries. |
| Alternator Input Range | 15 - 305 V AC RMS |
| Alternator Input Frequency: | 50 - 60 Hz at rated engine speed |
| Magnetic Input Range | 0.5 V to +/- 80 V |
| Magnetic Input Frequency | 2300Hz to 6000 Hz at rated engine speed |
| Start Relay Output: | 16 Amp DC at supply voltage |
| Run Relay Output: | 16 Amp DC at supply voltage |
| Alarm Output | 1 Amp DC at supply voltage |
| Operating Temperature Range: | -30 to +70°C |
We also supply :DSE7320,7220
FEATURE
- 4-Line back- lit LCD text display
- Five key menu navigation
- Front panel editing with PIN protection
- LED and LCD alarm indication
- Customisable status screens
- Power save mode
- 7 configurable inputs
- 8 configurable outputs
- Configurable timers and alarms
- 3 configurable maintenance alarms
- Multiple date and time scheduler
- Configurable event log (100)
- Control logic facilities
- Easy access diagnostic page
- CAN and Magnetic Pick-up/Alt. sensing
- Fuel usage monitor and low fuel alarms
- Charge alternator failure alarm
- Manual speed control (on compatible CAN engines)
- Manual fuel pump control
- Engine exerciser
- “Protections disabled” feature
- KW Overload protection
- Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
- Load switching (load shedding and dummy load outputs)
- Automatic load transfer
- USB connectivity
- Backed-up real-time clock
- Fully configurable via DSE Configuration Suite PC software
- Configurable display languages
-
Remote SCADA monitoring via DSE Configuration Suite PC software
DSE5220 is an automatic mains failure control module designed to provide advanced
load share functionality for diesel and gas generating sets that include nonelectronic/
electronic engines. The module also provides excellent engine monitoring and protection
features. The module monitors the mains (utility) supply and upon detection of a loss in
power automatically starts the generating set.
Besides, we provide many other models of generator controllers
Module Type |
Models: |
|||
Deep Sea Generator Set Controller (LCD) |
DSE5110 |
DSE5120 |
DSE5220 |
|
Deep Sea Generator Set Controller (LED) |
DSE703 |
DSE704 |
||
|
Generator Set Controller (Key-Start) |
DSE702 |
BC168 |
DSE501K |
BC520A(DSE520K) |
Engine Control Module |
BC3000 |
|||
ATS Controller |
DSE705 |
|||
DSE5110 Auto Start Control Module
The DSE5110 is an Automatic Start ControlModule designed to automatically start and stop diesel
and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.
The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.
Main features
KEY FEATURES
• Automatic start
• Automatic load transfer
• Configurable inputs
• Configurable outputs
• Configurable alarms & timers
• Digital inputs
• Analogue inputs
• Back-lit character LCD display
• Engine protection
• Front panel mounting
• Icon based fault diagnostics
• PC configurable
• Front panel programming
• Remote monitoring
• LCD alarm indication
• LED alarm indication
CRANKING DROPOUTS
Able to survive 0V for 50mS, providing the supply was at least 10V before dropout and supply
recovers to 5V
We also provide many other models of controllers as following:
DSE702; DSE704; DSE705
DSE5110; DSE5120; DSE5220
DSE501K; DSE520; BC168
Also have AMF20, AMF25, MRS10 and Smartgen 6110 series
Thank you!
