Home > Products > plate sterilizer > Semi Automatic Pasteurizer
Semi Automatic Pasteurizer
- 10 Set / Sets per Month
- Shanghai Port
- T/T
- High Performance Small Yogurt Processing Plant / Milk Processing Packaging Plant Yogurt Production Line
- High Efficiency Coconut Water Processing Line / Coconut Milk Production Line
- Coconut Milk Production Line Yogurt Production Line Milk Processing Line
- High Quality Soya Milk Making Processing Best Price Yoghurt Plant
- High Efficiency Nut Milk Process Line with Best Sale High Quality Soya Milk Making Processing
- Hot Sell Factory Automatic Complete Soymilk nuts milk processing line
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | SHANGHAI CONLON |
Model Number: | BR26-PUT-3000L | Type: | Other, pasteurizing machine | Voltage: | 380V/3PH/50Hz |
Power(W): | 10KW | Weight: | 1600KG | Dimension(L*W*H): | Standard Size |
Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

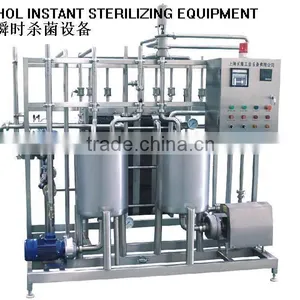

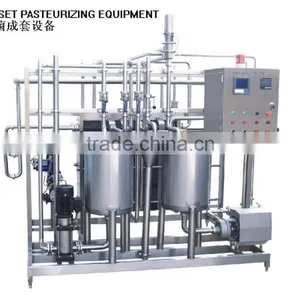

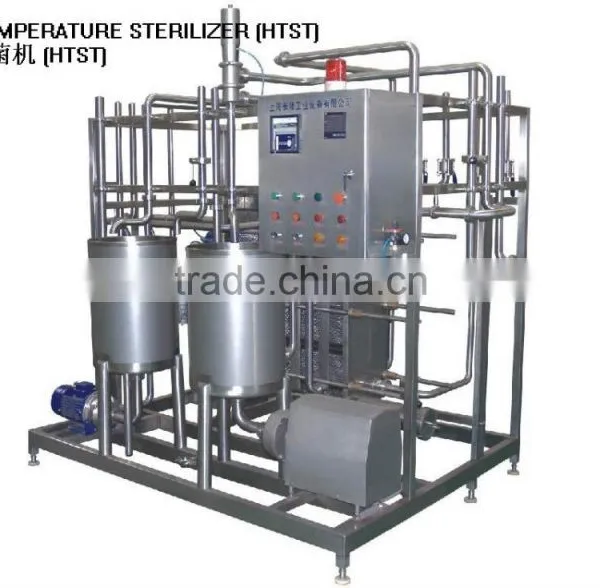

WHOLE SETPASTEURIZING EQUIPMENT
Product description--applicable to heating, sterilization, heat-preservation and cooling etc. technology requirements of fresh milk, fruit beverage and alcohol etc. heat sensitive liquids. The equipment has such features an high heat recovery, energy saving and low consumption, compact structure, simple operation and convenient maintenance etc.
Control methods--semi-automatic control, full-automatic control(PLC control, touch screen display)
Main accessories--material pump, balancing tank, hot water system, temperature controller and recorder, electric control sysem etc.
Production capacity--0.5--50t/h
Sterilizing temperature--85-95 degree
Heat preservation period--15--30s
Technical Parameter
Name | BR1-PUT-8B | BR16-PUT-13B | BR26-PUT-28B | BR26-PUT-52B | |
Production capacity | t/h | 1 | 2 | 5 | 10 |
Heat exchanging area | m2 | 8 | 13 | 28 | 52 |
Temperature of material inlet | ℃ | 5 | 5 | 5 | 5 |
Temperature of material outlet | ℃ | 5 | 5 | 5 | 5 |
Sterilizing temperature | ℃ | 85-95 | 85-95 | 85-95 | 85-95 |
Heat preservation period | s | 25 | 25 | 25 | 25 |
Ice water temperature | ℃ | 1 | 1 | 1 | 1 |
Ice water consumption | multiple | 3 | 3 | 3 | 3 |
Cooling water consumption | multiple | 2 | 2 | 2 | 2 |
Connector size | mm | 32 | 38 | 51 | 51 |
Energy consumption | kw | 3 | 3 | 6 | 10 |
Outline dimensions | mm | 1500*1500*1800 | 1800*2000*1800 | 2200*2000*2000 | 2600*2000*2200 |
shanghaichanglong established in 1996 , specialized in designing and researching various series of .
A. plate heat exchanger and tubular heat exchanger
B. plate type sterilizer :
ice cream whole set equipment fresh milk and yoghurt sterilizer,
juice pasteurizer and UHT sterilizer grape wine sterilizer ,
whipped cream sterilizer , tea beverage UHT sterilizer .
beer pasteurizer , egg liquid pasteurizer ,
yellow wine sterilizer , soysauce/ vinegar sterilizer
C. tubular type sterilizer :
Fresh juice sterilizer , juice UHT sterilizer . ,
aseptic UHT sterilizer , soymilk UHT sterilizer ,
pasteurizer and UHT sterilizer tea beverage sterilizer .
Chili / Tomato Sauce sterilizer honey sterilizer Fruit jam sterilizer
D. degasser unit :
Vacuum degasser , automatic degasser .
E. CIP cleaning system
Split CIP cleaning system . Integral CIP cleaning system
F. stainless steel tanks and vessels etc :
mixing and blending tank , cooling and heating tank ,
(yoghurt ) fermentation tank , (ice cream )ageing tank ,
1-layer tank , 2-layer tank , 3-layer tank
high-shear emulsifying tank
Providing a chain of services including design, manufacturing, installation, commissioning and training etc. for the equipment and projects.
if you have any problem ,please feel free to let me know .
welcome to visit our enterprise and look forward to cooperating with you forever and friendly .--
After-sales service
1. Pre-sale service:
1.1 Our company provide free product technical solution, and give related technical lectures, help customers to meet the need of actual product selection and provide analysis on running economy.
1.2 our company take charge to provide related technology consulting for free, and according to the actual product is free to provide equipment design.
2. Sale service :
2.1 Our company provide installation instructions for the product and free training for the customer to product production technology, can arrange technical personnel door-to-door free training according to the needs of customers.
2.2 our company has excellent after-sales service, strict training to ensure that the user needs.
2.3 During installation, our company will provide technology consulting and equipment installation debugging field training, to ensure the normal use of the customer.
2.4Service hotline: + 86 (21) 33658304 , customers in the operation. Maintenance. The maintenance problems encountered in the process of the hotline service for you at any time.
3. After-sales service :
3.1Our company strictly abide by the after-sales service commitment, boot debugging within 6 months after the quality problem of the non-artificial factors caused by my company responsible for free maintenance (except for normal consumable spare parts)
3.2 Our company promises to provide life-long maintenance for equipment.
3.3 Spare parts, spare parts supply for life .
