Specifications
5 kva 3 phase generatorVolts/Frequency Meters box
ST STC copper,mix copper,aluminum
AVR adjustment,Low noise
ce,iso9001

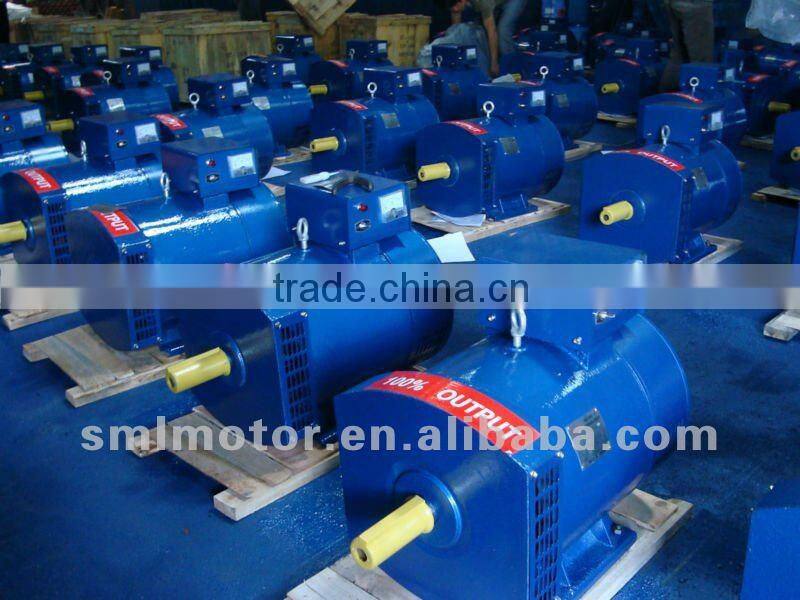

5 kva 3 phase generator
SAINT MEILAN CHINA GOOD GENERATOR FACTORY
---- THE BEST CHOICE FOR YOU !!!
1-100% Copper wire Price ,Mix Copper pirce & Aluminum wire price for choose
2. 60Hz and other types of generator aggregates available as specified by cilent
3. Single/3-phase,with diesel engine ,V B Pulley can be use
Introduction
ST Series generators are mainly designed to serve as power generating unit of small capitity ,which supply electricity for lighting purpose in ships , for house-hold electric devices use in towns or village. The construction of the generator is disproof
ST STC Series Brush Generator Specifications
| Model | Output | Current(A) | Voltage (V) | pole | power | speed(r.p.m) |
| kw | Series conneclion | |||||
| ST-1.5 | 1.5 | 6.5/230 | 13/115 | 4 | 1 | 1500 |
| ST-2 | 2 | 8.7/230 | 17.4/115 | |||
| ST-3 | 3 | 13/230 | 26/115 | |||
| ST-5 | 5 | 21.8/230 | 43.5/115 | |||
| ST-7.5 | 7.5 | 32.6/230 | 65.2/115 | |||
| ST-12 | 12 | 52.2/230 | 104/115 | |||
| ST-15 | 15 | 65.3/230 | 130/115 | |||
| ST-20 | 20 | 87/230 | 174/115 | |||
| Model | Output | Current(A) | pole | speed(r.p.m) | |
| kw | KVA | ||||
| STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
| STC-5 | 5 | 6.3 | 9 | ||
| STC-7.5 | 7.5 | 9.4 | 13.5 | ||
| STC-10 | 10 | 12.5 | 18.1 | ||
| STC-12 | 12 | 15 | 21.7 | ||
| STC-15 | 15 | 18.8 | 27.1 | ||
| STC-20 | 20 | 25 | 36.1 | ||
| STC-30 | 30 | 37.5 | 54.1 | ||
| STC-40 | 40 | 50 | 72.2 | ||
| STC-50 | 50 | 62.5 | 90.2 | ||
ST STC Series packed into 1*20FT (Use Cartons or Wooden case Packing depends on cilent)
Warranty:
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date. During the guarantee period, our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.
