hight quality 3W cob led downlight zhongshan manufacting

Model name:

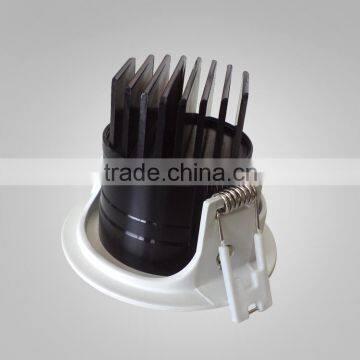

LED downlight DOL301 3W

Features:

• Warranty: 1 years
• MOQ: 500 Pieces, low quantity is acceptable
• OEM service is also offered
• No UV or IR Radiation
• Materials: aluminum + glass
• Product Color: silver
• Life Span: ≥50000 hours
• Working Temperature: -30 to 40 °C
• Working humidity: 10%-90%

 Packing of led commercial downlight led bulb led light:

Model number	DLB351(7W)_(90-130V/200-240V)	DLB401(12W)_(90-130V/200-240V)	DLB501(15W)_(90-130V/200-240V)	DLB601(15W)	DLB801(30W)
Power	7W	12W	15W	15W	30W
Luminous flux	630 lms	1080 lms	1350 lms	1350 lms	2700 lms
Color temp	2900-6500K	2900-6500K	2900-6500K	2900-6500K	2900-6500K
Dimension	3.5''	4''	5''	6''	8''
Open Hole	D= 87 mm	D= 108 mm	D= 140 mm	D= 155 mm	D= 200 mm
IP Rating	IP20	IP20	IP20	IP20	IP20
CRI	≥80	≥80	≥80	≥80	≥80
Beam Angle	90 degrees	90 degrees	90 degrees	90 degrees	90 degrees
LED	SMD2835	SMD2835	SMD2835	SMD2835	SMD2835
Material	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC
N.W	0.12kg	0.20kg	0.35kg	0.35kg	0.5kg
Warranty	3 years	3 years	3 years	3 years	3 years
Certification	CE/RoHS	CE/RoHS	CE/RoHS	CE/RoHS	CE/RoHS

Model number	DOB3507(7W)	DOB409(9W)	DOB515(15W)	DOB620(20W)	DLG407(7W)	DLG509(9W)
Power	7W	9W	15W	20W	7W	9W
Luminous flux	630 lms	810 lms	1350 lms	1800 lms	630 lms	810 lms
Color temp	2900-6500K	2900-6500K	2900-6500K	2900-6500K	2900-6500K	2900-6500K
Dimension	DxH=86x60 mm	DxH=110x70mm	DxH=138x85mm	DxH=160x95mm	DxH=110x60mm	DxH=120x75mm
Open Hole	D= 71 mm	D= 93 mm	D= 118 mm	D= 140 mm	D=91 mm	D=101 mm
IP Rating	IP20	IP20	IP20	IP20	IP20	IP20
CRI	≥80	≥80	≥80	≥80	≥80	≥80
Beam Angle	90 degrees	90 degrees	90 degrees	90 degrees	90 degrees	90 degrees
LED	COB	COB	COB	COB	SMD2835	SMD2835
Material	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC
N.W	0.13kg	0.23kg	0.35kg	0.46kg	0.15kg	0.23kg
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Certification	CE/RoHS	CE/RoHS	CE/RoHS	CE/RoHS	CE/RoHS	CE/RoHS

Model number	DSM407(7W)	DSM412(12W)	DSM512(7W)	DSM515(15W)	DSM715(15W)	DLG612(12W)
Power	7W	12W	12W	15W	15W	12W
Luminous flux	630 lms	1080 lms	1080 lms	1350 lms	1350 lms	1080 lms
Color temp	2900-6500K	2900-6500K	2900-6500K	2900-6500K	2900-6500K	2900-6500K
Dimension	DxH=113x54mm	DxH=146x54mm	DxH=113x54mm	DxH=113x54mm	DxH=193x60mm	DxH=145x76mm
Open Hole	D=88 mm	D=88 mm	D=113 mm	D=113 mm	D=158 mm	D=123 mm
IP Rating	IP20	IP20	IP20	IP20	IP20	IP20
CRI	≥80	≥80	≥80	≥80	≥80	≥80
Beam Angle	90 degrees	90 degrees	90 degrees	90 degrees	90 degrees	90 degrees
LED	SMD2835	SMD2835	SMD2835	SMD2835	SMD2835	SMD2835
Material	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC	Aluminum+PC
N.W	0.14kg	0.14kg	0.22kg	0.22kg	0.37kg	0.28kg
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Certification	CE/RoHS	CE/RoHS	CE/RoHS	CE/RoHS	CE/RoHS	CE/RoHS

Delivery & payment:

• Loading port: Shenzhen, China
• Delivery time: 15- 30 days(depend on your quantity)
• Standard export packing; or according to your own design
• T/T in advance, 30% deposit and 70% balance payment before shipment.

Application:

-Supermarket, hotel, house, exhibition hall, work shop, warehouse, club, stage, plaza, gallery etc.

-Gymnasium, museum, commercial buildings, mosque etc.

 Company information:

Elecluz Industrial Co. was established in Hong Kong in 1992 ,which has been doing various led lighting products with its own brand "DeLEDZ" for more than 10 years. OEM/ODM are available.Product lines cover  LED wallpack,LED canopy light,LED highbay light, LED low bay light, LED street lights,LED bulbs, LED spotlights, LED downlights, LED pool lights,LED tubes, dimmable energy saving lamps and so on. Many products are  DLC/UL/cUL approved  (UL No.E351676). ELECLUZ has its own  manufature facory in Zhongshan,Guangdong.
