Specifications
1Working area: 1300*2500*250mm2Spindle:5.5KW water cooling
3Table structure:vacuum table and T-slot
4Body structure:welding
Professional CNC Woodworking Machine M25 with ATC System
CNC Router Application:
Woodworking: three-dimensional wave plate processing, milling engraving of cupboard door, craft wood door, paint-free door, screen and craft window, mainly used for producing cupboard door, solid wood and furniture and cutting MDF.
Woodworking Machine Spec.&Description:
X Working Area |
1300mm |
Y Working Area |
2500mm |
Z Working Area |
250mm |
Table size |
1300x2500mm |
Traveling Positioning Accuracy |
±0.05mm |
Repositioning Positioning Accuracy |
±0.05mm |
Table Surface |
By suction |
X,Y ,Z Structure |
XY gear wheel, Z ball screw |
Max. Power Consumption(Without spindle) |
1.84KW |
Max. Rapid Travel Rate |
25000mm/min |
Max. Working Speed |
15000mm/min |
Spindle |
5.5kw water cooled ATC spindle |
Spindle Speed |
0-24000r/min |
Drive Motor |
KNSK servo |
Driver |
KNSK servo |
Command |
G-code*.u00*.mmg*.plt |
Working voltage |
AC380V/60Hz |
Control System |
NK200+hand wheel |
Guide rail |
25 Square rail (TAIWAN BRAND:TBI) |
Control cabinet |
Independent cabinet |
N.W./G.W. |
1700/1850KGS |
Packing Size |
3200*2150*1850mm |

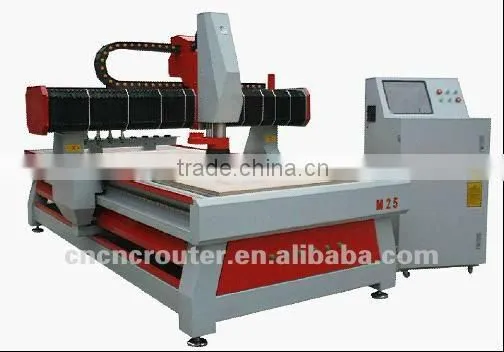

Cnc furniture machines photo
Carving wood machine feature
This type of machine adopts following auto tool changing system. The tool changer follows the gantry and it can be put on both ends of the lathe bed.
1. Whole machine adopts seamless welded steel structure, high loading capacity, low deformation. Imported linear square orbit with high precision can stand a lot of wear and tear and make the machine work smoothly and steadily.
2. In-line arrangement auto tool changing system. Tool changing time is less than 20 seconds, saving time and improving production efficiency.
3. Split keyboard operation: easy, convenient to operate. Consumers can master the method of application immediately.
4. Advanced NCStudio system, intelligent processing cross-border protection: to prevent mechanical collision phenomenon caused by layout's crossing the processing table. Intelligent processing speed control: control speed respectively, improve processing efficiency, prolong cutters’ life span, increase finished products ratio.
5.Advanced file preprocessing function: help consumers correct mistakes in processing files promptly and has good compatibility with code that produced by Type3/Artcam/Mastercam/Caxa, etc. Advanced 3D curve forecasting algorithm: line smoothly, ensure the speed and precision of curve working.
6.Dust absorption equipment: inhale sawdust and foam, cleaning the table and maintain the machine indirectly. Six zones vacuum table: absorb boards in diverse sizes, replace previous mechanical board fixing, shorten the time sheet.
7.Break point and break knife continue engraving function, back to the origin of the automatic error correction function: ensure the processing precision in long time work.
Engraving machines Sample

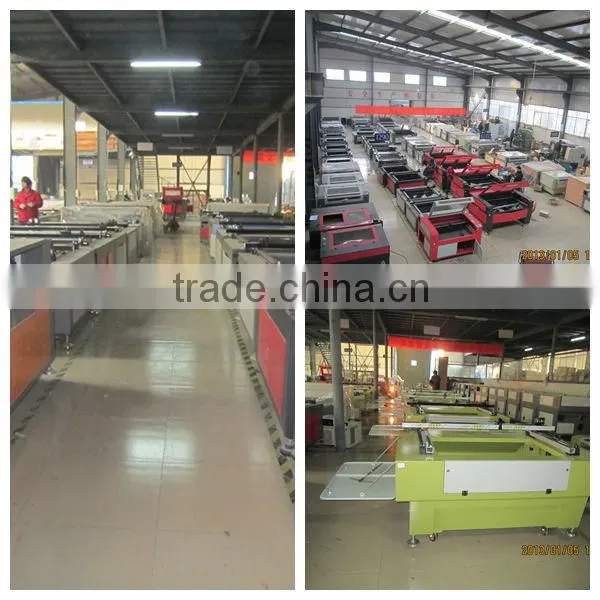

Factory Views
More informations of CNC Router, Please feel free contact us directly.
