Specifications
CNC Table Moving Processing Center1.ATC system
2.Combination drills
3.90 turning saw blade
4.Automatic tool setting pla

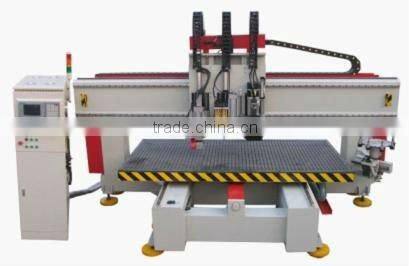

CNC Table Moving Processing Center /Combination drills/90º turning saw
Features:
1.This machine adopts table moving cutting way, the fixed gantry guarantees the strength and stability.
2.The body of machine adopts welded large-scale steel tube, processed by high temprature, ensuring low deformation, high rigidity and high strength.
3.Multi-head,vertical and horizontal platoon drills and 90 turning cutters make a complete automatic processing system in door craft.Multi spindles are set with imported umbrella-typed tool changer which has 8 different types of cutters.Specially used tool setting table can accurately make up for the error that caused by cutters.
4.Adopt Japanese Yaskawa servo motor.Gear wheel with high precision.The lathe bed has advantages of tability, low noise, fast speed and high positioning accuracy.
5.The table adopts extremely strong board which is milled for one time.It has a quite stong adsorption force at the dust extraction system.
6. Self oiling system. Easily finish maintenance regularly with slightly press.
Performance Parameters:
Type of machine |
Table moving processing center1325 |
Max engraving speed |
25000mm/min |
Max rapid travel rate |
60000mm/min |
Precision and clamp way |
<0.1/300mm vaccum adsorption and screw lever |
Spindle motor |
9kw HSD air cooling, 6000-24000rpm |
Working area |
1300x2500x230mm |
Combination drills |
Italian platoon drills Axis05c |
90 turning saw |
Italian turning saw |
Driving type |
XY gear wheel at 6 level of precision, Z ball screw |
Operation system |
Taiwan Syntec |
Drive and motor |
Yaskawa servo motor0.85kw |
Working voltage |
AC380V/50HZ |
Application Fields:
This machine is especially suitable for professional and large factories which produce door, cabinet, etc. It can be applied to engrave and cut on solid wood and MDF, and also craft like 3D relief.
Samples:
Certificates:
CNC Table Moving Processing Center/Combination drills/90 turning saw
