Specifications

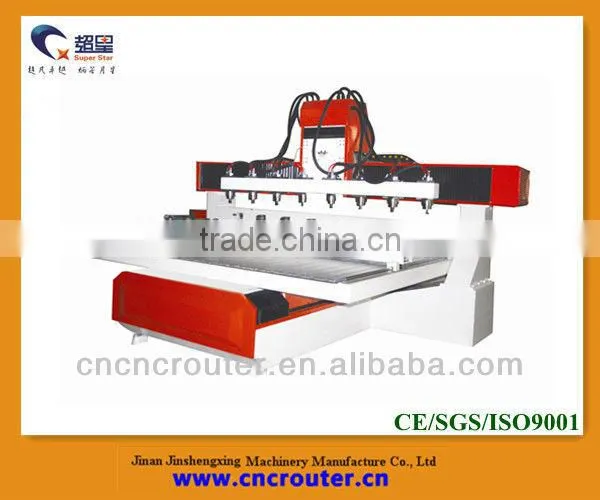

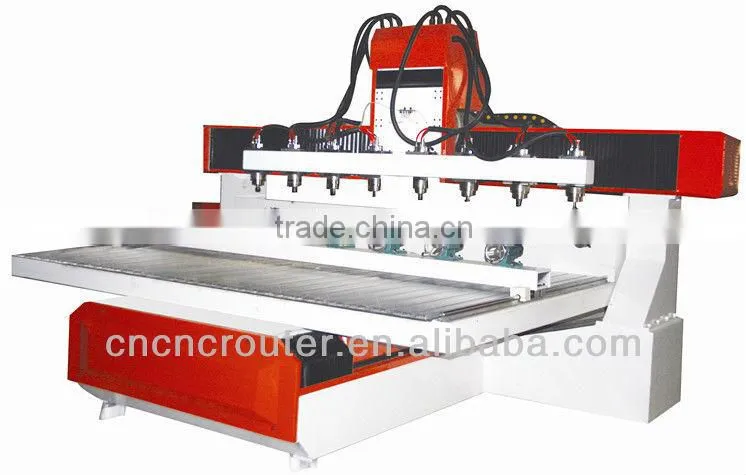

Multi spindle cnc router1 CE
2 servo motor

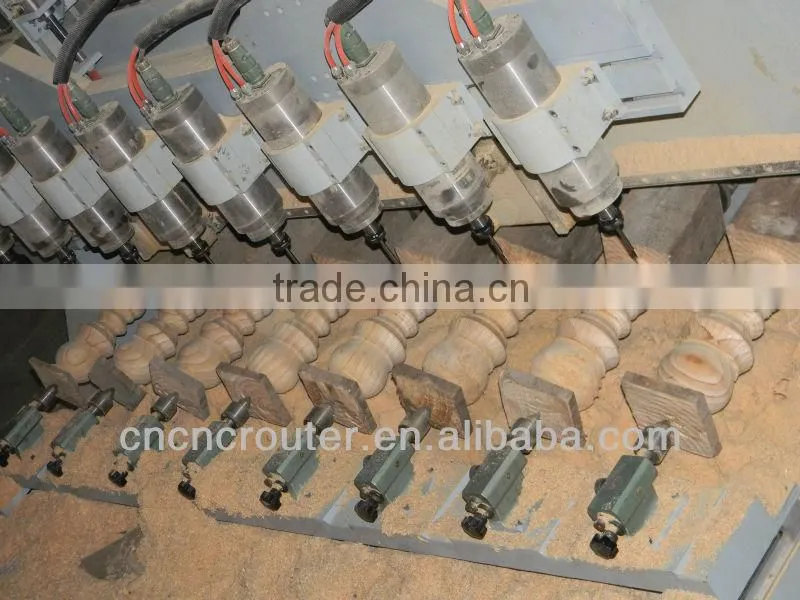

3 can engrave 8 cylinders at one time
This Multi spindle cnc router has the following features:
1. Three axis adopts imported ball screw so as to improve the working accuracy greatly.
2. It can process the work piece on the rotary clamp and on the flat table
Technical Specification
Model |
CX1325 |
X, Y axis working area |
1.3m long * 2.5 wide |
Max. Cylinder diameter |
300mm |
Max. Cylinder length |
1m |
Spindle power |
2.2KW—4.5KW |
Spindle rotary speed |
0-24000rpm |
Working voltage |
380V/ 50-60HZ |
Working accuracy |
± 0.05mm |
Repositioning accuracy |
± 0.05mm |
Working speed |
4-12m/min |
Machine weight |
1.6t |
WARRANTY: ONE YEAR
Certificate: CE, ISO
Produce time: 15 working days after getting the deposit
We will be happy to service your inquiry with either our standard items or custom-made orders. Please do not hesitate to contact us with your detailed inquiry. We will put forth every effort to provide you with the most profession service and products that will meet the most demanding requirements.
Certificate
ISO9001 CE
Packaging
