Help Center4 Heads Cylinder Wood Engraving Machine (best Seller and New Patent Invention )
Related Products
-
Double-Spindle Double-Rotary Engraving MachineUS$ 3,000 - 15,000MOQ: 1 Set -
Chinese 3d 4 Axis CNC Router Engraving Milling MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
Cnc Rotary Die Making Machine CX-1325US$ 4,000 - 14,000MOQ: 1 Set
-
Cnc Milling Machine Rotary Table CX-1325US$ 4,000 - 14,000MOQ: 1 Set
-
CX-9015 CNC Router Engraving Machine With RotaryNegotiableMOQ: 1 Set
Specifications
1.180 degree turnning spindle
2.Multi-heads CNC Relief engraving machine .
3.Moving arm control panel ,easy to operate

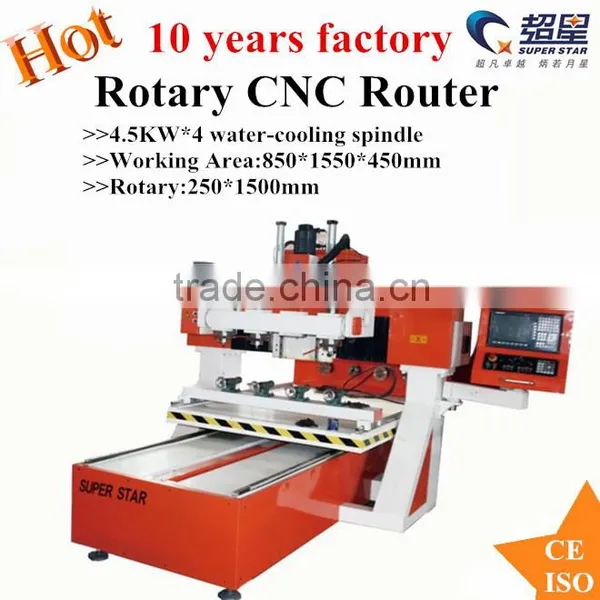

CNC Rotary Engraving Machine
Feature:
The four spindles can turn 180° automatically in order to reach coarse and fine engraving at one time.
It can engrave 4 wood materials at one time, which greatly increasing the working efficiency.
It can do not only column engraving but also flat engraving.
Application:
This machine is mainly used to process wood relief and engrave 3D column materials.
Specification:
X, Y working area | 1300*1500mm |
Z working area | 300mm |
Max. column size for one spindle | 300* 1200mm |
Max. board size for one spindle | 250*1500mm |
Spindle power | 2.2KW*4 |
Spindle rotary speed | 0-24000r/min |
Working speed | 4-12m/min |
Working voltage | AC 380v |
Control system | Original Ncstudio control |
Drive motor | China-made servo motors |
XYZ Structure | Imported ball screw and square guide way |
software | JDpaint software |

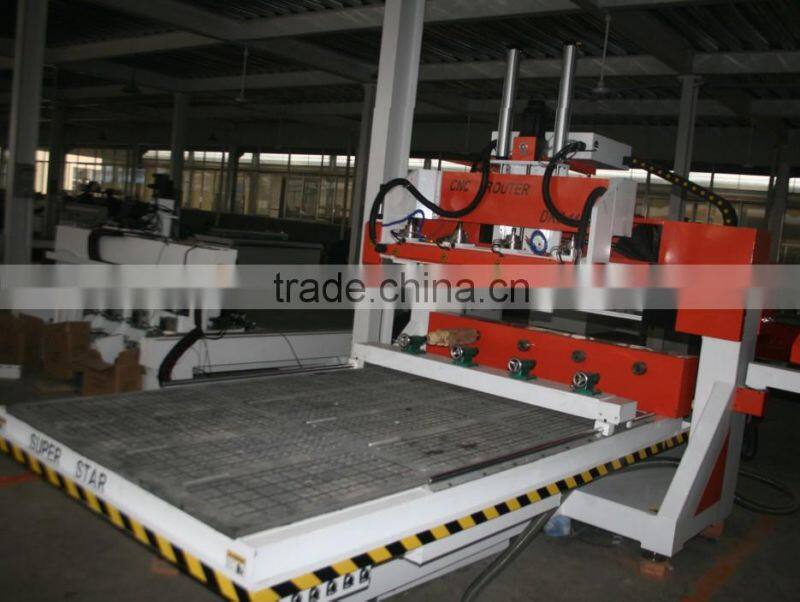

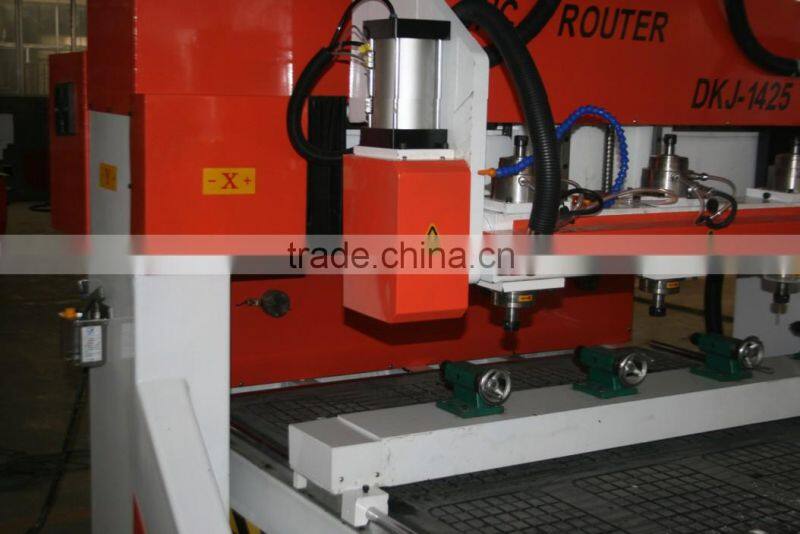

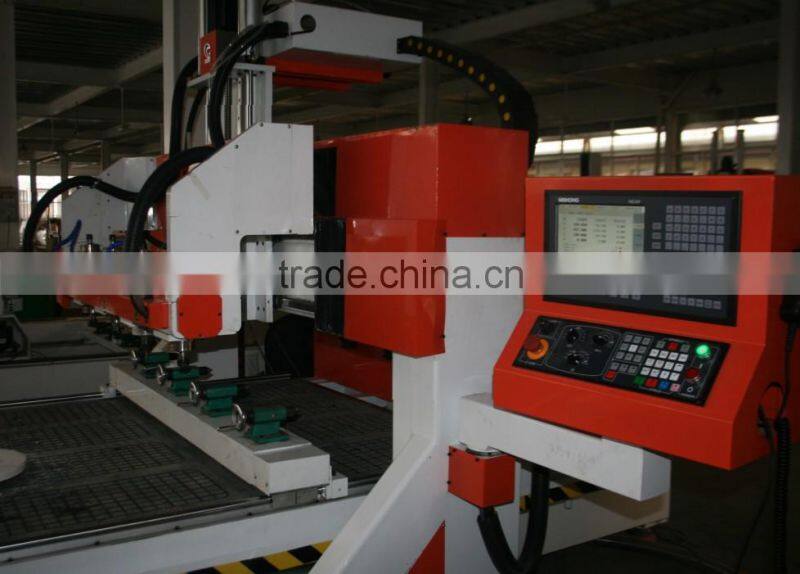

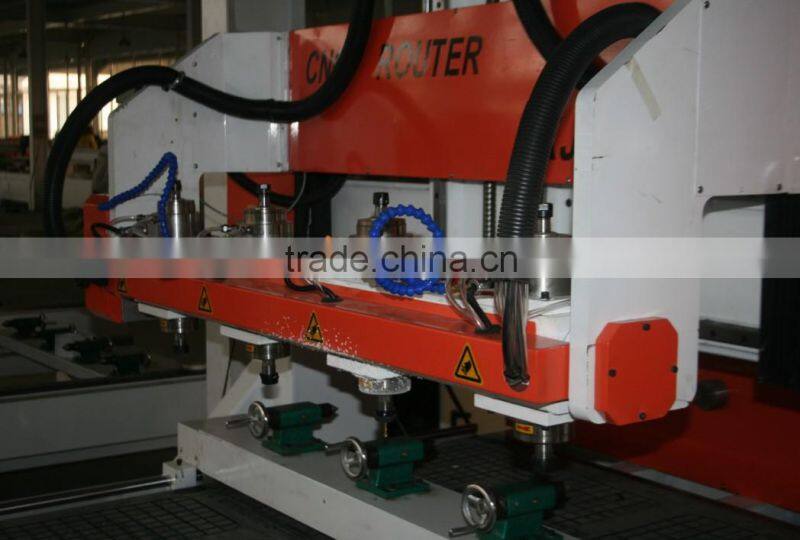

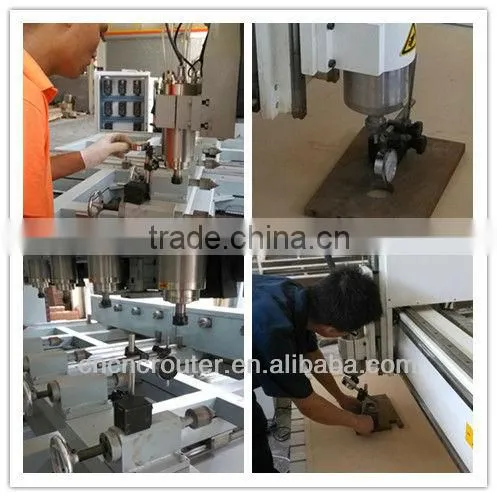

CNC Rotary Engraving Machine part view:
