Specifications

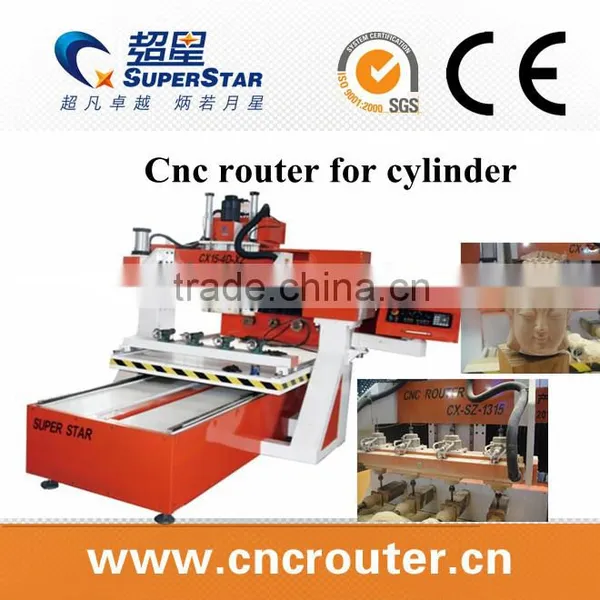

4 axis cnc rotary engraver for chair legs1.1300*1500mm working area
2.2.2kw*4 water cooling spindle
3.CE ISO SGS

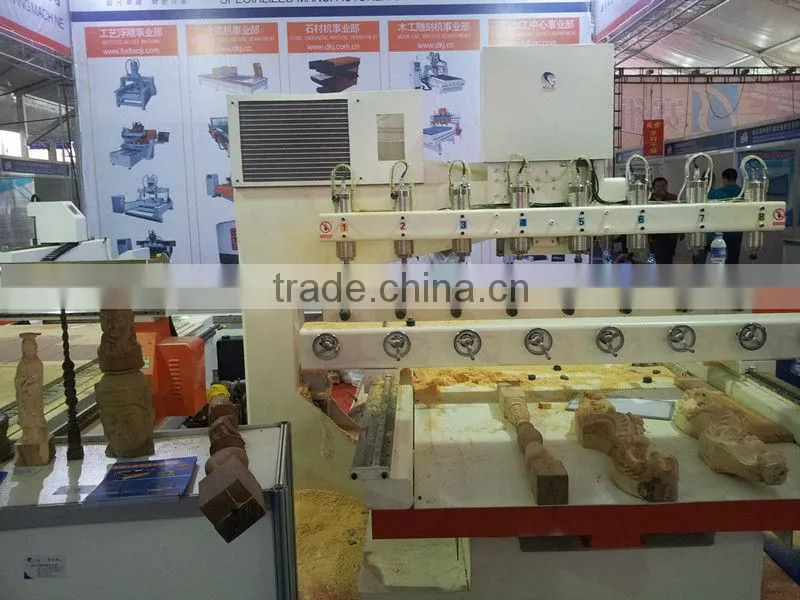

factory sales 4 axis cnc rotary engraver for chair legs
This 3d wood cnc machine has the following features:
1. the machine can engrave 4 woods at one time
2. you can install a flat table over the 4 rotary, making flat engraving
3. adopting servo motors, little generating heat after long-time work, high stability
4. adopting Ncstudio 4-axis control system
5. adopting imported TBI square guide rail, making machine move stability and long lifetime
Application:
processing wood cylinder like table legs, chair legs, stair rails and so on.
Also making relief on the flat table.
Specification:
CNC Rotary end 4 Heads Engraving Machine CX-1315
Characteristics:
1.high efficiency
2.high accuracy
3.fast speed
Technical Parameters:
Quotation Sheet | |
|
CX1315 CNC Router Machine
|
PRICE: USD20,000/set FOB Qingdao port MOQ: 1 set Payment: T/T---30% in advance, 70% balance against copy of B/L Packaging: standard export package Delivery: 25 working days after getting the deposit Warranty: one year Certificate: CE,ISO, SGS, FDA |
Model |
CX1315 |
Working size |
850*1550*450mm |
Working size for single rotary clamp |
250*1500mm |
Body structure |
Steel structure |
Working table |
Aluminum profile |
Working accuracy |
±0.05mm |
Repositioning accuracy |
±0.05mm |
Traveling speed |
25m/min |
Working speed |
15m/min |
spindle |
4.5KW*4 water cooling spindle |
Spindle rotary speed |
0-24000rpm |
Control system |
NK300 NCstudio controller |
Drive and motor |
Taiwan Delta Servo |
Transmission mode |
imported thickening ball screw and square guide way for transmission |
Working voltage |
AC380V/50HZ |
Max. power consumption(without spindle) |
1,840KW |
Command language |
G-code,*u00,*mmg,*plt |
Software |
Type3 or Wentai |
Cutters |
10 pieces with diameter of 6 and 12.7 |
Collets |
2 pieces |
Dust collector |
Yes |
Oiling system |
manually oiling |
Warranty: one year
Certificate: CE, ISO9001:2008, SGS
Produce time: 15 working days after getting the deposit
Payment: T/T—50% t/t in advance, 50% t/t after seeing the copy of B/L
Packaging: strong wooden case to avoid damage
MOQ: 1 set
We will be happy to service your inquiry with either our standard items or custom-made orders.
Please do not hesitate to contact us with your detailed inquiry.
We will put forth every effort to provide you with the most profession service and products that will meet the most demanding requirements.
If you have interest in the machine and want the working video, please feel free to email us.
If you have interet in being our agent. Please don't hesitate t0 contact with us. We will give your biggest discount and help.
Trademanager 24 hours online,please contact me anytime!!
