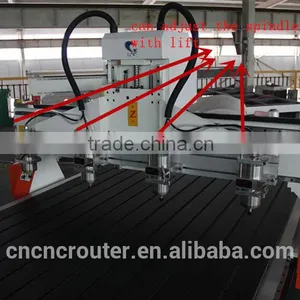

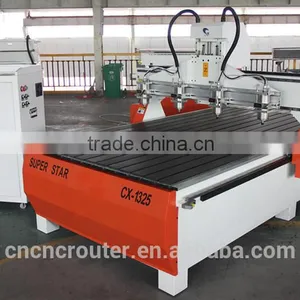

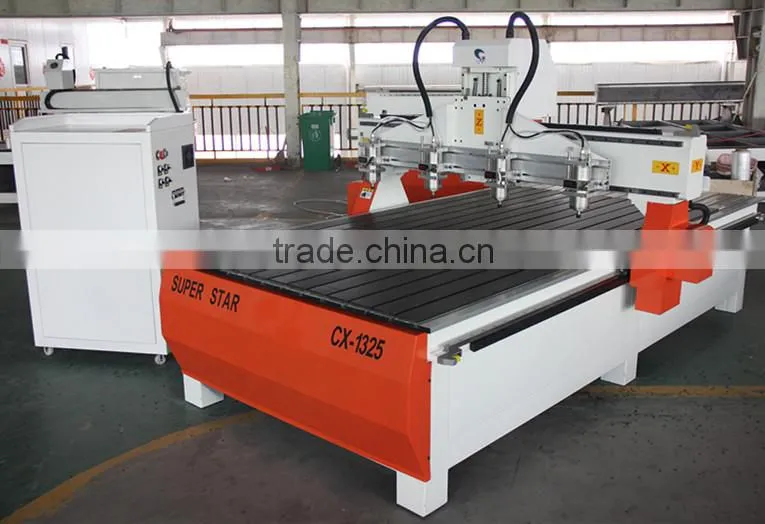

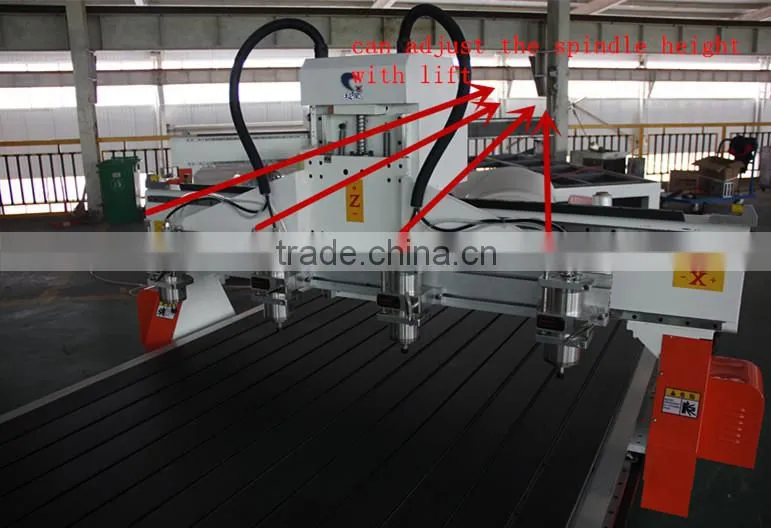

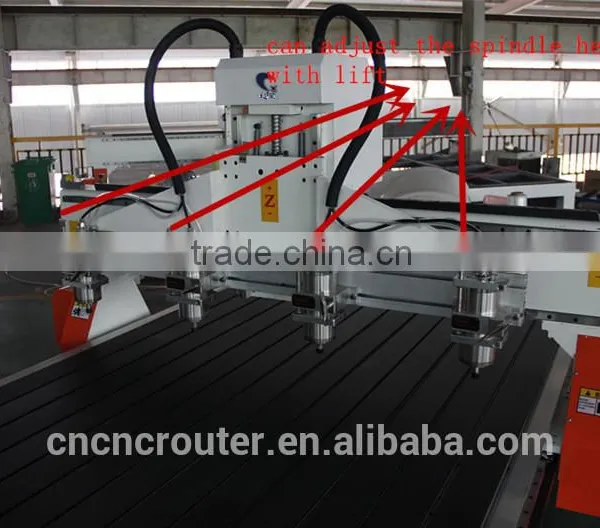

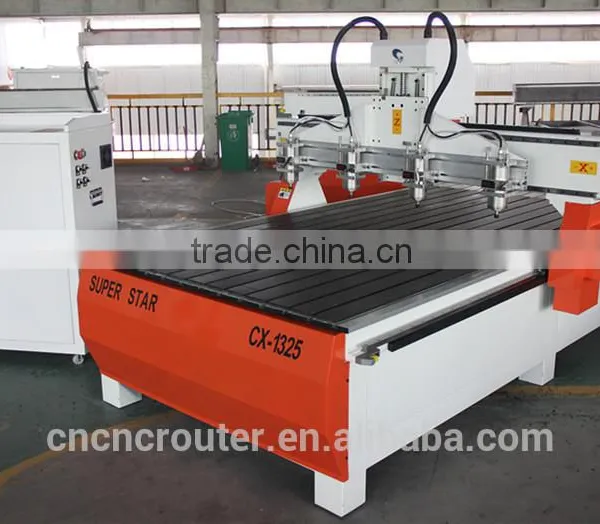

3D wood carving machine 3d relief engraving machine with 4 head
X,Y,Z working area |
1300x2500x200mm |
X,Y,Z Traveling positioning accuracy |
±0.03/300mm |
X,Y,Z Repositioning positioning accuracy |
±0.03mm |
Lathe bed frame |
Steel square tubes |
X,Y Structure |
Rack drive, Taiwan TIB guide |
Z Structure |
Germany Ball screw and Taiwan TBI guide |
Drive motors |
Stepper system |
Max power comsumption |
(without spindle)2.0KW |
Max rapid travel rate |
22000mm/min |
Max working speed |
15000mm/min |
Spindle power |
2.2kwx4sets |
Spindle speed |
0-24000RPM |
Spindle inverter |
FoLing inverter |
Working voltage |
AC220V/50/60Hz,3PH(Option:380V) |
Command language |
G Code |
Operatiing system |
DSP |
Computer interface |
USB |
Flash memory |
128M(U Disk) |
Collet |
ER25(3.175/4/6mm. Optional ) |
X,Y Resolution |
<0.02mm |
Software compatiliby |
Type3/Artcam/Ncstudio/Ucancam/JDpaint etc software |
Running environment temperature |
0-45 centigrade |
Relative humidity |
30%-75% |
Mini order quantity |
1 set |
warranty |
1 year |
Delivery time and payment |
7-30 days after get 30% payment by T/T(option:the third party alibaba ESCROW) |
Optional parts |
1.Air cooling spindle (HSD) or water cooling spindle 2.Taiwan Syntec system and Delta inverter 3.Japan Yaskawa/800w or Panasonic/750w servo motors 4.Vacuum pump(Germany Becker or chinese water and free oil pump) 5.Rotary system 6.Dust collector 7.Sink and water cooling system |
Quality Control |
1.Strect control machine assembly each link,ensure the machine clean and beautiful. 2.48 hours continuous work before the machine leave the factory, ensure high quality of the machine. |
After sales service |
1.24 hour technical support by email,calling or MSN 2.Uer-friendly english manual and vedio for machine using and maintaining. 3.Our machines obtain CE and ISO9001 certificate. |

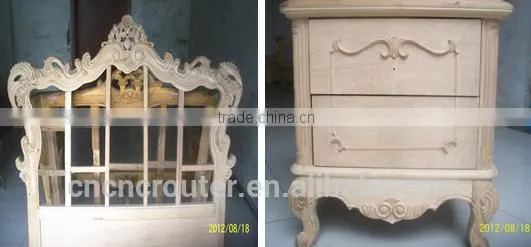

1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.

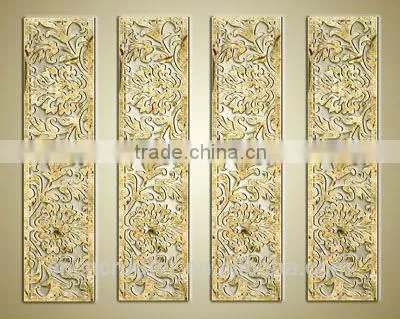

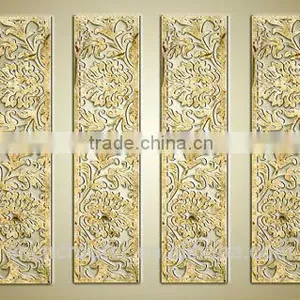

5. Architectural models: engraving fine window, fencing and wall patterns, etc.
6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
7. Label: engraving character, number, and other pattern on label for products and on product directly.
