Help CenterChina Jinan Metal Processing Machine With Super High Precision and One Year Guarantee
Related Products
-
Metal Badge Making Machine CX-6090NegotiableMOQ: 1 Set -
China Jinan Metal Plate Engraving Machine With Super High PrecisionNegotiableMOQ: 1 Set
-
High Rigidity Metal Mould Engraving Machine,CNC Router,cnc Machine for 3D Engraving CX-6060NegotiableMOQ: 1 Set
-
Metal Mould CNC Engraving Machine(totally-enclosed Type )with High PrecisionNegotiableMOQ: 1 Set
-
China Metal Plate Engraving Machine With Super High Precision Ball Screws and Square Guide WayNegotiableMOQ: 1 Set
Specifications
metal processing machine1. CE ISO certificate
2. one year quality warranty
3. high precision
CX400 Metal Engraving CNC Machine
This metal processing machine has the following features:
1). whole cast iron structure, and cast iron table
2). high-performance NCstudio control system
3). imported Panasonic servo drive motor
4). APPA C3-grade ball screw transmission
5). TBI high-accuracy SP-grade square guide way
6).2.2KW water cooling spindle
7). adopting JDpaint software
8). can be customized according to your requirements
Applications:
1. Mainly suitable for high-precision mould industry, toy industry, and art & craft industry, etc.
2. Applicable for processing copper electrode, mini stamping mould, gold stamping mould,
hardware mould, rubber mould and so forth.
3. Also can be used for processing moulds of watch accessories, glasses, jewelry, etc.
Technical Specification
Model |
CX400 |
X,Y Working area |
400×300mm |
Z Working area |
180mm |
Feeding Height |
240mm |
Table Size |
440×440mm |
Lathe Structure |
Cast Iron |
Working Accuracy |
0.01mm |
Repositioning Accuracy |
0.008mm |
Spindle Power |
2.2KW |
Spindle Rotating Speed |
0-24000rpm/min |
Control System |
NCSTUDIO |
Drive System |
Servo |
Max. Travelling Speed |
12m/min |
Max. Working Speed |
8m/min |
Working Voltage |
AC220V/50HZ |
Machine Weight |
1.5t |
Machine size |
830*800*1450mm |
Warranty: one year
Certificate: CE, ISO9001:2008
Produce time: 15 working days after getting the deposit
Payment: T/T—50% t/t in advance, 50% t/t after seeing the copy of B/L
Packaging: strong wooden case to avoid damage
MOQ: 1 set
We will be happy to service your inquiry with either our standard items or custom-made orders. Please do not hesitate to contact us with your detailed inquiry. We will put forth every effort to provide you with the most profession service and products that will meet the most demanding requirements.
If you have interest in the machine and want the working video, please feel free to email us.

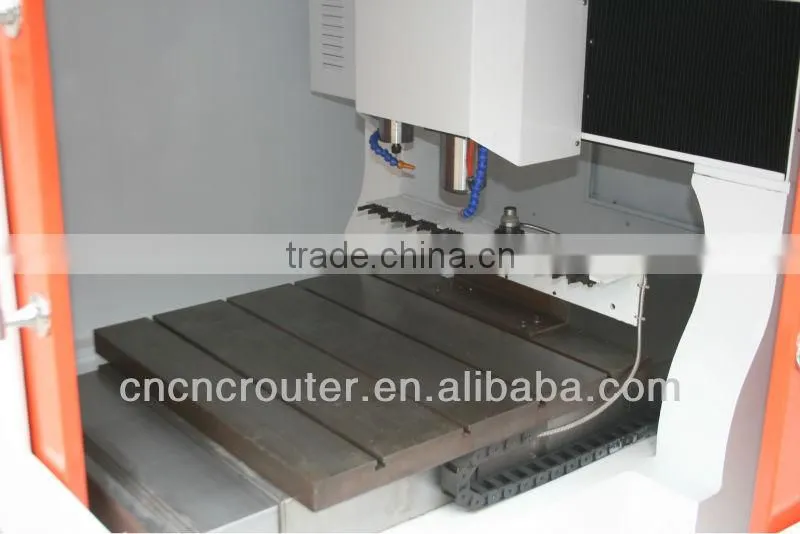

Table:
LNC control system
High presicion APPA C3-grade ball screw
Certificate:
ISO CE
Packaging

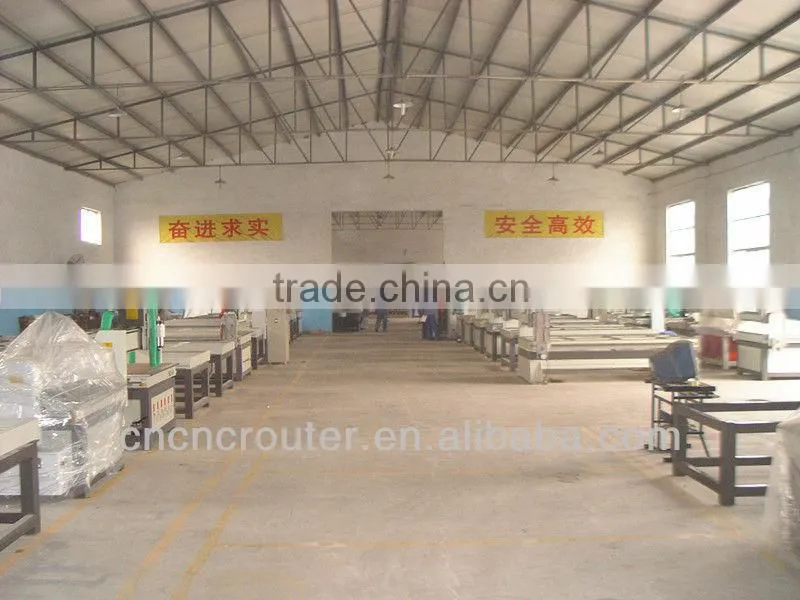

Workshop
