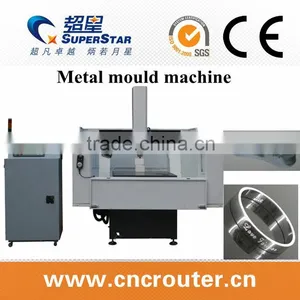

Shoe Mould MJ5040 metal engraving

FOB Price

USD $5,000 - $9,200 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	superstar
Model Number:	MJ-5040	Feeding Height:	200mm	Application:	620x620mm
Dimensions:	640x640x300mm	Certification:	CE/ISO9000/SG	Warranty:	one year
After-sales Service Provided:	Engineers available to service machinery overseas

Features:

1.The machine body structure adopt cast iron steel engraving machine

2.Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc

3.. double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide, .

4.Available for continuous work for a long time.

Technical Parameters:

NO. Description		Parameter
1	Model	MJ-5040
2	working area(mm)	500*400mm
3	Zaxis working area(mm)	200
4	Working accuracy	<=0.02mm
5	Location accuracy	<=0.01mm
6	Working voltage	AC220V/50HZ
7	Working speed	8m/min
8	XYZrepositioning accuracy	0.008mm
9	XYZTraveling positioning accuracy	0.01mm
10	Spindle	1.5kw constant power
11	control system	NC studio control system+hand wheel+tool setting gauge
12	Guide	P grade square linear guide
13	Ball screw	TBI C5 Ground Ball Screws
14	Body	cast iron structure
15	Software	WENTAI ,Type 3,UG
software		English software v9

sample

factory

Packaging & Shipping

PRO Manufacture of CNC Router Machine Since 2003

**************************************************************************************

Jinan Jinshengxing Machinery Manufacture Co.,Ltd

Add: Daliu Industrial Park,Daqiao Town,Tianqiao District, Jinan,Shandong,China

TEL: +86-531-869 720 93 | FAX: +86-531-869 729 60

Skype: luckydoglele | Mobile: 0086-135 831 845 52

Jinan Jinshengxing Machinery Manufacture Co., Ltd.: Contact nameJin Sheng Xing Machinery; Phone86-531-86972093; AddressDaliu Village, Daqiao Town, Tianqiao Dist.
