Cnc Marble Engraving Machine Cnc Router CX1325

Specifications

cnc marble engraving machine
1.Whole cast iron structure
2.Imported square orbits,imported ballscrew
3.DSP control system

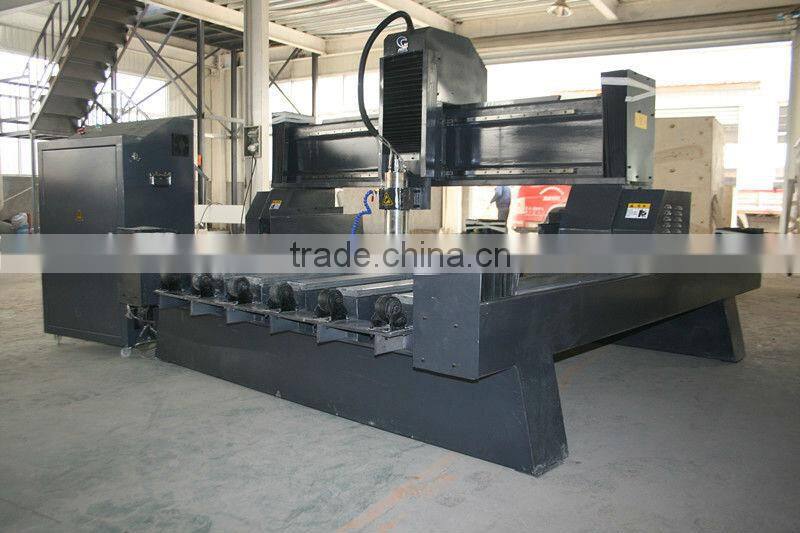

                                 cnc marble engraving machine cnc router CX1325





This series of models are mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving melting material.

Feature:
1.X,Y,Z three-axis all the imported linear square orbit .
2.X,Y,Z three-axis all have the waterproof, dustproof system
3.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone
4.Adopt Taiwan transducer with stable output signals
5.Fully sgielded,bending circuity, and imported electronic components.
6.Adopt double drivers to drive y axis, motivity is more stronger
7.Whole seamless steel structure,can load weight up to 1000kg

Performance Features:
1.Three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .
2.Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3.Constant power spindle and motor,hightly cutting capability ,high efficiency.
4.Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
5.Double direction cutters cooling system can prolong the lifetime of using.
6.High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.



Thechnical Specifications:





Performance parameter	9015	1218	1325
X,Y Working area	900mmx1500mm	1200mmx1800mm	1300mmx2500mm
Z Working area	200mm	200mm	200mm
Table size	1100mmx2000mm	1400mmx2300mm	1400mmx2900mm
Processing precision	0.05mm	0.05mm	0.05mm
Reposition precision	0.02mm	0.05mm	0.05mm
Table structure	aluminium	aluminium	aluminium
X,Y,Z structure	X,Y,Z ballscrew	X,Y,Z ballscrew	X,Y,Z ballscrew
Command	G CODE	G CODE	G CODE
Machine power	2KW	2KW	2KW
Max processing speed	6000mm/min	6000mm/min	6000mm/min
Max speed	8000mm/min	8000mm/min	8000mm/min
Working voltage	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
Spindle power	5KW	5KW	5KW
Spindle rotating speed	0-24000rpm/min	0-24000rpm/min	0-24000rpm/min
Drive motor	Stepper	Stepper	Stepper
Operation system	PCI CARD control	PCI CARD control	PCI CARD control







Delivery TIME: 15 days after receiving the deposit







Payment Terms: T/T 30% in advance, then 70% when you receive the copy of the B/L of the shippment







Packaging: Strong smoke freed wooden box













            Trademanager 24 hours online,please contact me anytime!!
