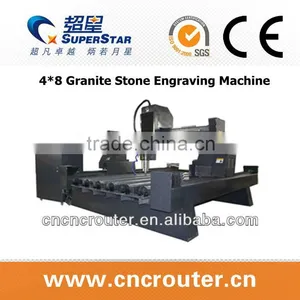

This series of models are mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving melting material.
Feature:
1.X,Y,Z three-axis all the imported linear square orbit .
2.X,Y,Z three-axis all have the waterproof, dustproof system
3.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone
4.Adopt Taiwan transducer with stable output signals
5.Fully sgielded,bending circuity, and imported electronic components.
6.Adopt double drivers to drive y axis, motivity is more stronger
7.Whole seamless steel structure,can load weight up to 1000kg
Thechnical Specifications:
Performance parameter | 9015 |
X,Y Working area | 900mmx1500mm |
Z Working area | 250mm |
Table size | 1100mmx2000mm |
Processing precision | 0.05mm |
Reposition precision | 0.02mm |
Table structure | aluminium |
X,Y,Z structure | X,Y,Z ballscrew |
Command | G CODE |
Machine power | 2KW |
Max processing speed |
Max processing speed
|
Max speed | 8000mm/min |
Working voltage | AC380V/50Hz |
Spindle power | 5.5KW |
Spindle rotating speed | 0-24000rpm/min |
Drive motor | Stepper |
Operation system | PCI CARD control |
:

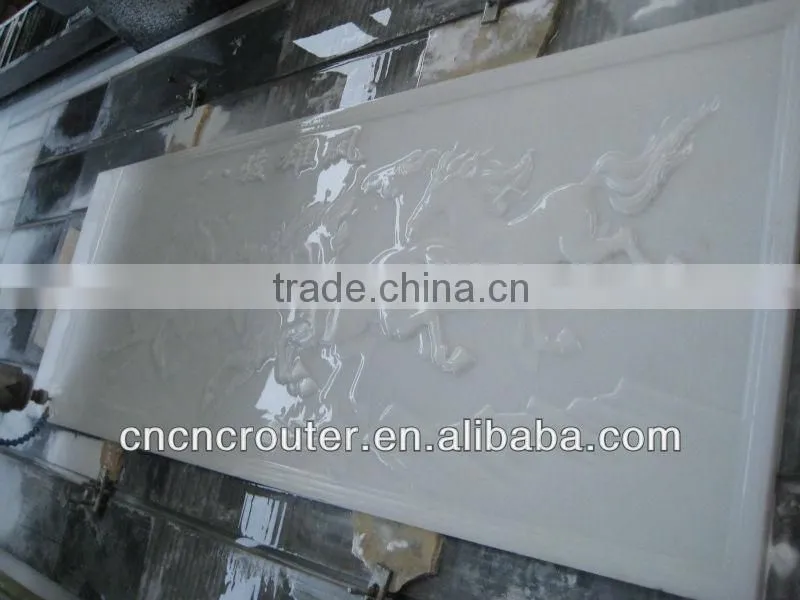

Sample:
Thank you for your kind attention!

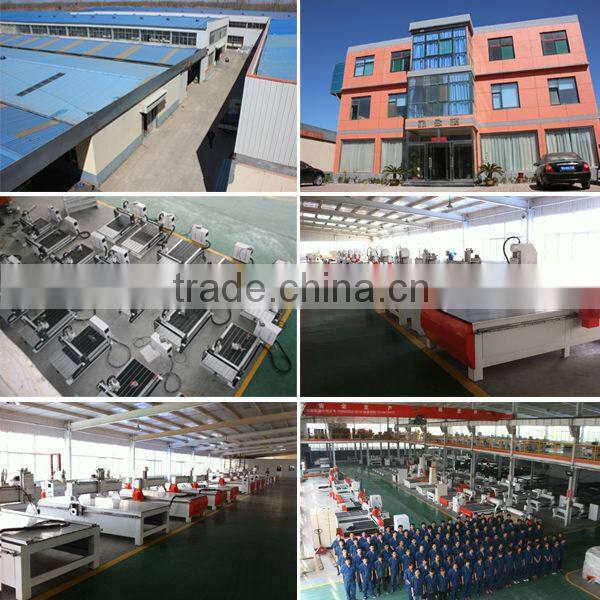

PRO Manufacture of CNC Router Machine Since 2003
