2 Heads Heavey Cnc Marble Granite Monuments Wood Stone Machine

2 Heads Heavey Cnc Marble Granite Monuments Wood Stone Machine thumbnail-1
2 Heads Heavey Cnc Marble Granite Monuments Wood Stone Machine thumbnail-2
2 Heads Heavey Cnc Marble Granite Monuments Wood Stone Machine thumbnail-3
2 Heads Heavey Cnc Marble Granite Monuments Wood Stone Machine photo-1
2 Heads Heavey Cnc Marble Granite Monuments Wood Stone Machine photo-2
2 Heads Heavey Cnc Marble Granite Monuments Wood Stone Machine photo-3
US$ 5,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Engraving Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Jinan Jinshengxing Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Engraving Machine
Use Granite
Place of Origin Shandong, China
Brand Name superstar
Model Number 9015/1325/1530
Voltage AC220V/380V-50HZ
Power(W) 2KW
Weight 1400Kg
Certification CE SGS ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

2 heads heavey cnc marble granite monuments wood  stone machine



Performance Features:


1.Three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .

2.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone
3.Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
4.Constant power spindle and motor,hightly cutting capability ,high efficiency.
5.Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
6.Double direction cutters cooling system can prolong the lifetime of using.
7.High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.





Technical parameter



Performance parameter

1325

X,Y Working area

1300mmx2500mm

Z Working area

250mm

Table size

1100mmx2000mm

Processing precision

0.05mm

Reposition precision

0.02mm

Table structure

steel

X,Y,Z structure

X,Y,Z ballscrew

Command

G CODE

Machine power

2KW

Max processing speed



6m/min



Max speed

8000mm/min

Working voltage

AC380V/50Hz

Spindle power

3KW

Spindle rotating speed

0-24000rpm/min

Drive motor

Stepper

Operation system

PCI CARD control

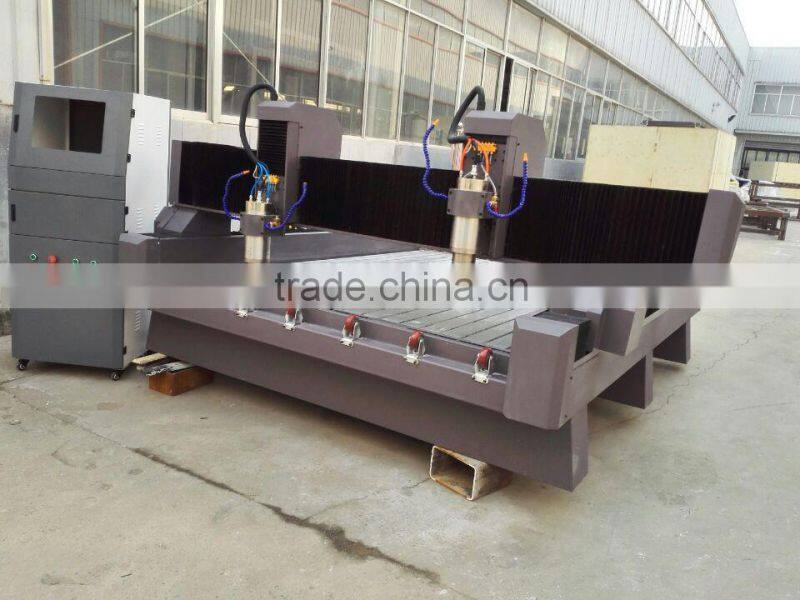

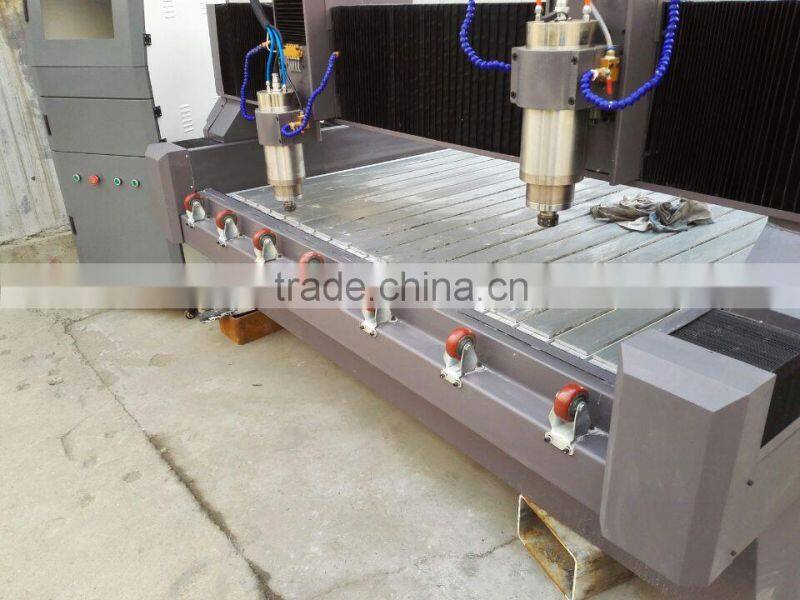

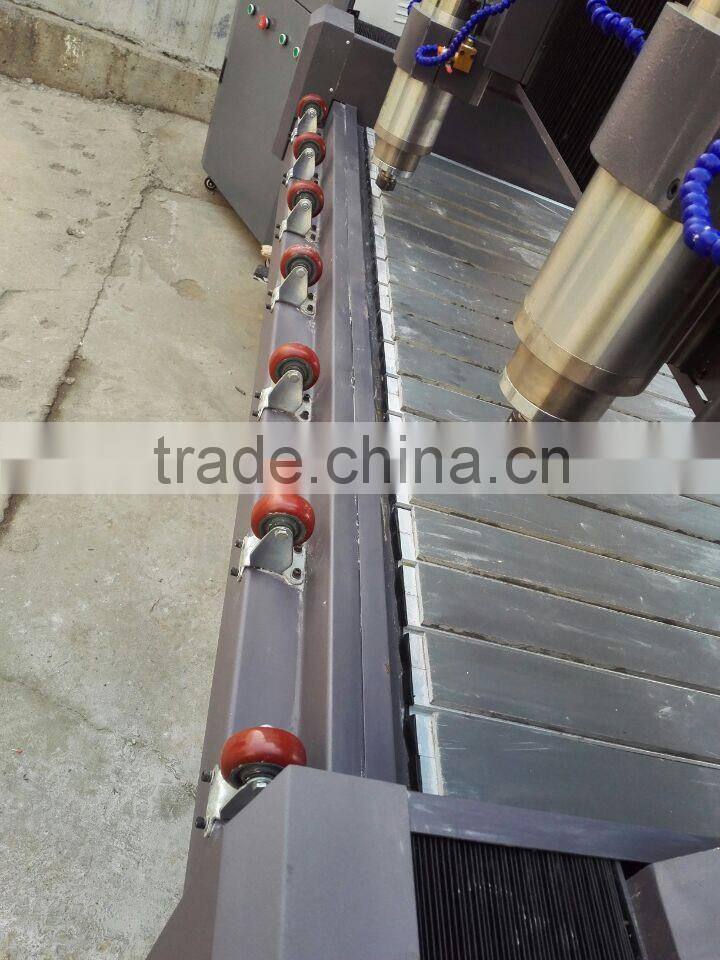

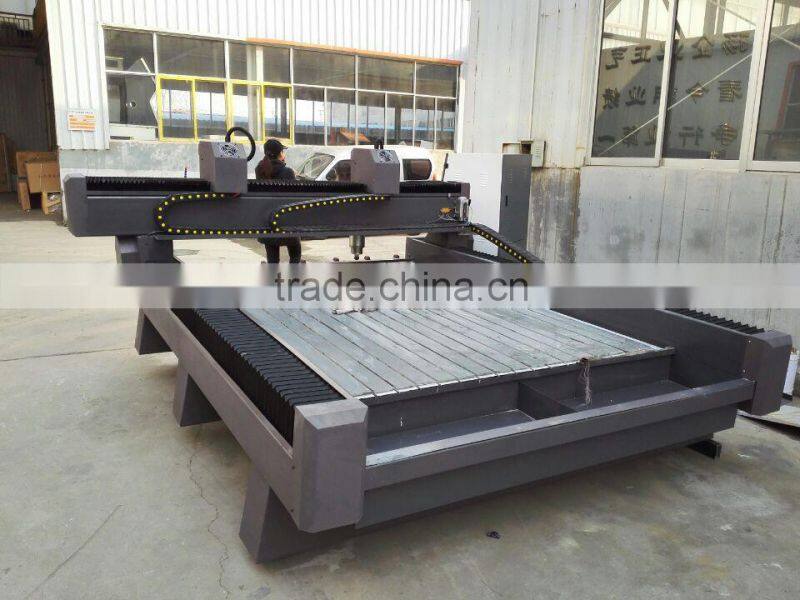

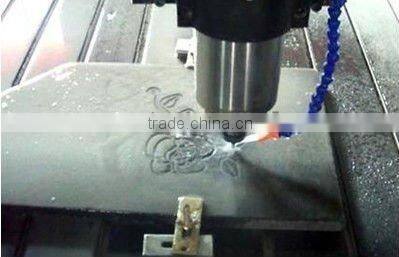

Product pictrues

 2 heads heavey cnc marble granite monuments wood stone machine2 heads heavey cnc marble granite monuments wood stone machine2 heads heavey cnc marble granite monuments wood stone machine2 heads heavey cnc marble granite monuments wood stone machine2 heads heavey cnc marble granite monuments wood stone machine



2 heads heavey cnc marble granite monuments wood stone machine2 heads heavey cnc marble granite monuments wood stone machine

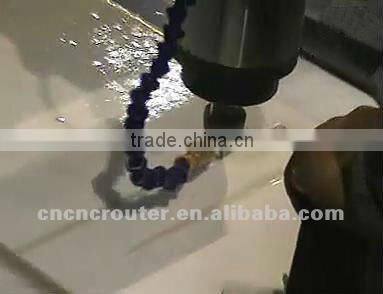

The samples

 2 heads heavey cnc marble granite monuments wood stone machine 2 heads heavey cnc marble granite monuments wood stone machine
2 heads heavey cnc marble granite monuments wood stone machine

Running cost

Payment:1.T/T 30% deposit before production, T/T balance70% against copy of B/L



Delivery: within 20 days after receiving 30% deposit



Warranty: 1 Year for machine, 3 months for laser tube



Package: strong fumigation-free wooden case to avoid damage during shipment

Our workshop

2 heads heavey cnc marble granite monuments wood stone machine2 heads heavey cnc marble granite monuments wood stone machine2 heads heavey cnc marble granite monuments wood stone machine

Packaging

2 heads heavey cnc marble granite monuments wood stone machine

Certifications

2 heads heavey cnc marble granite monuments wood stone machine
