Specifications
wood working cnc router:1.Linear system with 8 tools
cessing sped can reach 25m/min
3.with drilling blade and saw
4.CE
wood working cnc router CX1530 with linear type auto tool changing system (1500*3000mm)
Application:
Furniture industry, solid wood furniture, solid wood door, decorative materials, Cabinet door, Computer table, Mahjong table, panel furniture, office furniture, wooden speakers, wooden kitchen wares etc. Also applies to other non-metallic processing, automotive mold processing.
Feature:
1. All the electrical and mechanical components of his model are chosen from top international brands. Servo drive system made in Japan and original Italian spindle.
2. Round type ATC system, tool storage capacity of 8, tool exchanging time of 8 seconds., Processing speeds up to 25 m / min.
3. Imported square orbits, double-side four ball slider, smooth operation, accurate engraving.
4. New bed structure, control systems from Taiwan, tool storage is installed next to the Z axis or to the beam (optional).
5. Shooting drill: 7 sets of L-shaped 2x5 vertical drills, drill center distance of 32mm. A set of level drills on both X and Y axis. Saws with 90 degree turning.
6. Any size is available according to customers order such as 1530, 2040.
Technical Parameter:
X working area |
1500mm |
Y working area |
3000mm |
Z working area |
Max 300mm |
Table size |
1500*3000mm |
Traveling positioning accuracy |
Min 0.05mm |
Repositioning positioning accuracy |
Min 0.05mm |
Table surface |
By suction |
XYZ structure |
X Y gear wheel Z ball screw |
Max. rapid travel rate |
60000mm/min |
Max. working speed |
25000mm/min |
Spindle power motor |
6kw |
Spindle speed |
0-24000r/min |
Drive system |
Japan Servo |
Working voltage |
AC380V/50HZ |
Command language |
G-code |
Operating system |
Taiwan LNC system |
Produce time: 20-25 days after getting the deposit.
Payment: 1. TT payment----30% in advance, when you see the copy of BL pay the balance 70%.
2. L/C at sight.
Warranty: One Year.
Package: strong fumigation free wooden case to avoide damage during shipment
Machine picture:

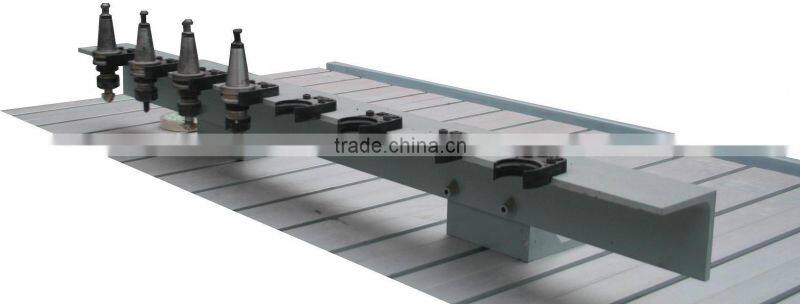

Linear ATC system with 8 tools:
