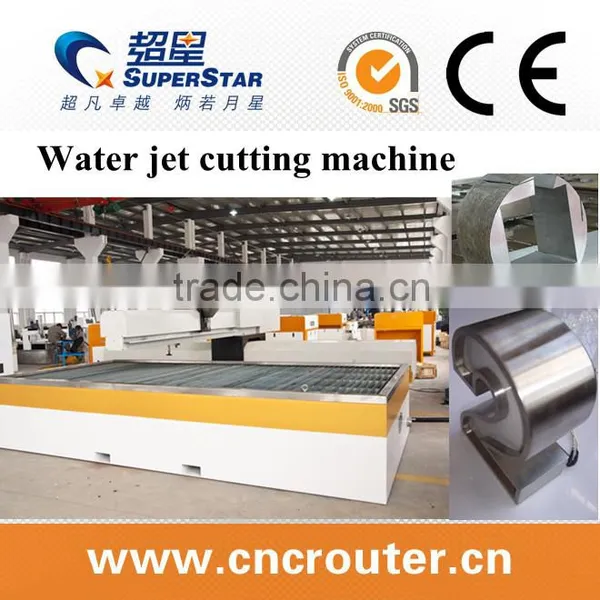

water jet cutting machine
Name |
Main function |
|
|
NC waterjet cutters platform |
Pic |
|
|
|
|
|
Range of work |
2.5*1.3m |
|
USD |
USD 29,704.9 FOB Qingdao Port 380MPA |
|
Lifting stroke of axle Z |
150mm |
|
Resetting accuracy |
+0.02mm |
|
Lead screw |
Imported from Taiwan to ensure high-precision, stable drive and durable in use for fabrication of parts. |
|
Lead rail |
Imported from Taiwan to ensure high-precision, stable drive and durable in use for fabrication of parts. |
|
shield |
ss |
|
Discretionary security protection |
1.Super travel limit protection function 2. Specicial design of the shield for better waterproof and sandproof, which makes the machine durable in use and graceful in appearance. |
Control system |
system |
windows XP, professional water cutting software: NC studio V9.30 |
|
NC computer configuration |
True colour LCD 19 inch(cpu: yonah, RAM: 2G, mainboard: GUANMING 945, HDD: 320G, DVD, USB...) |
|
High pressure generator |
Max discharging capacity |
3.0L/MIN |
|
Pressure control |
The operating pressure can be adjusted manually at will and the cutting speed can be adjusted at will. |
|
Filter system |
Fine three-layer filter system makes higher degree of purity of the water for cutting: 5μ m/1μ m/0.45μ m, which highly prolong the service life of all parts of the high-pressure system. |
|
Discretionary security protection system |
OP Power-off protection for low-pressure system
2. High-pressure safety vavle equipped on high-pressure system, which has self-destruction safety for over pressurization 3. Electronic display and OP safety 4. The hydraulic system is equipped with oil temperature detecting PD, which will auto alarm when the oil temperature exceeds 60°C 5, Thorough filter system and discretionary security protection system: double filter of the hydraulic system guarantees safety 6, The system has multiple alarm and safeguard, which will auto stop once there comes alarm. 7, The high-pressure pipe lines are solid cone seal, which is good in sealing and safe and reliable
8, Dynamic packing is equipped with high-pressure sealing ring made of imported high-strength nylon, which has service life of 400 hours. |
Samples:
Our factory:
Our team:
