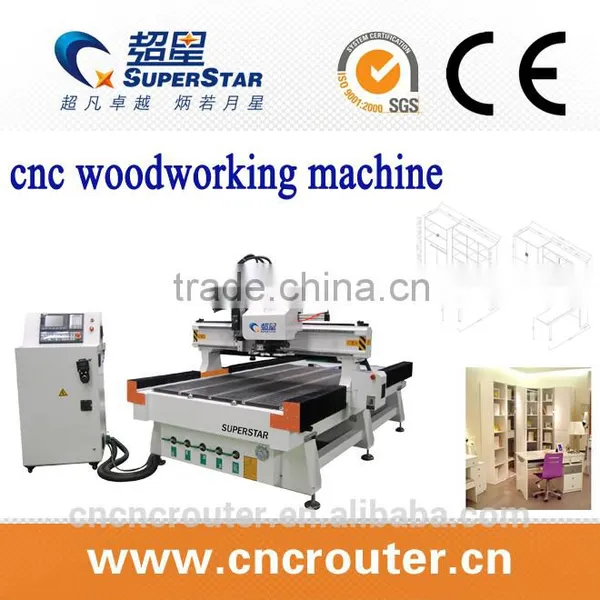

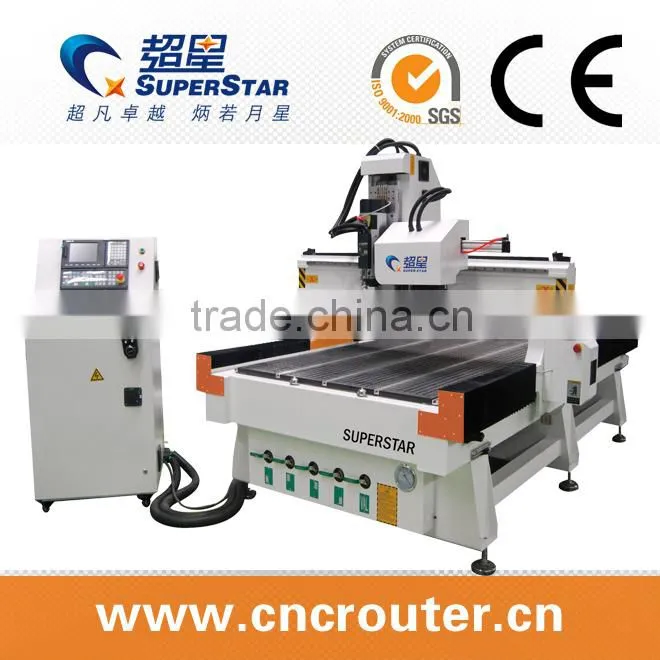

Auto tool changing 1325 9.0kw HSD spindle wood cutting machine with 4 axis
1.INTRODUCTION
♦ The CNC Router 1325-ATC with carousel Tool Magazine loaded with the spindle can change the tool automaically.The tool capacity is 8, tool change time is 8 seconds.
♦ 1325-ATC is used for 2D&3D engraving and cutting,carving .
2.APPLICATION 4 axis cnc design engraving machine
♦Furniture Industry: wood doors, cabinets, tables,chairs
♦ Advertising Industry:signage,logo,badges,display board,meeting sign board,billboard
♦ Artwork and Decoration Industry:wood crafts, gift box, jewelry box
♦ Electronic Industry:circuit board, insulation material
♦ Music Industry: musical instrments, loudspeaker box
♦ Soft Metal: aluminum, brass
3.ADVANTAGES 4 axis cnc design engraving machine
♦ Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
♦ Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw,
Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
♦ Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.
♦ Many optional configuration and OEM service available. According to your
requirement, different configurations will be offered.
4.PARAMETERS
4 axis cnc router engraver machine
Number |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300mmx2500mmx200mm |
2 |
Table Size |
1330mm×3040mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300 |
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot table) |
6 |
Frame |
Welded structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
4.5kw (Without Spindle) |
10 |
Max. Rapid Travel Rate |
45000mm/min |
11 |
Max. Working Speed |
30000mm/min |
12 |
Spindle Power |
9.0 kw |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Yaskawa servo motor |
15 |
Working Voltage |
AC 380V/50/60Hz,3PH |
16 |
Command Language |
G Code |
17 |
Operating System |
Syntec Control System |
18 |
Computer Interface |
Ethernet, CF Card |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER32 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3/UcancameV9 software (Option: Artcam software) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3300X2100X1980mm |
26 |
N.W. |
1450KG |
27 |
G.W. |
1670KG |
28 |
Optional Parts |
3.8KW HSD Auto Spindle |
Syntech Control System | ||
Dust Collector | ||
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
850W Yaskawa/800W Panasonic Servo motors |
Samples:
4 axis cnc design engraving machine
Jinan JINSHENGXING Machinery Manufacture Co., Ltd. was established in 2003, which is a professional company in researching, developing and manufacturing CNC routers. Our company devotes to carving CAD / CAM technology and CNC numerical control technology research and development. We have made great progress in the precise CNC router design theory and craft technology.
Certification:
Our team for you:
Further infos,pls do not hesitate to contact me,
hope to build cooperation with you.
24hours service,your inquiry will be replied very soon.
4 axis cnc design engraving machine
