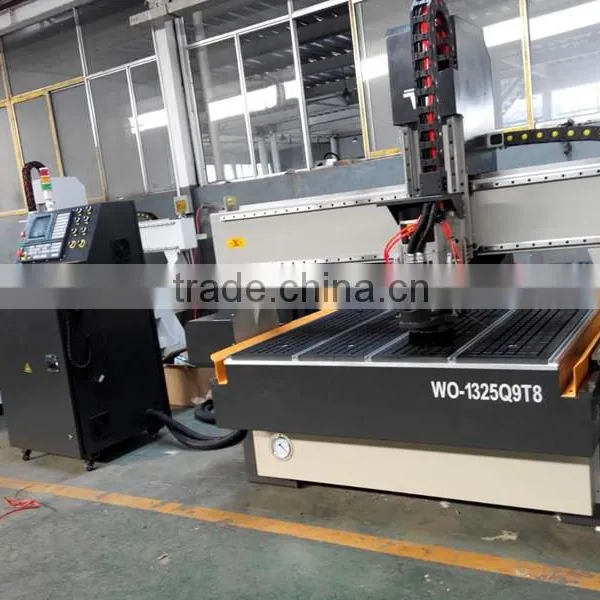

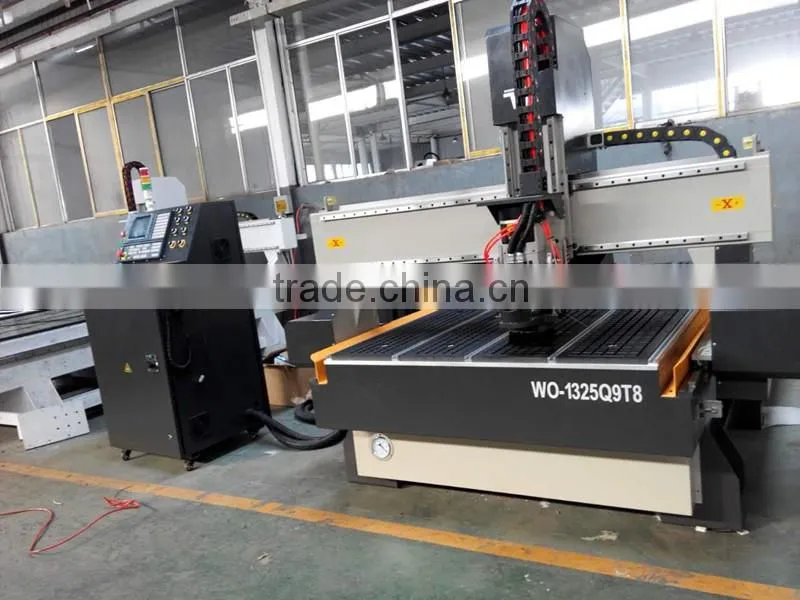

ATC woodworking cutting machine with eight tools holder and vacuum table
Description & Specifications: | ||
X Working Area |
1300mm |
|
Y Working Area |
2500mm |
|
Z Working Area |
250mm |
|
Table size |
1300x2500mm |
|
Traveling Positioning Accuracy |
±0.05mm |
|
Repositioning Positioning Accuracy |
±0.05mm |
|
Table Surface |
By suction |
|
X,Y ,Z Structure |
XY gear wheel, Z ball screw |
|
Max. Power Consumption(Without spindle) |
1.84KW |
|
Max. Rapid Travel Rate |
25000mm/min |
|
Max. Working Speed |
15000mm/min |
|
Spindle |
5.5kw water cooled ATC spindle |
|
Spindle Speed |
0-24000r/min |
|
Drive Motor |
KNSK servo |
|
Driver |
KNSK servo |
|
Command |
G-code*.u00*.mmg*.plt |
|
Working voltage |
AC380V/60Hz |
|
Control System |
NK200+hand wheel |
|
Guide rail |
25 Square rail (TAIWAN BRAND:TBI) |
|
Control cabinet |
Independent cabinet |
|
N.W./G.W. |
1700/1850KGS |
|
Packing Size |
3200*2150*1850mm |
|
Machine Parts:
wood furniture cnc machine
Company instruction:
Jinan Jinshengxing Machinery Manufacture Co., Ltd. Is specialized manufacturer of CNC ROUTER, woodworking machine, laser cutting machine,
stone engraving machine, advertising machine, cutting plotter, plasma cutting machine, metal mould/engraving machine, laser engraving machine etc.
Our products are exported to England, Spain, Brazil, Turkey, America, Asia, Middle East, South Africa etc. and have a good reputation in the industry.
As direct manufacturer, we can guarantee a competitive price and excellent quality. We treasure each chance to cooperate with you.
Our team:
1.We have 10 years producing experience, and keep R&D new product for market demand.
2.All workers have many years assembling experience, the are proficient with producing, so we can deliver the machine to you in time.
3.Sales persons and technical person are careful and patient, they can answer you any technical questions about machine, documents also will be prepared carefully and detailed.
4.we will provide you best after-sale service, every after-sales person has passport, if there is any big problem, we will send some person to your factory for maintenance in time.
However, most of our laser machines run well all over the world, there is no big problem by now. If there is small problem, we can solve it within 24 hours.
The acessory warehouse:
(plenty of parts supply to make sure the delivery)
The certification:
Further infos,pls do not hesitate to contact me,
hopeto build cooperation with you.24hours service,
your inquiry will be replied very soon.
