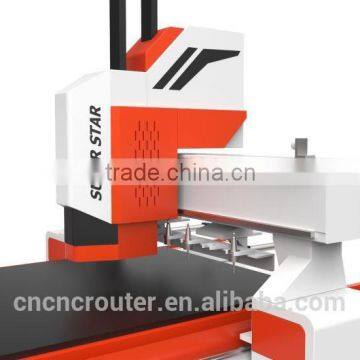

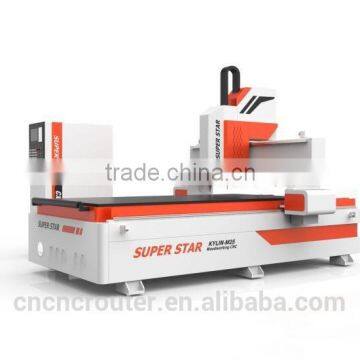

ATC Woodworking Machine KYLIN-M25
13800US$ FOB qingdao Port
Product parameters | |
Description & Specifications: | |
X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 250mm |
Table size | 1300x2500mm |
Traveling Positioning Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.05mm |
Table Surface | By suction |
X,Y ,Z Structure | XY gear wheel, Z ball screw |
Max. Power Consumption(Without spindle) | 1.84KW |
Max. Rapid Travel Rate | 25000mm/min |
Max. Working Speed | 15000mm/min |
Spindle | 9kw air cooled ATC spindle |
Spindle Speed | 0-18000r/min |
Drive Motor | China good brand servo |
Driver | China good brand servo |
Command | G-code*.u00*.mmg*.plt |
Working voltage | AC380V/60Hz |
Control System | KND control system |
Guide rail | 25 Square rail (TAIWAN BRAND:TBI) |
Control cabinet | Independent cabinet |
N.W./G.W. | 1700/1850KGS |
Packing Size | 3700*2200*1850mm |
Related productS
HTM25H Relevant Parts: | |||||
No. | Parts Name | Picture | Quantity | Remarks | |
1. | Spindle | 9kw air cooled ATC spindle | | 1 Set | |
2. | Drive Motor | servo motors | | 4 Set | |
3. | Frequency changer | XFT 11KW | | 1.Set | |
4. | Guide rail | 25 Square rail | | 6 Set | |
5. | X,Y axis | X gear wheel | | 3 Set | |
6. | Z axis | imported ball screw | | 1 Set | |
7. | Control systemControl system | KND controller | | 1 Set | With hand wheel |
8. | Control cabinet | Independent cabinet |
| 1 Set | |
9. | Independent cabinet | | 1 Set | ||
10. | Oil system | Auto oil | | 1 Set | |
11. | Dust collector | | 1 Set | ||
12. | Transformer | | 1 Set | ||
13. | Auto tool aligning system |
| 1 Set | ||
14. | Vacuum pump | | 1 Set | ||
About us
JinShengXing Machinery is a new technology enterprise which is specialized in developing manufacturing Mechanical CNC engraving machine,CNC laser machine and CNC plasma cutting machine. We supply global market with advanced high grade CNC equipments. Both of our outputs and sales is in front of the fields. In order to produce high-quality CNC machines,we choose the best materials. We use materials from many world-known companies. For example:spindle made in Italy Elte and HSD, servo-Japan, Beker oil-free vacuum pump from Germany,etc. Our CNC machines passed the CE certification, and our company has received the ISO9001. Because of the brilliant quality and service, our products are well sold in many cities of China, as well as exported abroad, for example to USA, England, France, Germany, Canada,Russia, India, Southeast Asia, Middle East and so on.Meanwhile we have agents in around eighteen countries.
