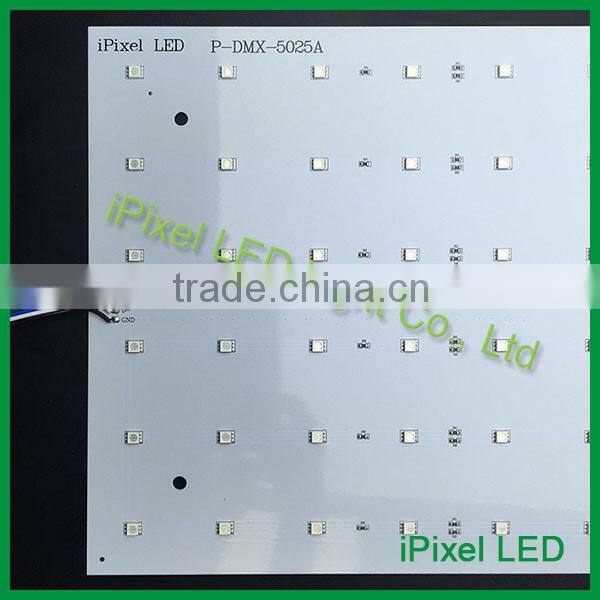

DMX led6x12 Dmx Blinder Led Light Moving Matrix Led
Usually the Dance floor module size are 500*500mm
or 600*600mm , we intended to design the same size of
dmx panel ,but the SMT machine (chip mounter) has limited
size of the board, so this module size is 500*250mm and
DC24V allows it link more pcs till Voltage drop,each matrix
has 3 DMX Channel which is one Pixel, (so you will need
to map 2 or 6 channel on each square dance floor module when you install 2 of our matrix)LED pitch is

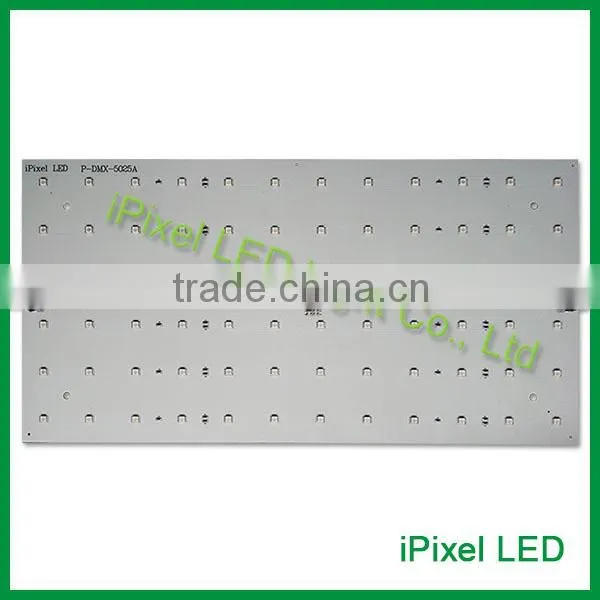

based on 6*12 LED SMD 5050 RGB. 41.66mm

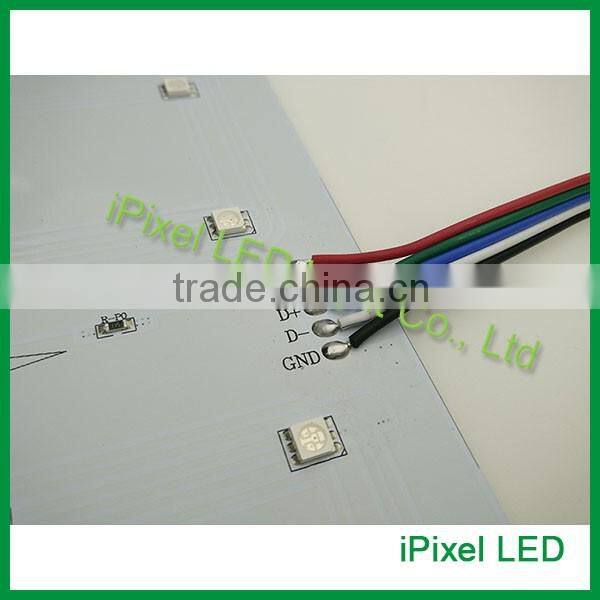

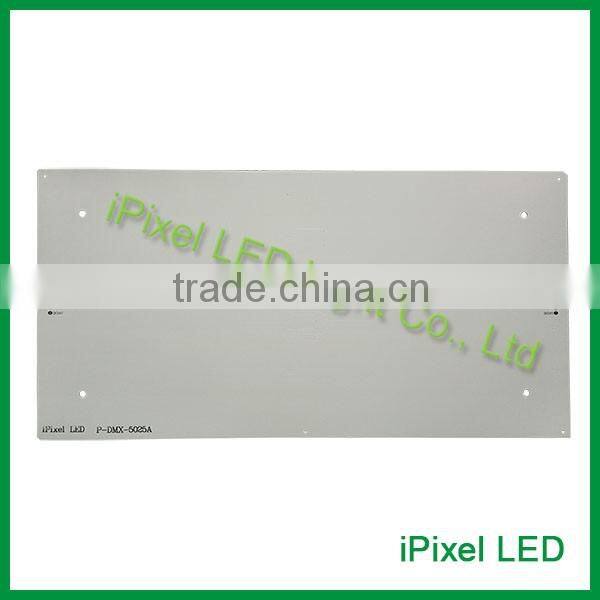

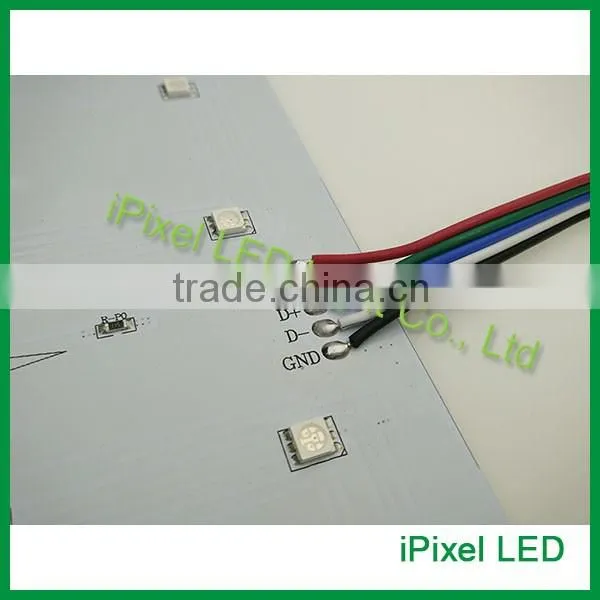

There are 4 pcs mounting hole close to each conner
of the matrix, and double sided soldering Pad so you can
hide the wire on button ,
this matrix is Manual coding, but
you can control it by any DMX512 controller/Artnet and
we recommend Madrix / Madmapper software
| Product Number | P-DMX-5025A |
| Light Source | 5050 RGB |
| Beam Angle | 120° |
| LED Quantity | 72leds/pcs |
| Size (mm) | L 500mm*W 250mm Thickness:1.5mm |
| Emitting Color | RGB |
| Operating Voltage | DC24V |
