Flexible LED Panel Addressable APA102c LED
US$ 8 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Model Number:
S0404APA102
Chip Material:
Other
Emitting Color:
Other, white
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen baoan port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ws2812 Flexible Matrix Led08*32US$ 45 - 60MOQ: 1 Piece -
AddressableAPA102 30leds Flexible Led StripUS$ 5.9 - 9.9MOQ: 1 Meter
-
Ws2811 High Bright DC12v Led Strip 60 Leds/mUS$ 6.9 - 9.9MOQ: 1 Meter
-
Addressable 32leds Ws2801non- Waterproof Led StripUS$ 8 - 9MOQ: 1 Piece
-
FlexiblePanel Addressable APA102c LEDUS$ 8 - 15MOQ: 1 Piece
Model Number
S0404APA102
Chip Material
Other
Emitting Color
Other, white
Color Temperature
Changeable
Operating Temperature(℃)
-40, 40
Storage Temperature(℃)
-10, 50
Place of Origin
Guangdong, China
Brand Name
ipixel LED
Certification
CE
Product Description

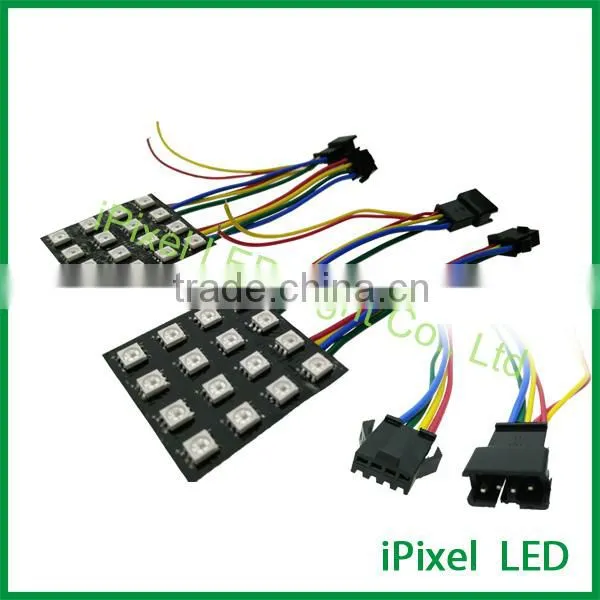

-Individually addressable RGB LEDs (4*4 LEDs)
-24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
-Additional color-independent brightness control (5-bit PWM);
32 brightness steps per pixel
-SPI control interface
-5 V operating voltage
-Each LED Matrix draws approximately 8A at full brightness
-40 mm width (4 LEDs) or 40 mm width (4LEDs) Pitch : P10
-Flexible,bendable IP20 rating
-Black strip color
-Power/data connectors on both strip ends for easy chaining
pictures
parameter
| Light source | APA102 |
| Beam angel | 140 deg |
| led quantity | 256 leds |
| wattage | 75w |
| pixel resolution | 160*160mm |
| voltage | DC5v |
| Storage Temperature | -10-50 |
details
