Specifications
1.Factory Established in 19912.ISO9001
3.One Year Product Warranty
4.CNC Angle processing line

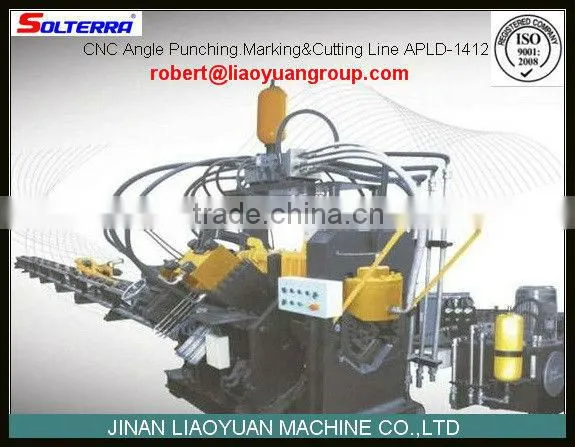

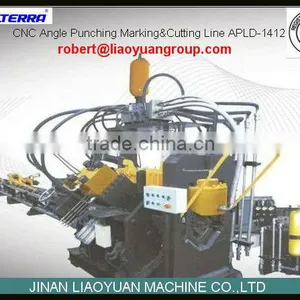

High Quality angle iron production machine for Iron towers APLD-1412
This machine is popular for processing Iron towers
Detailed Product Information
Automatic CNC Angle Line for Marking,Punching,Cutting -- CNC Angle Line -- cnc angle machine
1.CNC Angle Marking Machine for Angle steel
2.Professional Automatic equipments for electric power and telecommunication angle tower.
3.ISO9001
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for Iron tower, steel structure and Win-door equipment
Product Details:
CNC Angle Marking, Punching&Cutting Line are detailed as follow:
Super quality! Lowest price!! Best price!!!
Features
1. There are three sets of punching die-stations on each side. All the holes can be finished in one time.
2 .Single-blade Cutting
3.The machining process is numerical control and operation is very convenient. It can fulfill automation, high precision, multi-species and high quantify production.
4. The upper computer adopts English interface which is easy to operate. It can accept certain processing program which is made from special software. And also you can program manually.
Advantages
1. There are three sets of punching die-station on each side which can install three kinds of punches with deferent diameters. Three sets of punching die-station can move altogether controlled by CNC to changes the punching stadia.
2. Single-blade cutting ensure smooth cutting section and saves material.
3. Marking unit adopt closed frame with good rigidity. Four sets of character boxes are fixed on the marking unit which can be selected by program. Marking stadia can be set at will.
4. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
5. Hydraulic system mainly serves for punching, cutting, marking, pressing and transposition of character boxes.
6. Control system consists of upper computer, CNC system, servo motor, PLC and outside detection switch etc. Proceeding program can be generated automatically as long as operator inputs the dimensions of workpiece. It can also accept certain processing which is made from special software. The program can be stored, selected, displayed and communicated as per the workpiece No. .
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE (12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical Service:
The seller will supply free online technical service, free training program for the buyer’s staff, on-site installation.
Remarks Noted:
Shipping Terms: FOB (Free on Board) From Qingdao, China to___
Package: Unfumigated wooden case, covered with winding wire film, Customerized Package is also available. Please be safe that the Product will be packed carefully.
Main Technical Specifications
Model |
APLD-1412 |
Angle size(mm) |
56 x 56 x 4~140 x 140 x 12(Q420) |
Max. workpiece length(m) |
12 |
Max. punching capability(DxT mm) |
Φ25.5 x 12 |
Nominal punching force(kN) |
960 |
Nominal marking force(kN) |
1040 |
Nominal cutting force(kN) |
1800 |
No. of character group(piece) |
4 |
No. of character in each character group(piece) |
15 |
Character size(mm) |
14 x 10 x 19 |
Range of stadia(mm) |
20~170(Stepless) |
No. of punch on each side(piece) |
3 |
Max. feeding speed |
40 |
No. of CNC axis(piece) |
3 |
Overall size(m) |
26 x 7 x 3 |
Total power(kW) |
31.4 |
Machine weight(t) |
(Approx.)16 |
The Main Parts of the machine
