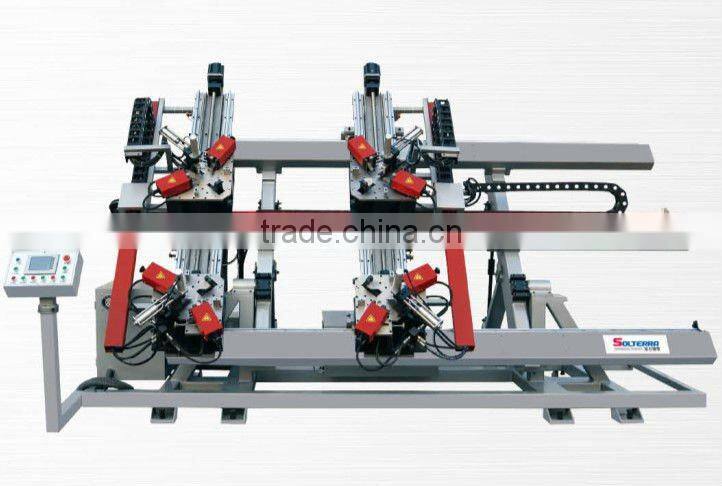

Aluminum corner crimping Machine ZJ4-CNC-120
Jinan Liaoyuan Machine Co., Ltd, as one of earliest enterprises, With more than 20 years’ development, has developed into a integrated High-tech enterprises. And we are dedicated to produce window and door equipment.. The profile can be PVC, uPVC and aluminum
Brief Product Information
Four-corner combining machine for PVC Win-Door and curtain walls
High Quality Automatic Welding Machine
Window making machine for Aluminum Profile
ISO9001:2008
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for PVC windows and doors.
Product Details:
Aluminum corner crimping Machine ZJ4-CNC-120 detailed informaton are as followed:
Super quality! Lowest price!! Best price!!!
Equipment Features
1.Used for corner punching combination of aluminum window and door,four corners combining at one time.
2.Clamping device can auto move forward/backward,make the operation be more convenient.
3.The frame is specially jointed by steel with high quality and special processed.
4.Imported CNC system, features high quality,high speed and accuracy.
5.The movement control function of the servo system can auto-press the four corners,ensuring the processing effect.
6.One time corner crimping can control the seam and plane,make the quality foresight.
7.The corner-crimping blade can be adjusted according to the requirement of different profile.
8.The seamless connection of control system and servo system,greatly improved the accuracy.
Main specification and technical parameter
Voltage |
380V/220V |
Rating power |
7.5Kw |
Rating oil pressure |
15Mpa |
Air consumption pressure |
0.5-0.8 Mpa |
Air consumption |
0.45L once |
Capability of oil box |
60L |
Corner crimping casing movement distance |
0-50mm |
Max frame diamension |
1800mm×3000m |
Min frame diamension |
480mm×480mm |
Profile width |
93mm |
Tolerance of diagonal |
≤1mm |
Tolerance of connection seam |
≤0.15mm |
Overall dimension(L×W×H) |
4700mm×2200mm×2500mm |
Weight |
2500Kg |
Specific Advantages:
1. India Branch Office.
2. Fully ISO Quality Management System Certificate Approved.
3. One year Product Warranty, with professional technician and good after-sales service.
4. Factory established in 1991, more than 20 years' experience in servicing the Win-Door&Curtain wall machinery.
5. Product from Factory, High Quality and competitive price.
6. OEM Service offered, Design Service offered and Buyer label Offered.
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE (12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical Service:
The seller will supply free online technical service, free training program for the buyer’s staff, on-site installation.
