35x35mm injection led module 5050 rgb LED module

Name: 35x35mm injection led module 5050 rgb LED module
Brand: iPixel LED
Availability: InStock

FOB Price

US$ 0.7 - 0.9 / Chain

1 Chain(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	M35502801	Chip Material	InGaN
Emitting Color	Other, Addressable	Luminous Intensity	5000-6000mcd
Luminous Flux(lm)	R20, G40, B17 lm	Optical Attenuation(%)	2
Power	Other, 0.96W	Power Dissipation	1W
Color Rendering Index(Ra)	80	Color Temperature	Addressable
Operating Temperature(℃)	-30, 50	Storage Temperature(℃)	-40, 60
Place of Origin	Guangdong, China	Brand Name	iPixel LED
Certification	CE

Product Description

35x35mm injection led module 5050 rgb LED module

About Products

1. Each dot is digitally controlled, per PCS led module with 1IC and 4LEDs.

2. All of the LEDs are controlled at once so you cannot have one pixel with

the three LEDs different colors.

3. The pixels use 4 x 5050 RGB LEDs, with a 120 degree beam width.

4. RGB Pixels are digitally-controllable lights, you can make any color, and animate.

5. The pixels are connected by a 4-conductor cable. +12VDC, ground, data and clock.

6. You can easily cut the strand or attach more onto the end.

7. The total max brightness of all LEDs is about 8000mcd.

8. The LEDs are constant-current driven so you'll have even colors through-out the strand

as long as you have a stable 12V supply.

9. Each strand has 20 pixels in series usually! Each strand has two JST SM 3-pin connectors

so you can connect multiple strands in a row, as many as you wish, just watch for how

much current they want.

10. Brand: iPixel LED.

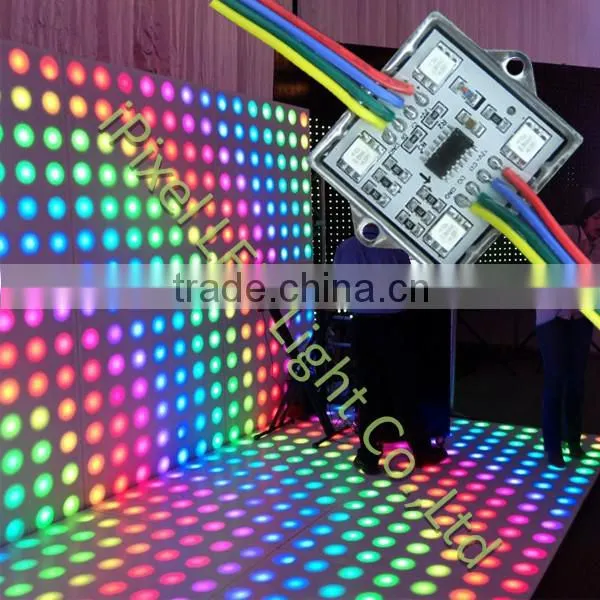

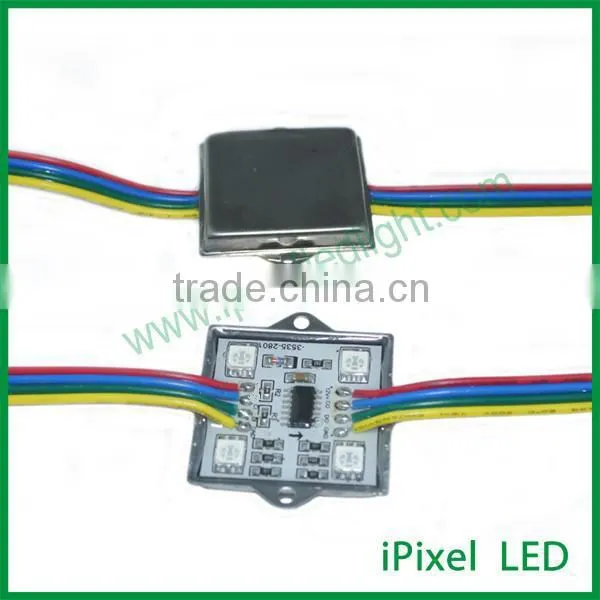

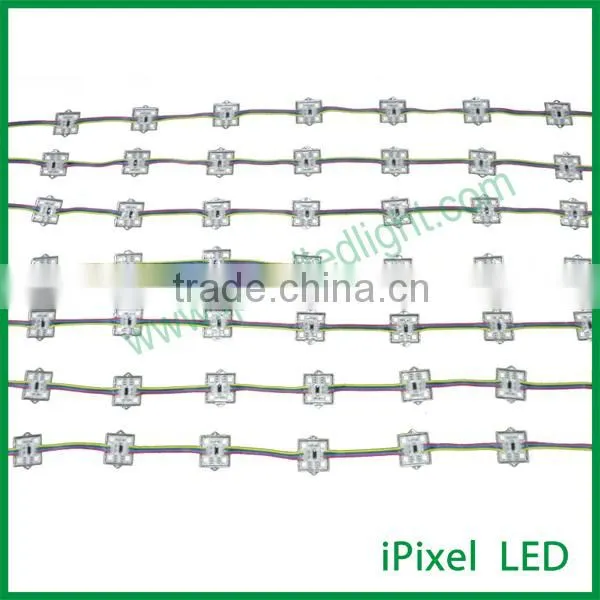

Detail Pictures

35mm square led modules

Showing picture:

Specification

Product Name	4LEDs/pcs ws2801 square led module
Model Number	M35502801
LED Chip	Epistar SMD5050 RGB LED chip
IC Chip	WS2801
LED Qty	4LEDs/pcs
Voltage	DC12V
Power(/pcs)	0.96W/pcs
IP Rate	IP65
Shell Size	35mm(L) x 35mm(W)
Shell Material	Mental case
Cable length	8cm usually, also can be customized
Signal Wires	DAT, CLK, 12V+, GND-
Drive Pattern	Constant Voltage drive
Certification	CE, RoHS
Warranty	2 Years
