Plastic welding machine Four Head Welding Machine SHZ4-150x4500

Specifications

India Branch office
Welding machine for windows and doors
ISO&CE

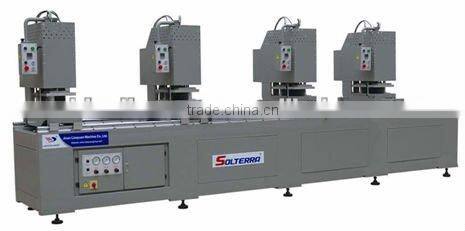

SHZ4-150×4500 Four Head Welding Machine

Features and functions:

1.  Adopted high accuracy Round guide linear motion pair. Precise parts and strictly assembling process makes it has high stability.

2.  Cylinders,  solenoid  valves,  PLC  and  low-voltage  electric  components  and pneumatic components are all selected strictly, which ensured high reliability.

3.  Rigid structure is adopted to the profile positioning system, which could strictly guarantee welding loss and high welding accuracy.



Technical parameter:

Operation Air Pressure                                                0.5-0.8Mpa

Air consumption                                                           200 L/min

Input Voltage                                                               220V 50Hz

Input Power                                                                 4.5kw

Welding Height                                                           20-140mm

Welding width                                                             120mm

Welding Range                                                         400-4500mm

Overall Dimension                                                       5 400×1600×1700mm

Weight                                                                            1600kg
