48SMD LEDs, IP68 DC24V Digital DMX Tube Led

48SMD LEDs, IP68 DC24V Digital DMX Tube Led thumbnail-1
48SMD LEDs, IP68 DC24V Digital DMX Tube Led thumbnail-2

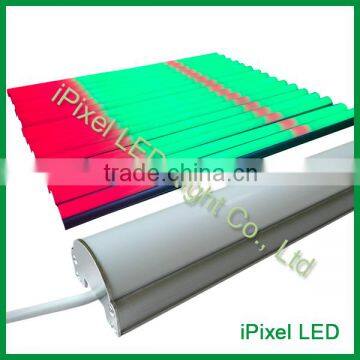

48SMD LEDs, IP68 DC24V Digital DMX Tube Led photo-1

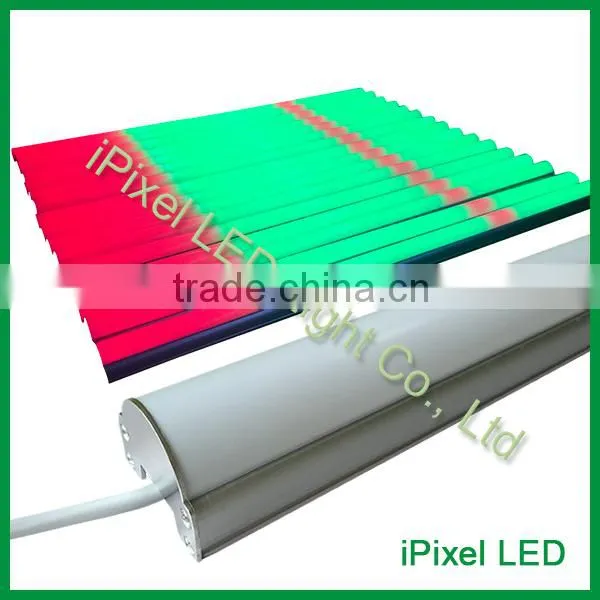

48SMD LEDs, IP68 DC24V Digital DMX Tube Led photo-2
US$ 15 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050 RGB LEDs
Type:
LED Bar Lights
Input Voltage(V):
DC24V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050 RGB LEDs
Type LED Bar Lights
Input Voltage(V) DC24V
Lamp Power 19
Lamp Luminous Flux(lm) 20
Color Temperature(CCT) other
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE, EMC
Emitting Color Other, changeable, RGB
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number B4808V24

48SMD LEDs, IP68 DC24V digital DMX tube led





DETAILS:

This DMX Control LED Tube designed by Aluminum case with a Milky

-white PC lens on top of the profile, but we also offer clear lens
-The whole tube had 8 Pixel which is 24ch DMX address
48pcs supper bright Epistar SMD RGB LED
-each tube included 2pcs Aluminum clips,but without screw
the clip can not change the angle after install to the wall

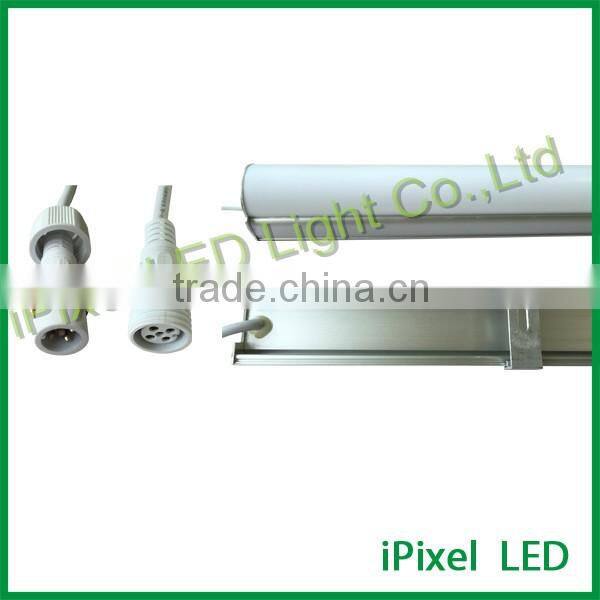

-every dmx tube attached a pair of waterproof 5Pin connector
output from backside of profile, you can hide it with the power wire
-the length of connector 20cm,5Pin 20AWG copper wire in white PVC

-the tube didn't attach any T type (3 way) connectors for power injection
it request to purchase seperately and we recommend every 5M tube supply power



FEATURE:

Model B4808V24
Size/m 1000*40mm
Voltage DC24V
Power  19W
Protocol DMX512
Address  24CH
LED Qty 48pcs 5050 RGB
Coding Manually
Pixel 8pixels
IP Rate IP65
Connectors 5pin waterproof connectors
Certification CE, RoHS

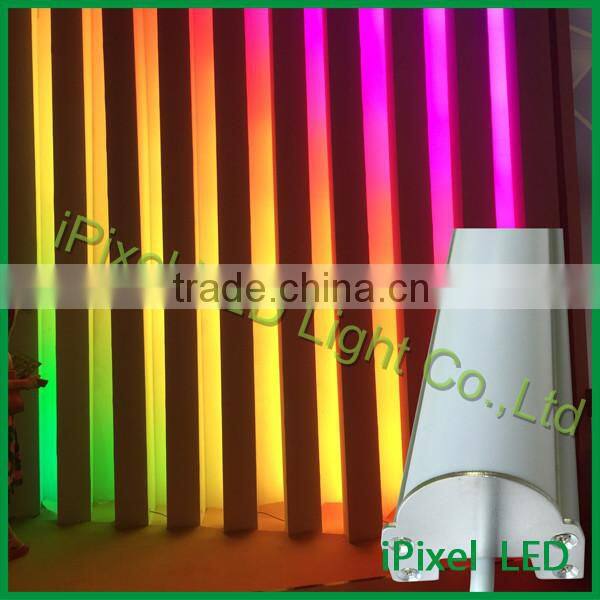

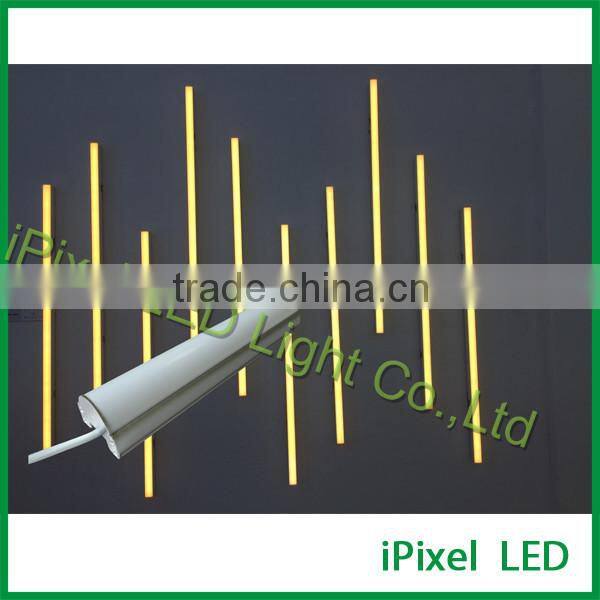

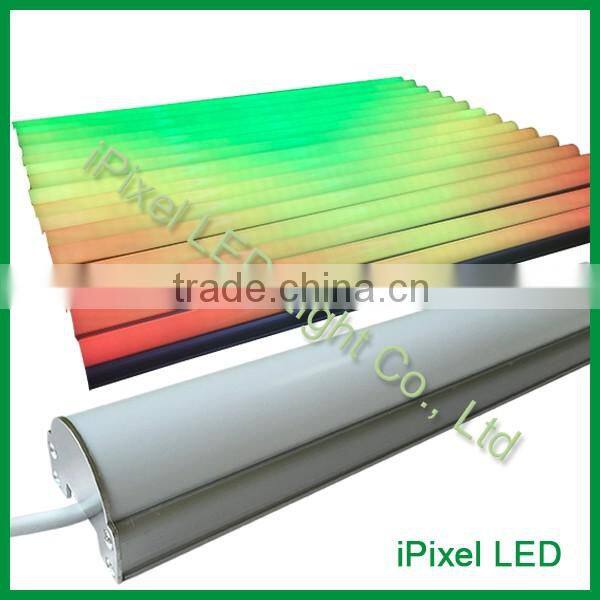

PICTURES:

48SMD LEDs, IP68 DC24V digital DMX tube led48SMD LEDs, IP68 DC24V digital DMX tube led48SMD LEDs, IP68 DC24V digital DMX tube led

48SMD LEDs, IP68 DC24V digital DMX tube led48SMD LEDs, IP68 DC24V digital DMX tube led

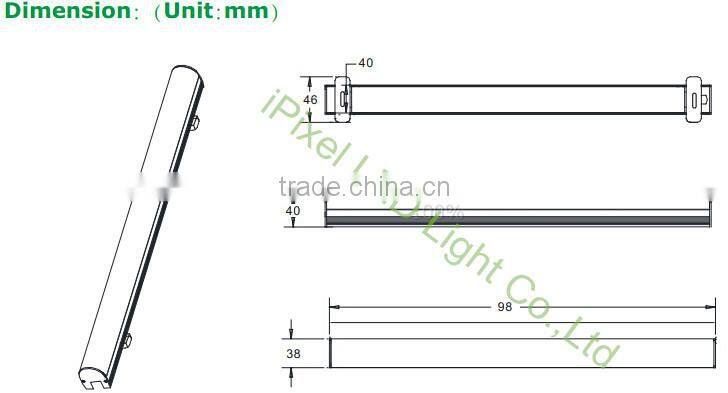

Drawing









Madrix compatiable DMX LED controller





Address coder

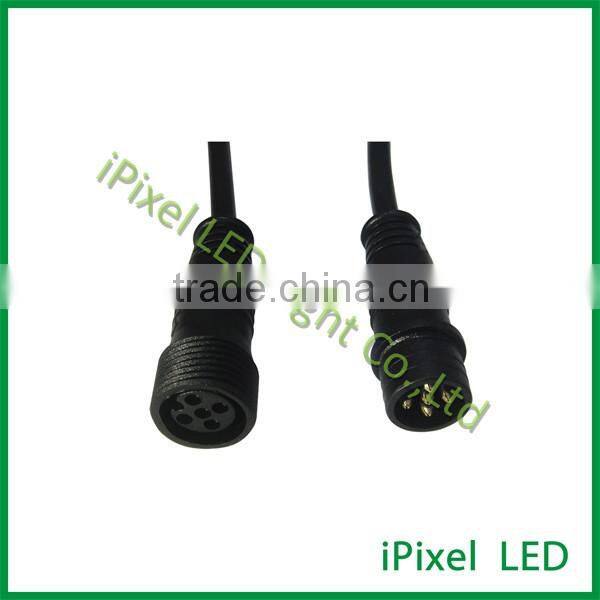

Connector

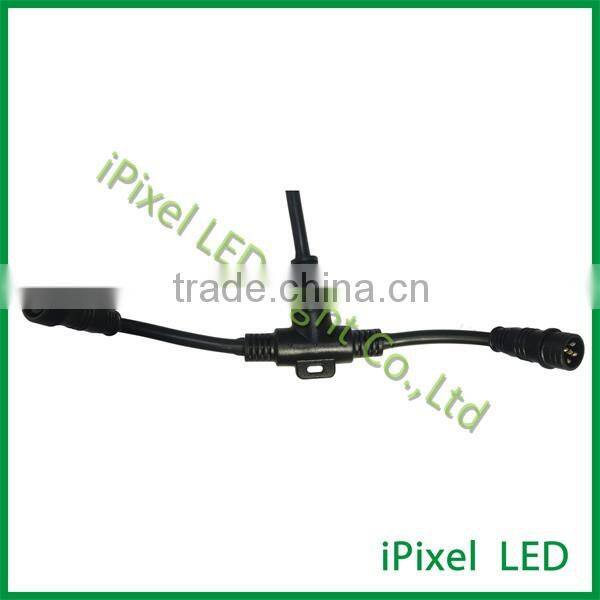

T type connector
