apa102 Addressable smd5050 rgb intelligent led strip light

FOB Price

USD $20 - $23 / Roll

1 Roll(Min.Order)

Supply Ability 3000 Meter / Meters per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Epistar 5050 RGB LED Chip	Type	Flex LED Strips
Input Voltage(V)	DC5V	Lamp Power	34.56W/M
Lamp Luminous Flux(lm)	100	Color Temperature(CCT)	Full color
Working Temperature(℃)	-10, 40	Working Lifetime(Hour)	50000
Lamp Body Material	PVC	Certification	CE
Emitting Color	Other, Changeable, addressable	Place of Origin	Guangdong, China
Brand Name	iPixel LED	Model Number	S144102

Product Description

apa102 Addressable smd5050 rgb intelligent led strip

About Products

1. Addressable full color led strips ——APA102C IC built-in.

2. Individually control —— 1 IC & I LED chip.

3. Standard Reel Length: 1meter/roll, also can be customized.

4. Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.

you can cut this stuff pretty easily with wire cutters, there are cut-lines

every 0.65''/1.7cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.

5. Power supply: You must use a 5V DC power supply to power this strip,

do not use higher than 6V or you can destroy the entire strip.

6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;

waterproof: screw+silicon clip, or 3M adhesive back side.

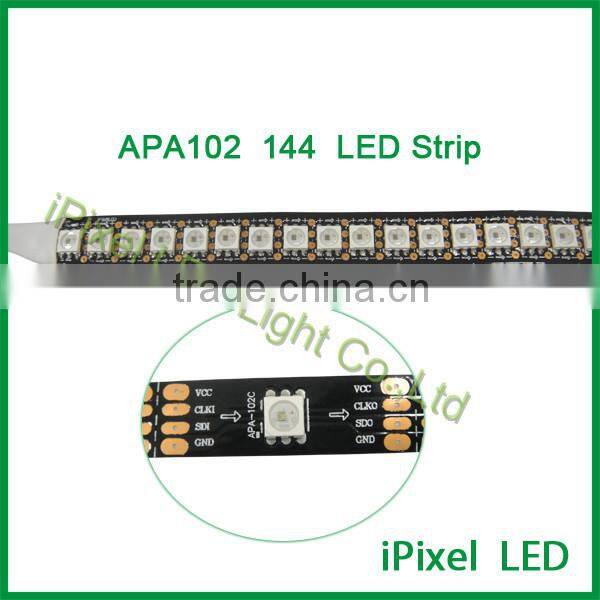

7. Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.

these LEDs have 2 wires (input and output) for sending data - one clock pin and one data pin. That means you need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor speed or type to control these strips, and you don't have to worry about being careful with the timing.

8. Type:This is the 144 LED-per-meter version, We have 30 LED/m, 60 LED/m

Waterproof——white PCB; Non-waterproof ——white PCB;
Waterproof——black PCB; Non-waterproof——black PCB

9. LED Brightness: Red ~600mcd, Green ~500mcd, Blue ~150mcd

10. Brand: iPxel LED

Detail Pictures

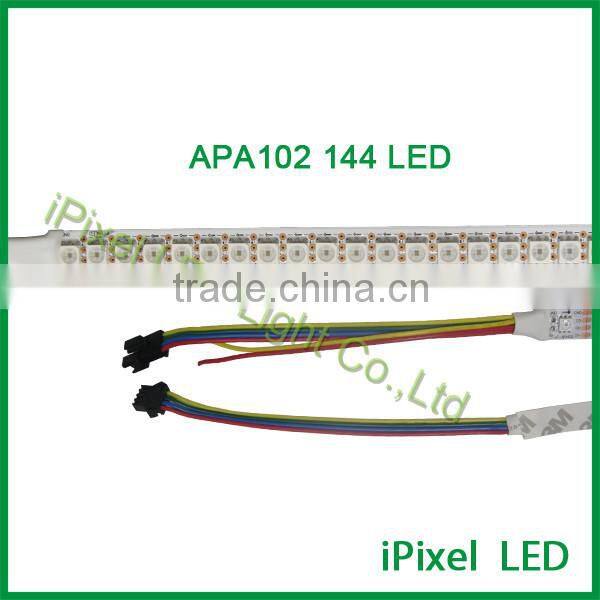

APA102 144leds/m Pixel Digital Led Strip ---- White PCB

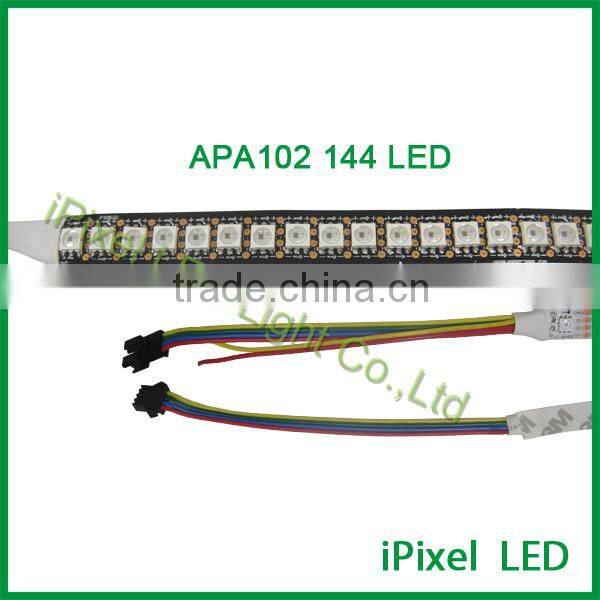

APA102 144leds/m Pixel Digital Led Strip ---- Black PCB

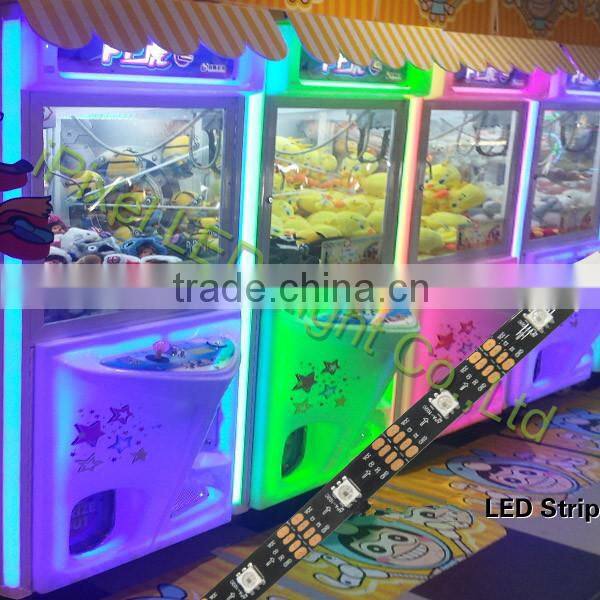

Lightening picture:

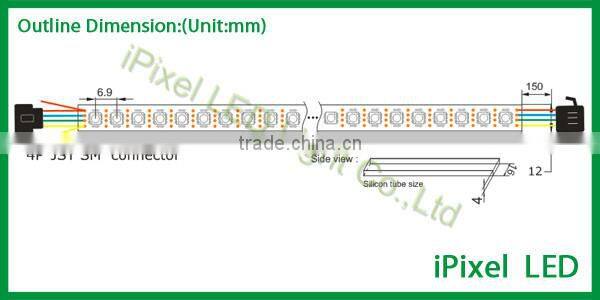

Outline Dimension

Specification

Product Name	APA102 144LEDs/m flex led strip
Model Number	S144102
Led Qty	144leds/m
Voltage(V)	DC5V
Power	34.56W/M
IC Chip	APA102 IC built in 5050 RGB LED
IP Rate	IP20, IP65(Silicon-tube waterproof)
PCB Color	Black,White
PCB Width	12mm
LED Singal	SPI
View Angle	160°
Warranty	2 years
