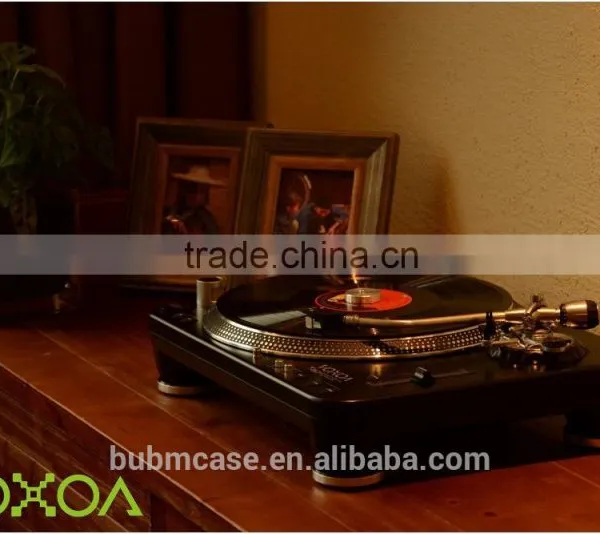

VOXOA DJ Turntable T80 Professional High Torque Direct Drive Stereo Turntable

PART NAME AND FUNCTIONS

1. Start/Stop button
Press this button to start or stop the platter.
2. Strobe dots
The dots around the edge of the platter are used in conjunction with the light located inside the power.
While the platter is in rotation, the dots help to indicate the speed of rotation. The speed is lower than the

displayed speed (33,45,78) when the dots are flowing to the right. It is higher than the displayed
speed (33,45,78) when the dots are flowing to the left. When the strobe is stopped, the platter is rotating
at the displayed speed.
3. Power ON/OFF
On - Rotate Right. Off - Rotate Left.
4 .Platter revolution speeds
33 rpm – Press 33
45 rpm – Press 45
78 rpm – Press 33 and 45 buttons simultaneously.
To return to 33 or 45-rpm play mode, just press the desired button.
5. Target light
Insert target light to the deck and it will light up.
6. Start
Rotate the button to adjust stop mode enter normal
play at your desired start time within 0.2~6 sec.
7. Brake
Rotate the button to adjust normal play enter stop
mode at your desired brake time within 0.2~6 sec.
8. Reverse
This button is used to reverse the direction of the
platter rotation.
9. + /-10% button
Press the button to switch to 10% pitch and light
on.
10. - + /-20% button
Press the button to switch to 20% pitch and light on. Press +/-10% and +/-20% buttons
simultaneously will be lit up and switch to +/-50%.
11. Quartz button
This button is used to turn the pitch function on and off. When the Quartz function is activated the
platter will hold the RPMs at 0% pitch, regardless of the Pitch Slider. When the quartz function is inactive
the Pitch Slider may be used to manipulate platter speed.
12. Pitch slider
Use this to change the speed of the platter when the PITCH indicator is lit.
13. Counterweight
Adjustment creates the proper downward pressure of the stylus to the record. Attach now by sliding the
counterweight onto the rear of the tone arm. Twist it lightly and it will screw onto the rear shaft of the
tone arm.

14. Phono output
This is the standard analog output (RCA jacks), which can be connected to phono input on any DJ mixer.
15. GND
Ground wire connection post.
16. Power cord connector
Used to connect the included power cord.
17. Stylus headshell
The included headshell is used to connect your stylus with the tone arm.
18. Headshell locking nut
Attach headshell by inserting into the front end of the tone arm, then turn the locking nut clockwise with the head shell firmly held horizontally.

19. S-shaped tonearm
20. Tonearm lift
This elevates the tone arm above the record surface.
21. Tonearm clamp and rest
Use this rest for the tone arm and clamp it in position during transportation.
22. Tonearm lever
Controls the up and down action of the tone arm lift.
23. Anti-Skate control
This applies inward force to the tone arm so it doesn't skip outward across
the record due to the centrifugal force of the record spinning. Cartridge
manufacturers usually specify the proper setting of this.
